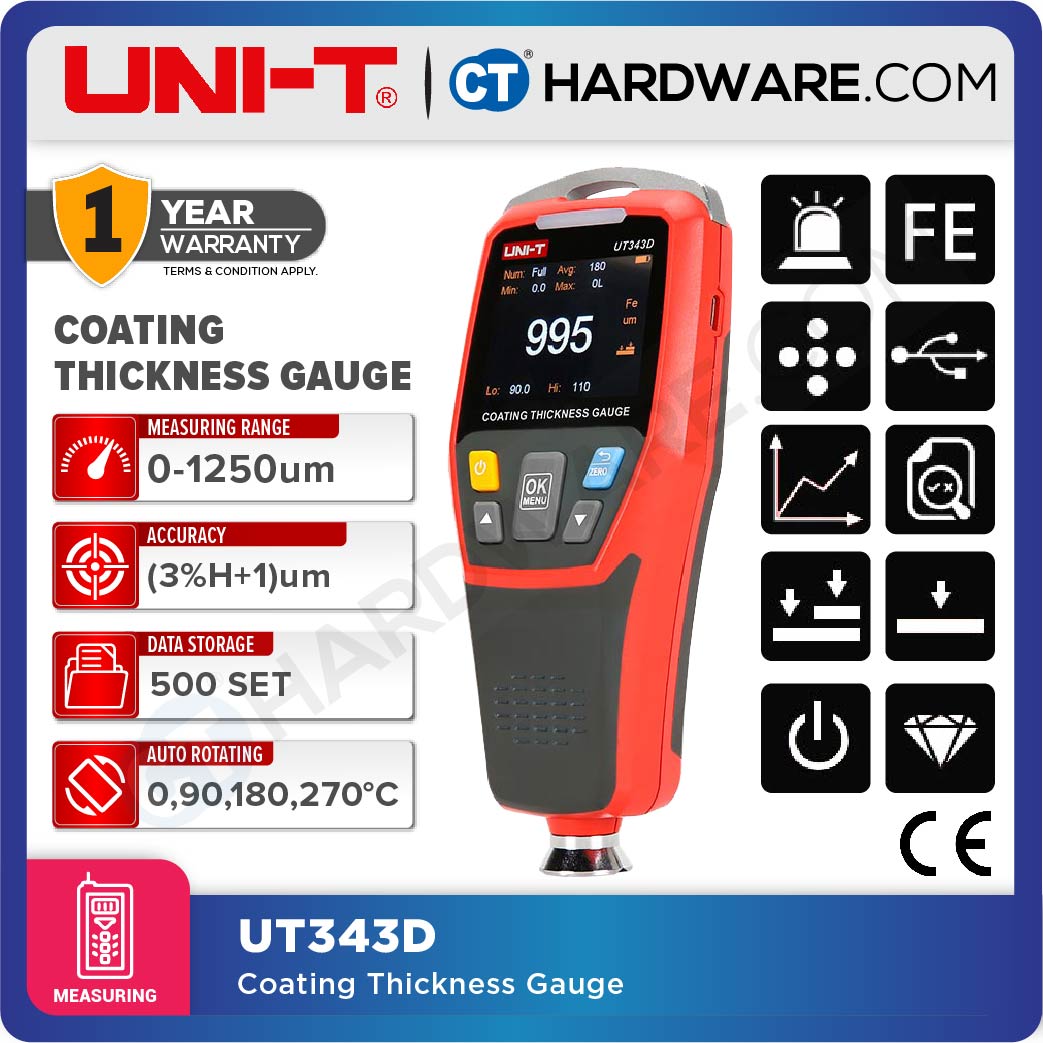

UNI-T UT343D COATING THICKNESS GAUGE 1250UM | 3V BATTERY
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We currently ship to Malaysia. International shipping is available by request only, please contact us for inquiry.
Standard shipping normally takes 3-5 days. Express shipping within Klang Valley is available for an additional charge, please contact us if you need it.
Returning an item
Returning an item
If you are not completely satisfied with your purchase, please contact our customer service team. Please note that not all items are returnable, check our return policy page for details.
Features:

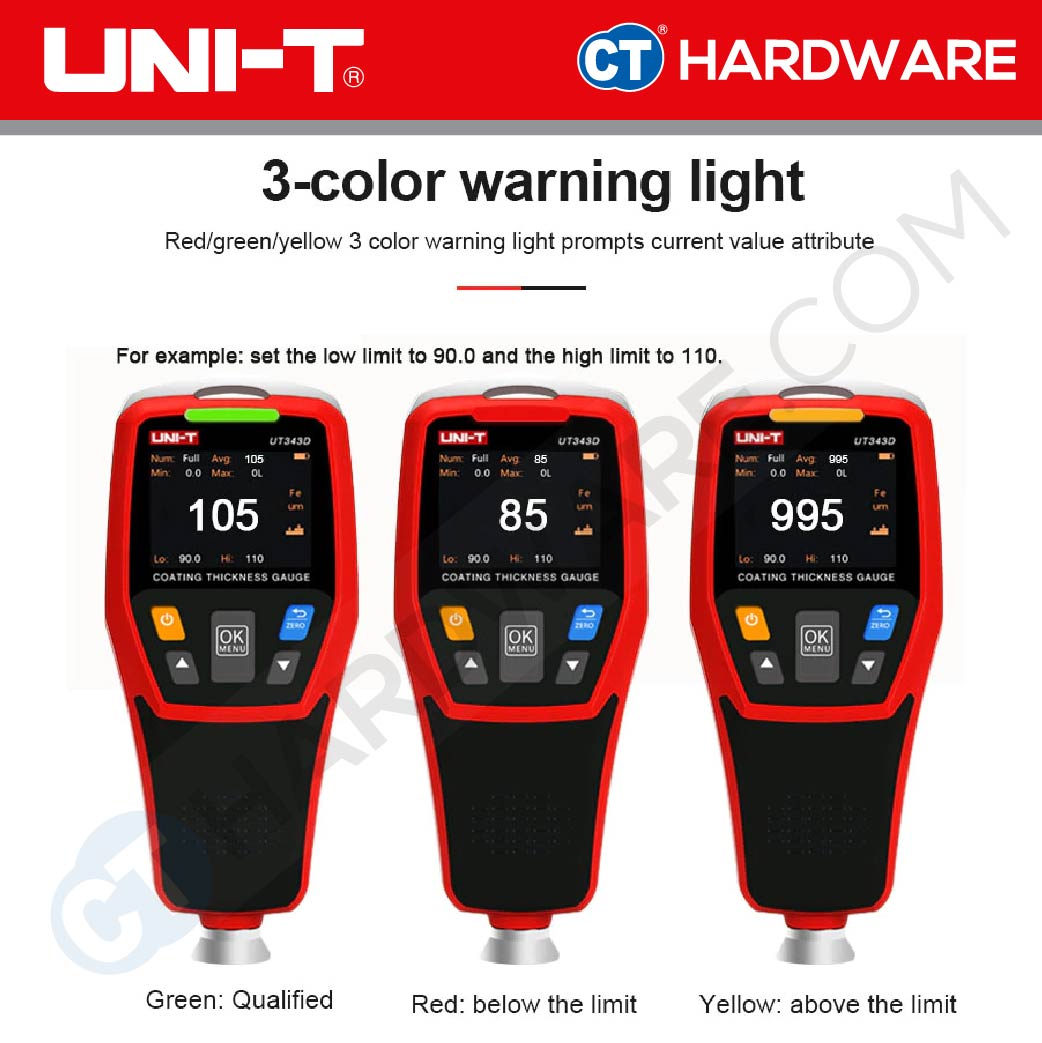

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and use a 3-color LED and audio alarm to quickly determine if the coating being tested falls within the preset range, greatly increasing work efficiency.

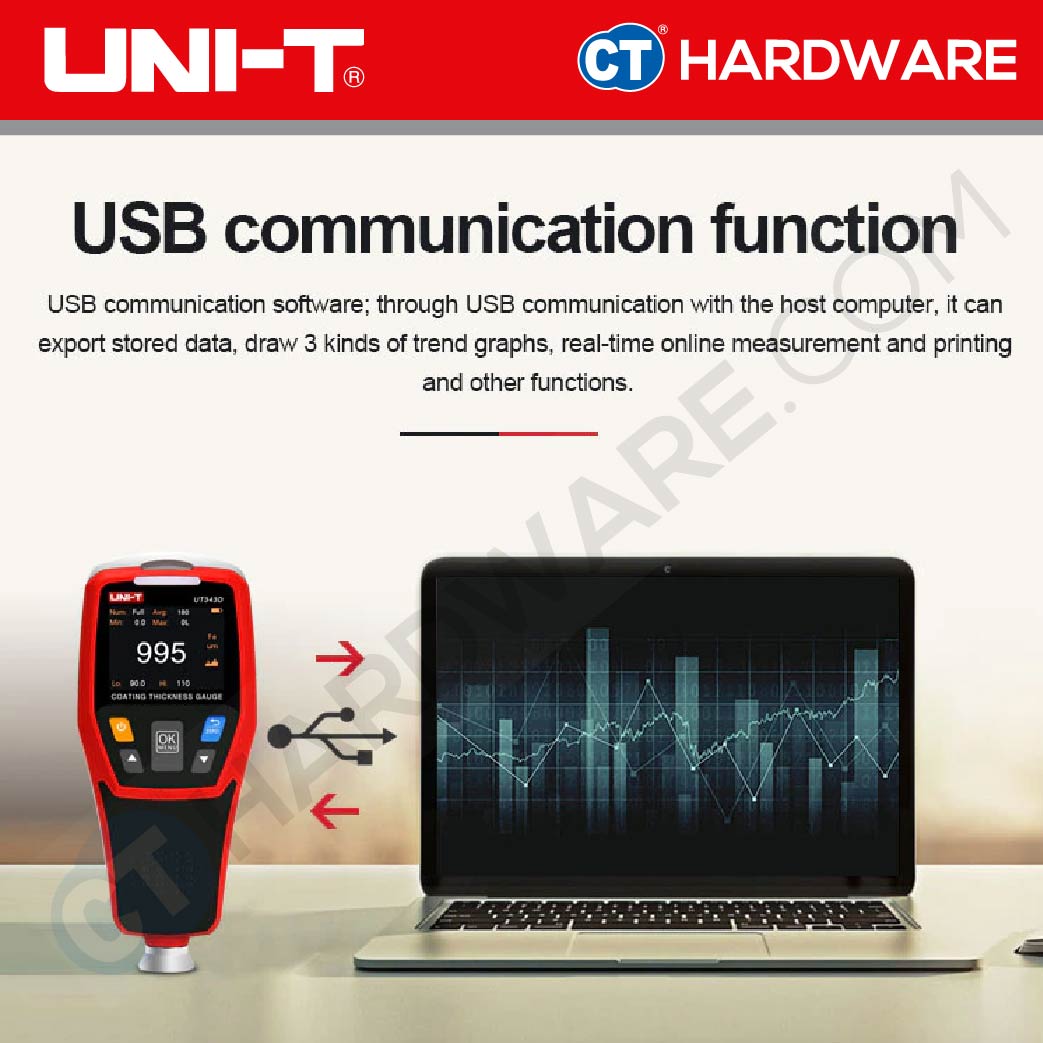

UT343 display is auto rotatable. This CE-certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.
Applications:
It is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.

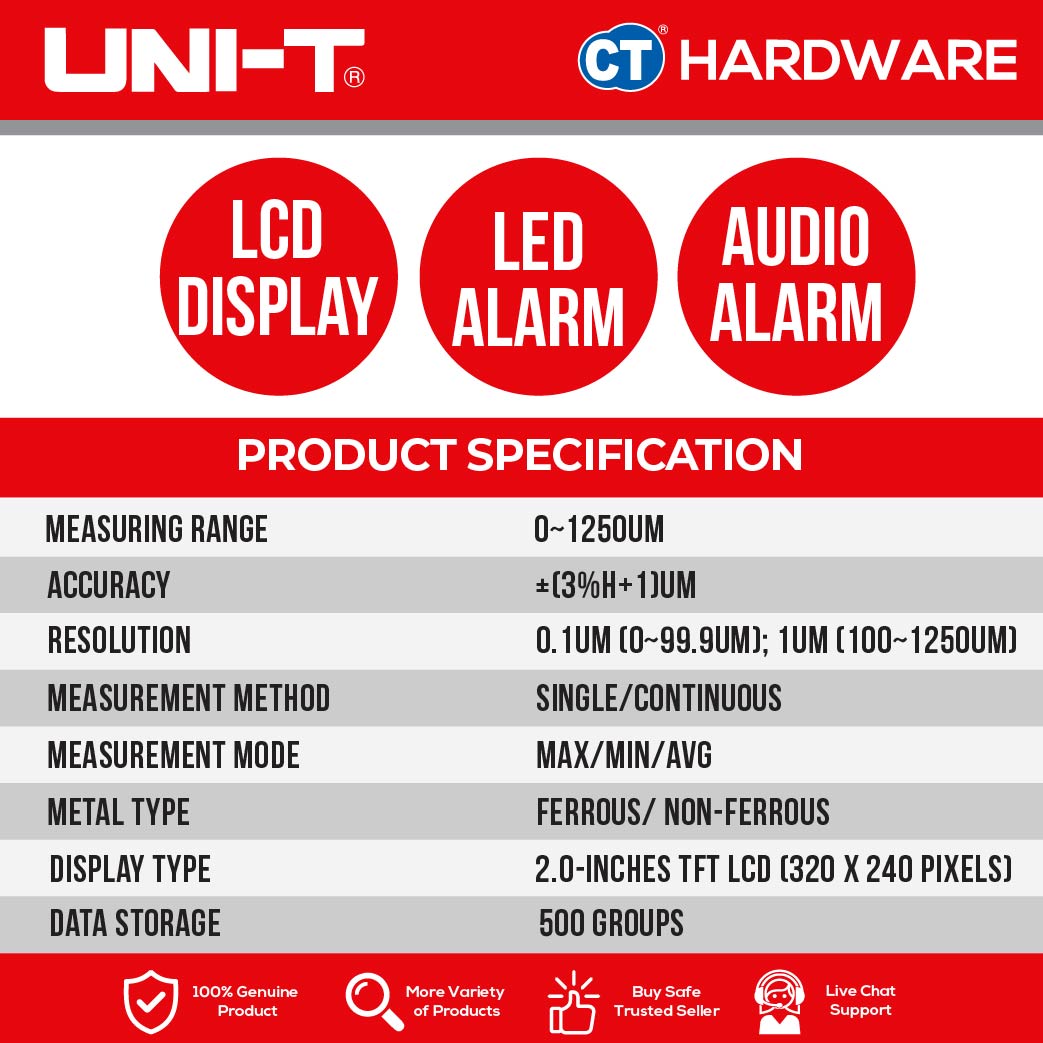

Specifications:
Specifications |
Range |
Measuring range |
0~1250um |
Accuracy |
±(3%H+1)um |
Resolution |
0.1um (0~99.9um); 1um (100~1250um) |
Measurement method |
Single/Continuous |
Measurement mode |
Max/Min/Avg |
Metal type |
Ferrous/ non-ferrous |
Features | |
Display type |
2.0-inches TFT LCD (320 x 240 pixels) |
LCD brightness control |
√ |
Auto rotatable screen |
√ |
Unit conversion |
√ |
Audio alarm |
√ |
LED alarm |
√ |
PC analysis software |
√ |
USB communication |
√ |
Quick test mode |
√ |
Data storage |
500 groups |
Auto power off |
√ |
Low battery indication |
√ |
General Characteristics | |
Power |
3V battery (R03) x 2 |
Display |
48mm x 36mm |
Product colour |
Red and grey |
Product net weight |
175g |
Product size |
153.5mm x 64.5mm x 41mm |
Standard accessories |
Micro USB interface cable, standard piece, batteries, cloth bag |
Standard individual packing |
Gift box, English manual |
Standard quantity per carton |
20pcs |
Standard carton measurement |
355mm x 320mm x 195mm |
Standard carton gross weight |
7.5kg |
