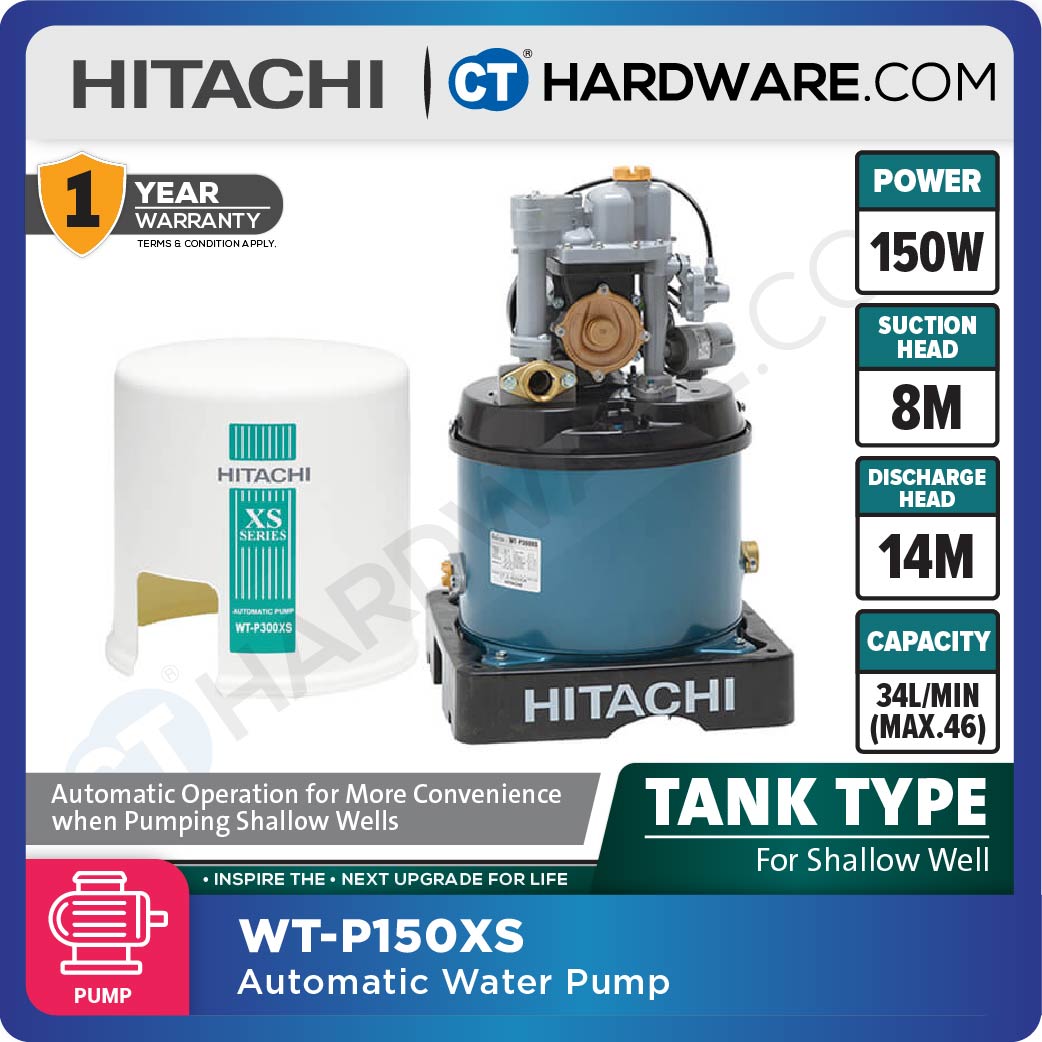

HITACHI WTP150XS AUTOMATIC WATER PUMP TANK TYPE FOR SHALLOW WELLS 1" | 150W | 46L/M | 8M/S | 14M/H (ROUND TYPE)

FEATURES:

Japanese Standard Quality

• Having almost 100 years of water pump manufacturing experience, these exceptional pumps are designed to deliver high performance and reliability.

Environment-Friendly Design

• Every unit is certified with the stringent RoHS standard, as well as ISO 9001 for factory quality management, and ISO 14001 for environmental management.

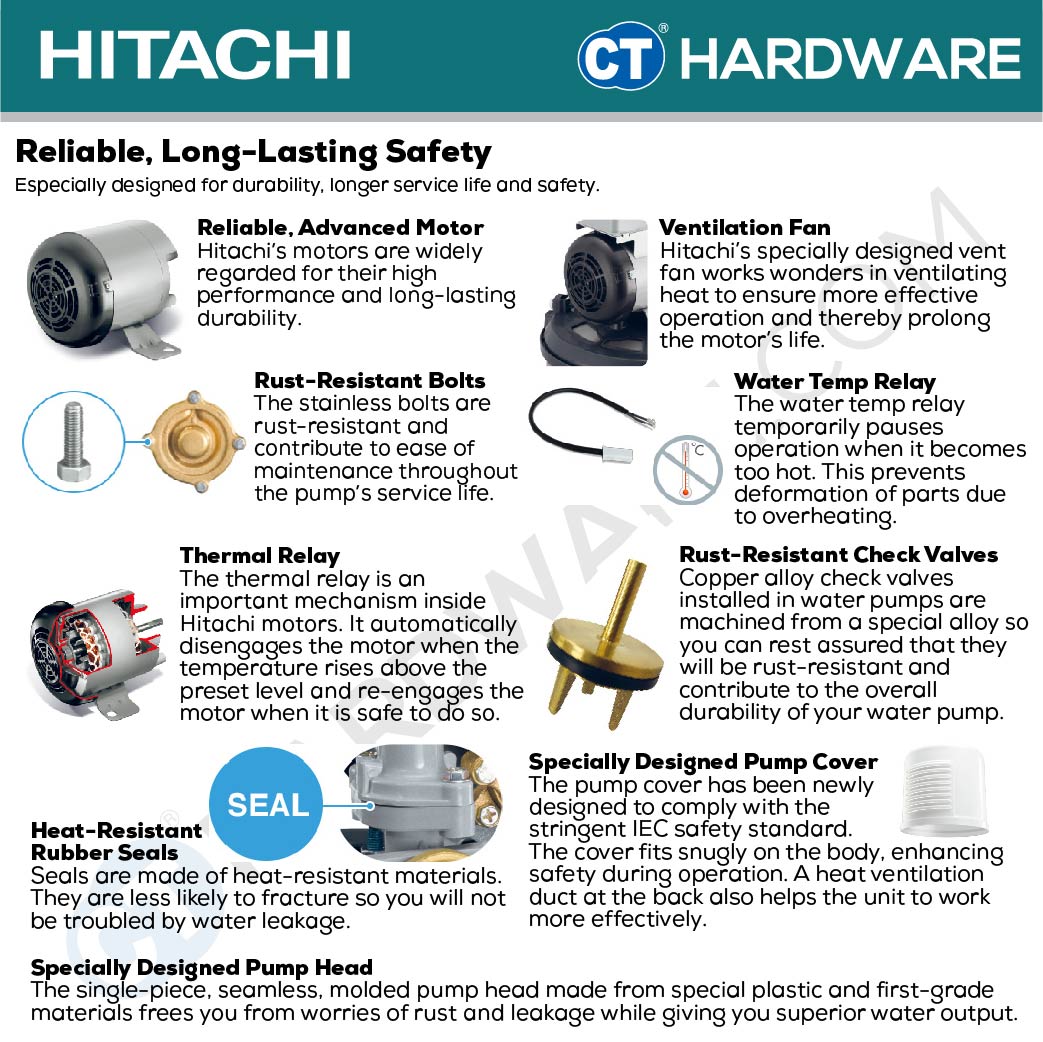

Reliable, Long-Lasting Safety

• Specially designed for durability, longer service life, and safety.

Reliable, Advanced Motor

• Hitachi’s motors are widely regarded for their high performance and long-lasting durability.

Rust-Resistant Bolts

• The stainless bolts are rust-resistant and contribute to ease of maintenance throughout the pump’s service life.

Thermal Relay

• The thermal relay is an essential mechanism inside Hitachi motors. It automatically disengages the motor when the temperature rises above the preset level and re-engages it when it is safe.

Rust-Resistant Check Valves

• Copper alloy check valves installed in water pumps are machined from a special alloy so you can rest assured that they will be rust-resistant and contribute to the overall durability of your water pump.

Water Temp Relay

• The water temp relay temporarily pauses operation when it becomes too hot. This prevents the deformation of parts due to overheating.

Ventilation Fan

• Hitachi’s specially designed vent fan works wonders in ventilating heat to ensure more effective operation and thereby prolong the motor’s life.

Heat-Resistant Rubber Seals

• Seals are made of heat-resistant materials. They are less likely to fracture so you will not be troubled by water leakage.

Specially Designed Pump Head

• The single-piece, seamless, molded pump head made from special plastic and first-grade materials frees you from worries of rust and leakage while giving you superior water output.

Specially Designed Pump Cover

• The pump cover has been newly designed to comply with the stringent IEC safety standard. The cover fits snugly on the body, enhancing safety during operation. A heat ventilation duct at the back also helps the unit to work more effectively.

Stable Water Pressure

Automatic Air Intake

• This works in unison with water tap operation to ensure stable pressure. It’s rust-resistant and can be removed for cleaning.

Durable Water Pressure Tank

• The welded tank provides more resistance to pressure and water leakage. Also, the tank is made of specially thick steel and coated with triple layers of anti-rust agents and is a metallic color for extra sun resistance.

Installation Flexibility

Three Choices of Water Outlets

• There are three choices of water outlets on the pressure tank to give you more flexibility when connecting to the water pipe.

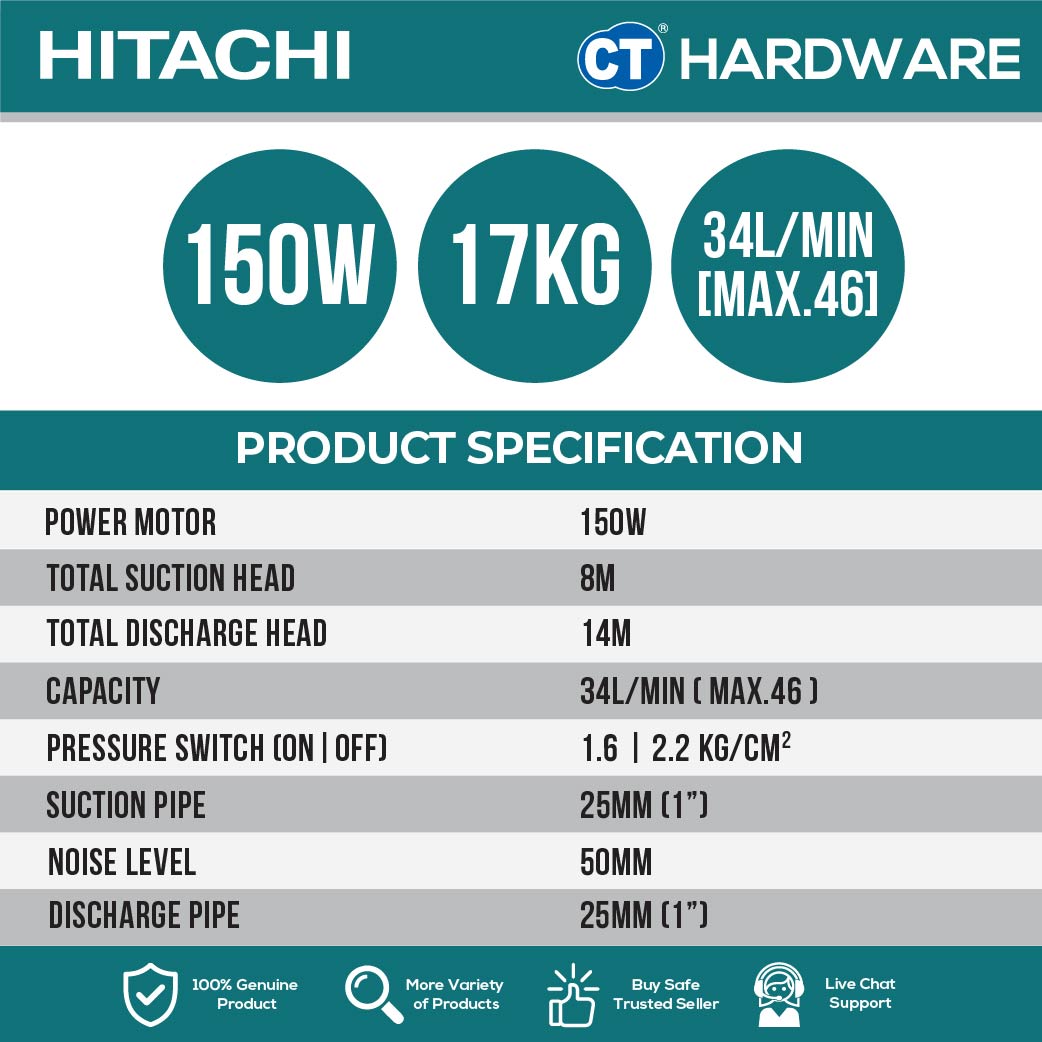

TECHNICAL SPECIFICATIONS
