HCP F-31UFA SUBMERSIBLE SEWAGE EFFLUENT PUMPS 1HP | 230V | 460L/M | 10M/H | 3" [ F31UFA ]

FEATURES

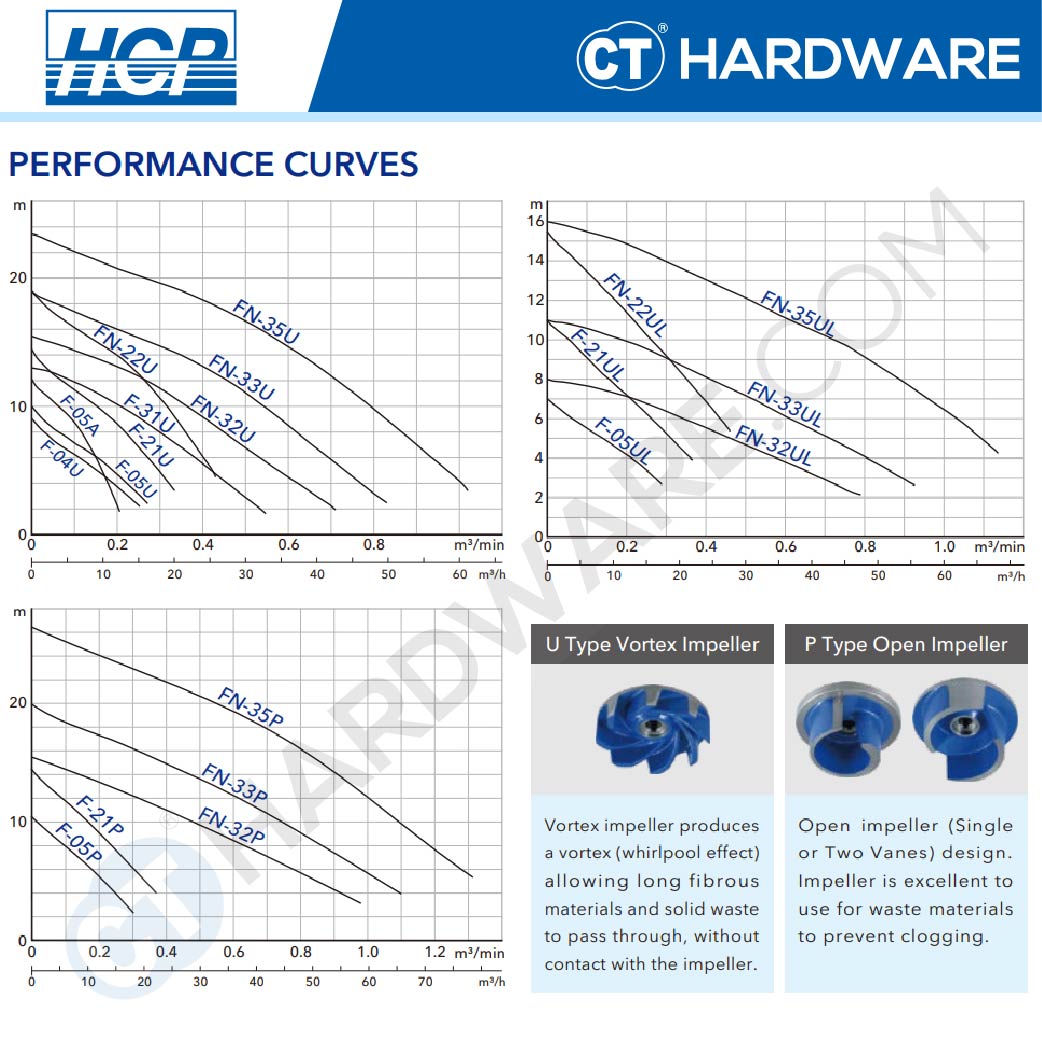

• • U/P type impellers are designed to meet the various different operating ranges in wastewater applications.
• • F/FN-UL non-clog models, capable of passing larger solids.
• • HCP's professional assembly line is complimented with a synthetic production test to ensure each IP68 motor with the highest level of final pump quality.

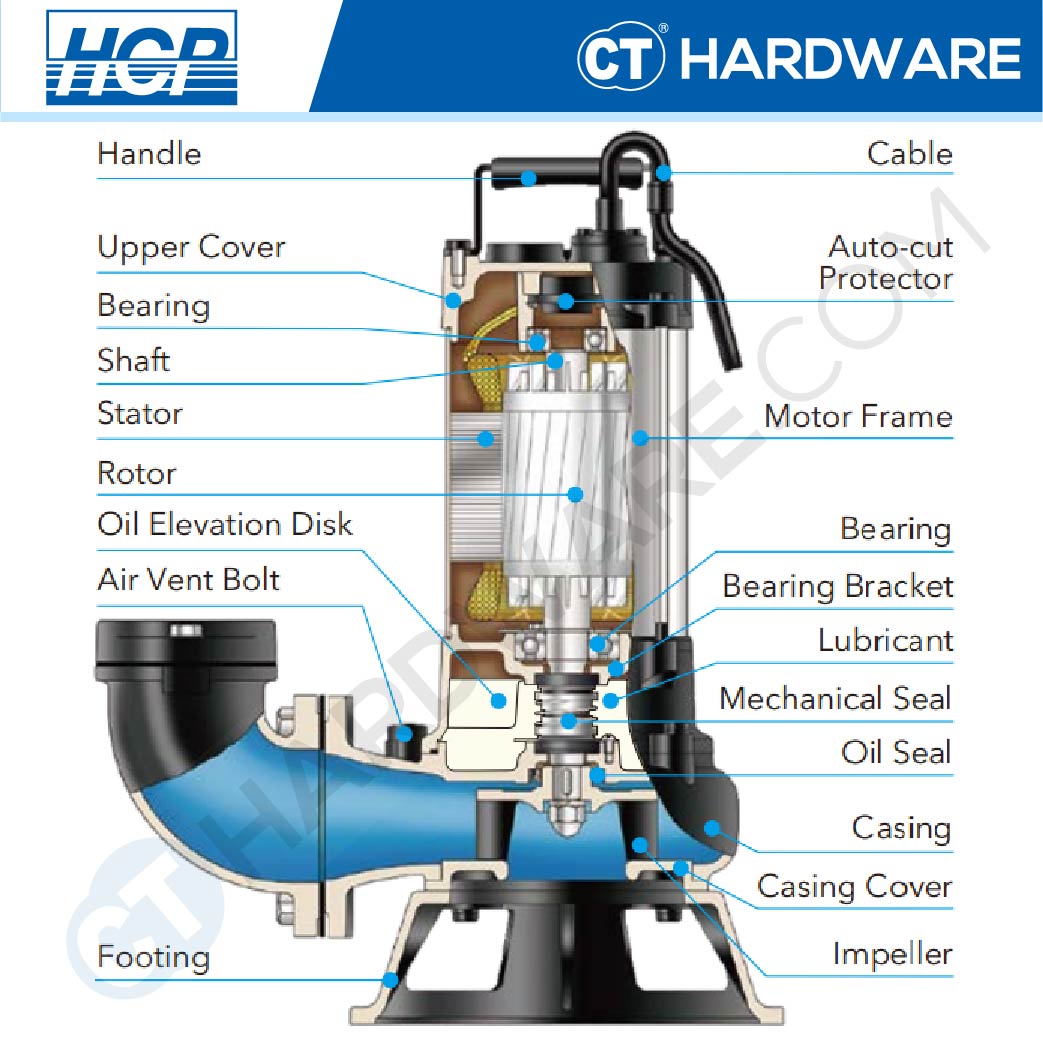

• • Oil Elevation Disk design in the oil chamber to ensure the mechanical seal lubrication and to extend the service life of the pump.
• • Standard accessories include: cable with an epoxy resin sealed water-resistant cable base, Auto-cut Protector,  double mechanical seals, Food grade lubricant, and lip seal design.

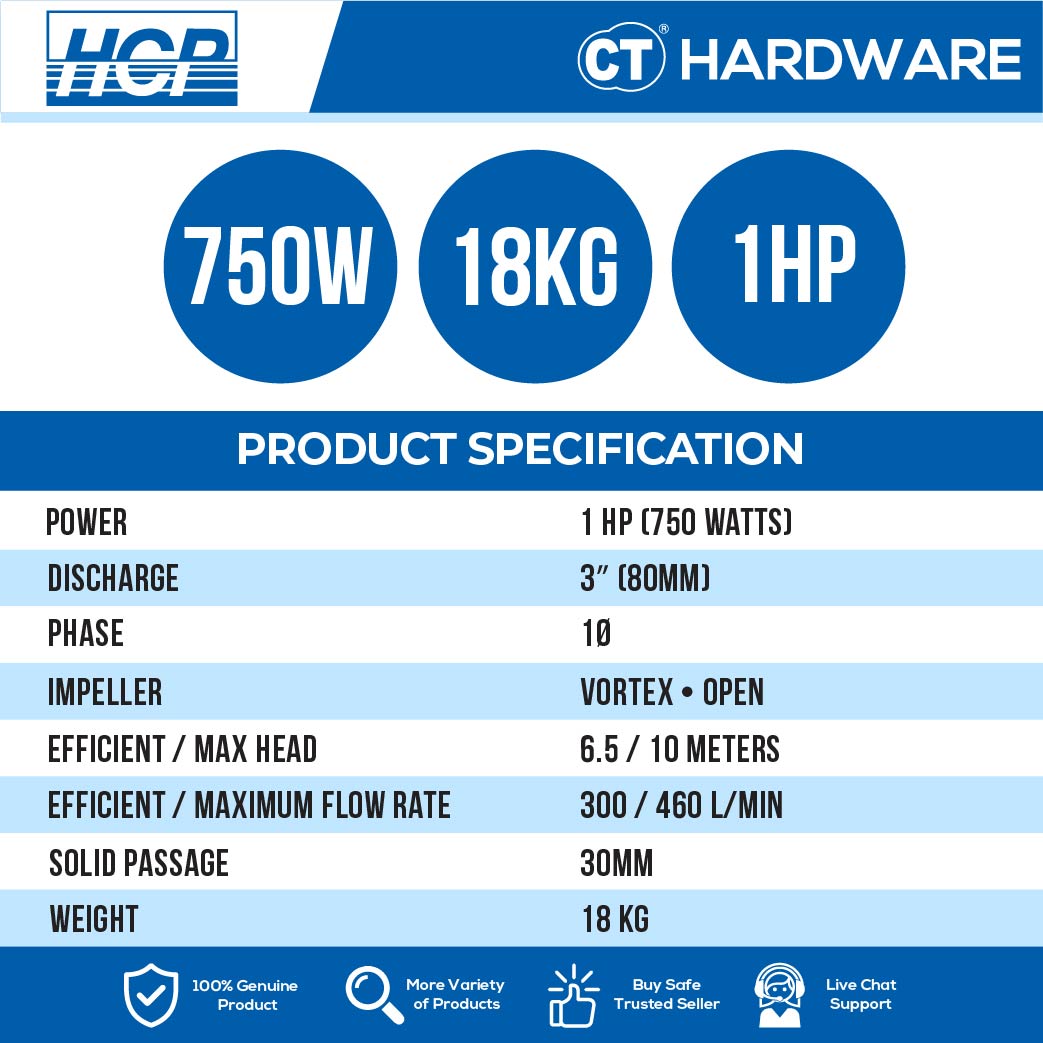

SPECIFICATIONS:

ADVANCED:

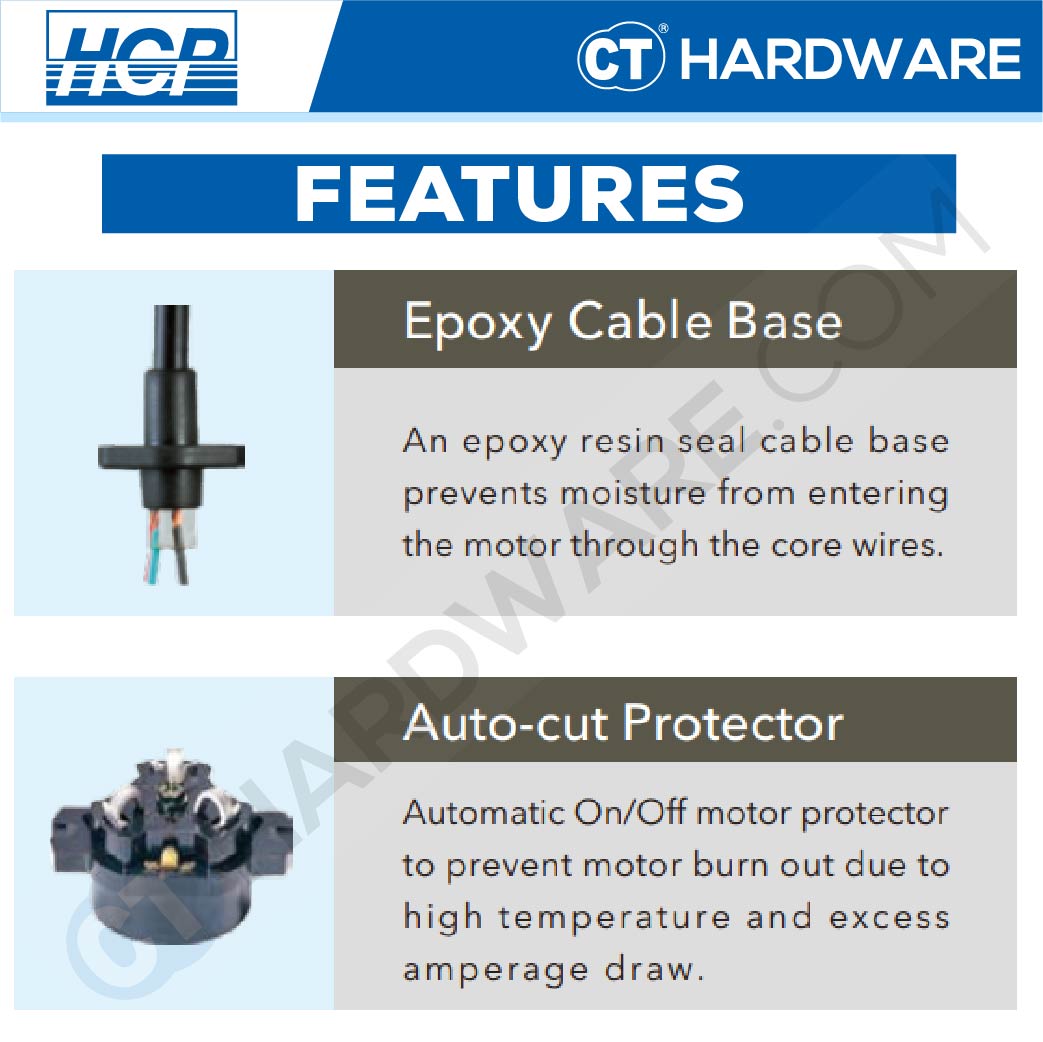

Epoxy Cable Base

An epoxy resin seal cable base prevents moisture from entering the motor through the core wires.

Auto-cut Protector

Automatic On/Off motor protector to prevent motor burnout due to high temperature and excess amperage draw.

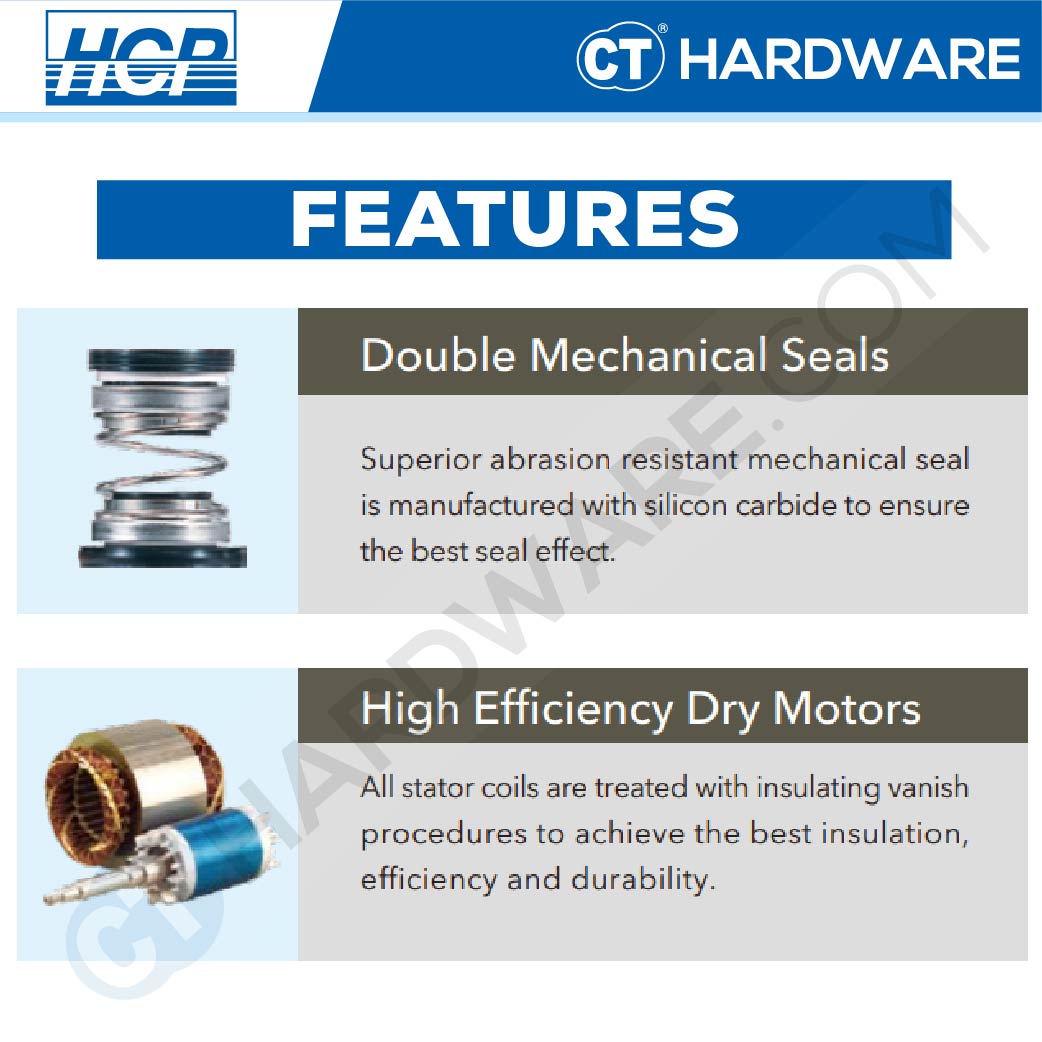

Double Mechanical Seals

A superior abrasion-resistant mechanical seal is manufactured with silicon carbide to ensure the best seal effect.

High-Efficiency Dry Motors

All stator coils are treated with insulating varnish procedures to achieve the best insulation,  efficiency, and durability.

ACCESSORIES: ELBOW / GRS-GUIDE RAIL SYSTEMS

A/AN pumps can be installed with a 90° Elbow Flange outlet or GRS guide rail system, to have easier / safe installation or removal during replacement and maintenance.
