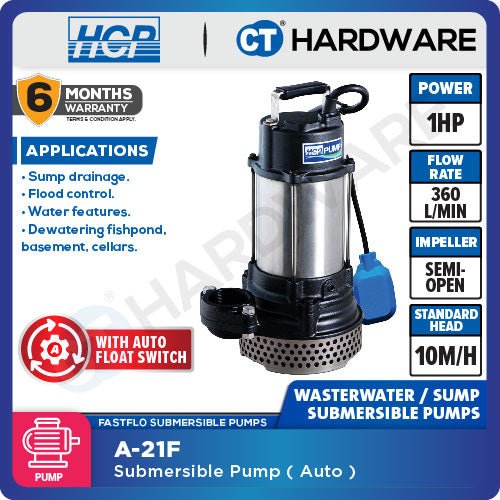

HCP A-21F SUBMERSIBLE WASTEWATER SUMP PUMP 2" | 1HP | MAX 360L/MIN | MAX HEAD 10M | AUTO [ A21F ]
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We currently ship to Malaysia. International shipping is available by request only, please contact us for inquiry.
Standard shipping normally takes 3-5 days. Express shipping within Klang Valley is available for an additional charge, please contact us if you need it.
Returning an item
Returning an item
If you are not completely satisfied with your purchase, please contact our customer service team. Please note that not all items are returnable, check our return policy page for details.
FEATURES
- • A precision manufacturing assembly line, complimented with a synthetic production
- test to ensure each IP68 motor has the highest level of final pump quality.
- • Standard accessories include: cable with an epoxy resin sealed water-resistant cable
base, Auto-cut motor protector, double mechanical seals, and lip seal design. - • Oil Elevation Disk design in the oil chamber to ensure the mechanical seal lubrication
- and to extend the pump's service life.
- • Lightweight, portable and durable for a wide range of uses.
- • A-05A is a practical pump, with a low temperature, oil-filled motor, and single mechanical seal design (CA/CE).

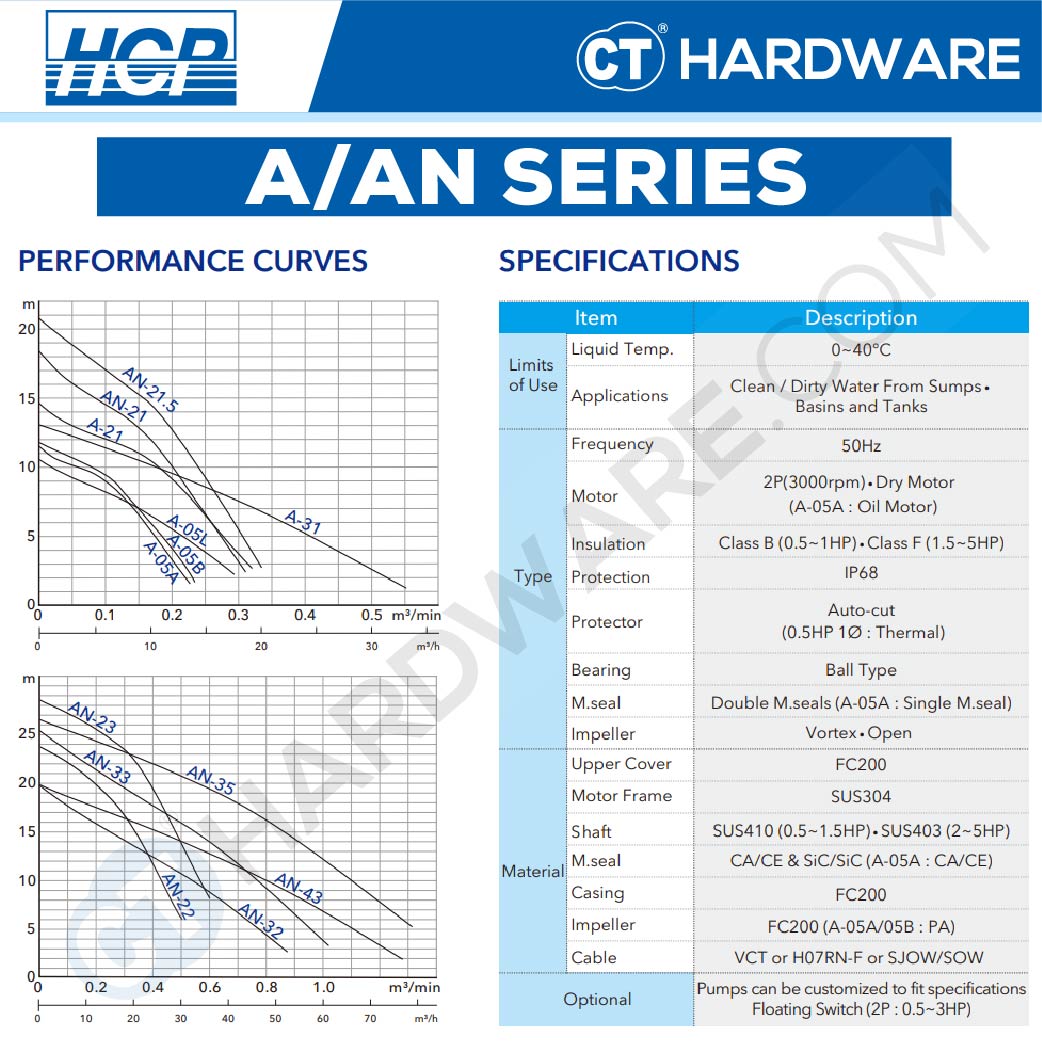

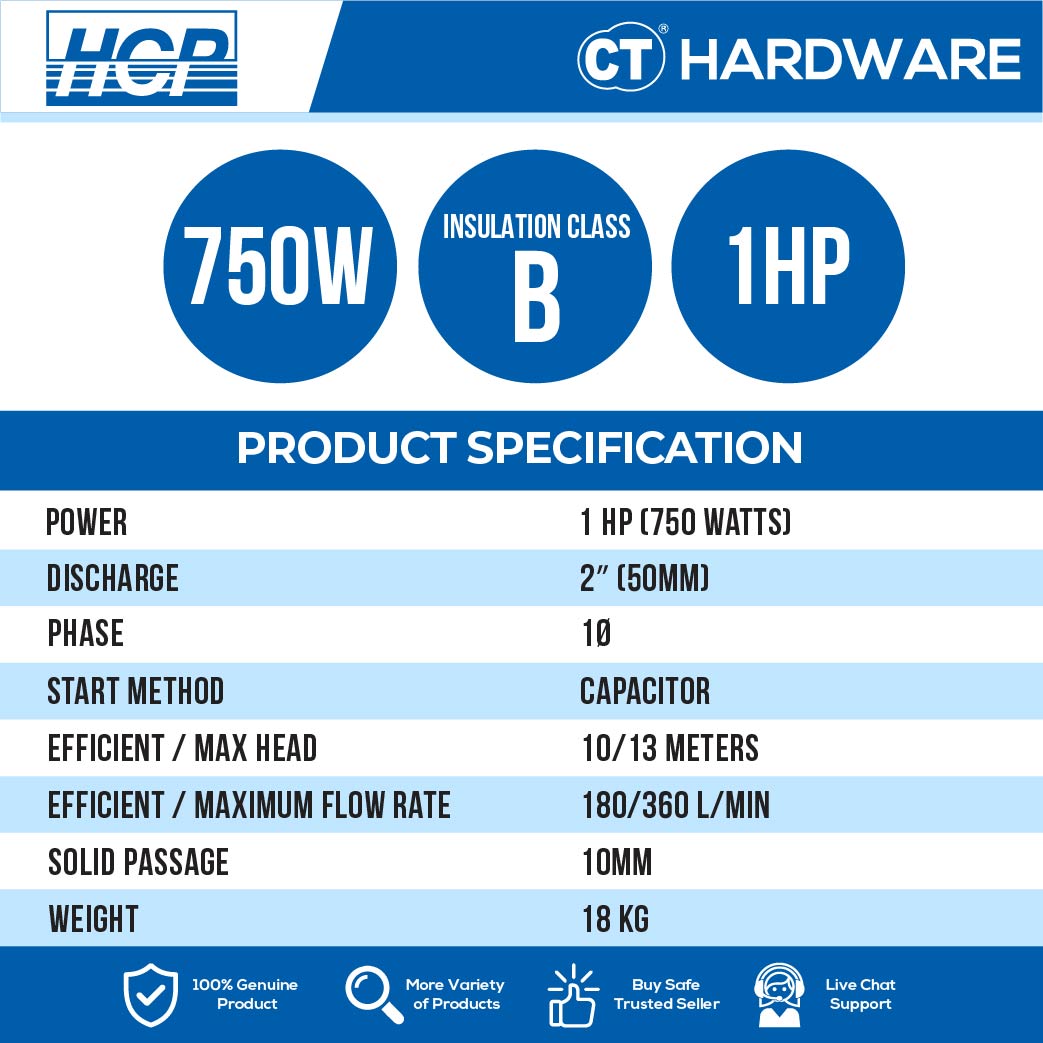

SPECIFICATIONS:
| Power | 1HP ( 0.75kW ) |
| Discharge | 2" | 50mm |
| Phase | 1Ø |
| Start Method | Capacitor |
| Head | 10/13 m |
| Maximum Flow Rate | 180/360 L/MIN |
| Solid Passage | 10mm |
| Weight | 18kg |

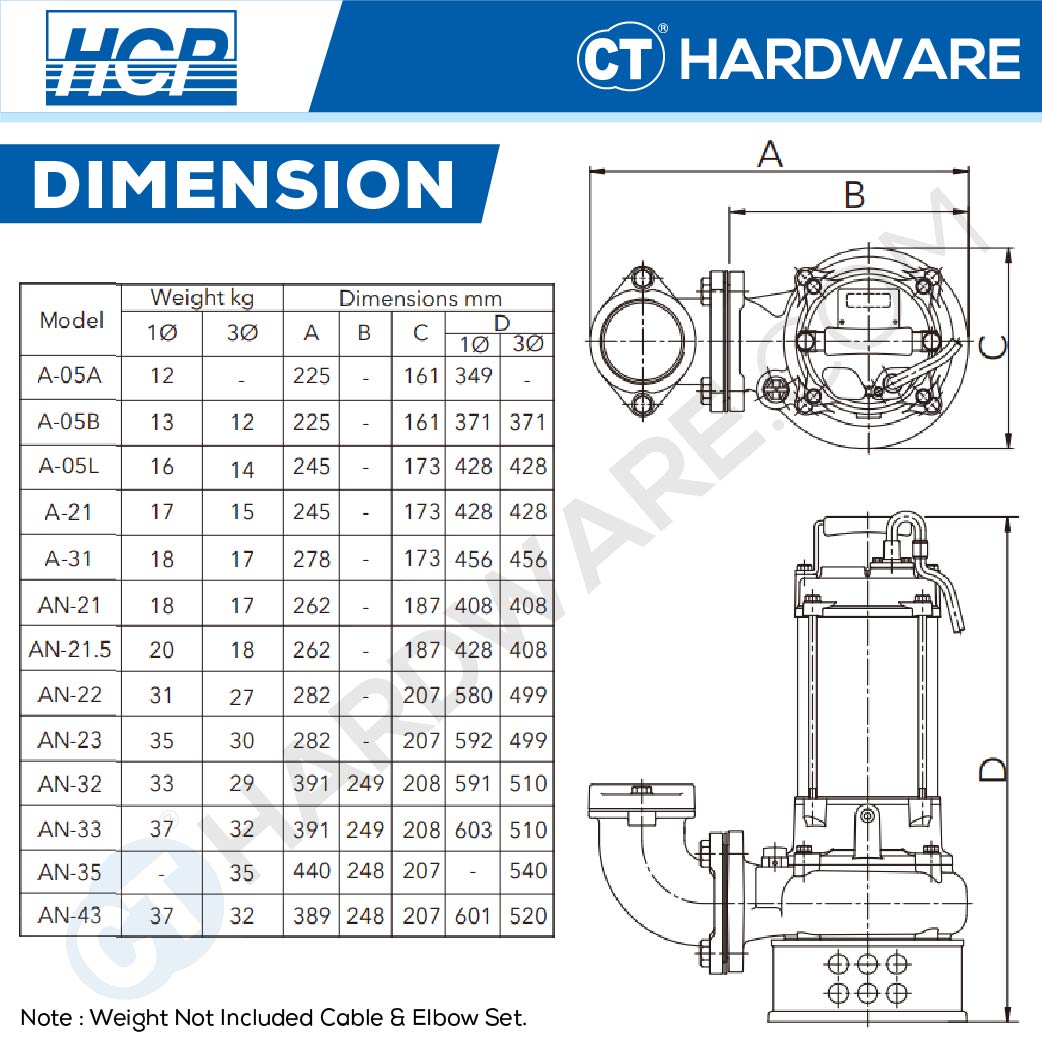

| Dimension ( L x W x H ) | 245 x 173 x 428 |
ADVANCED:

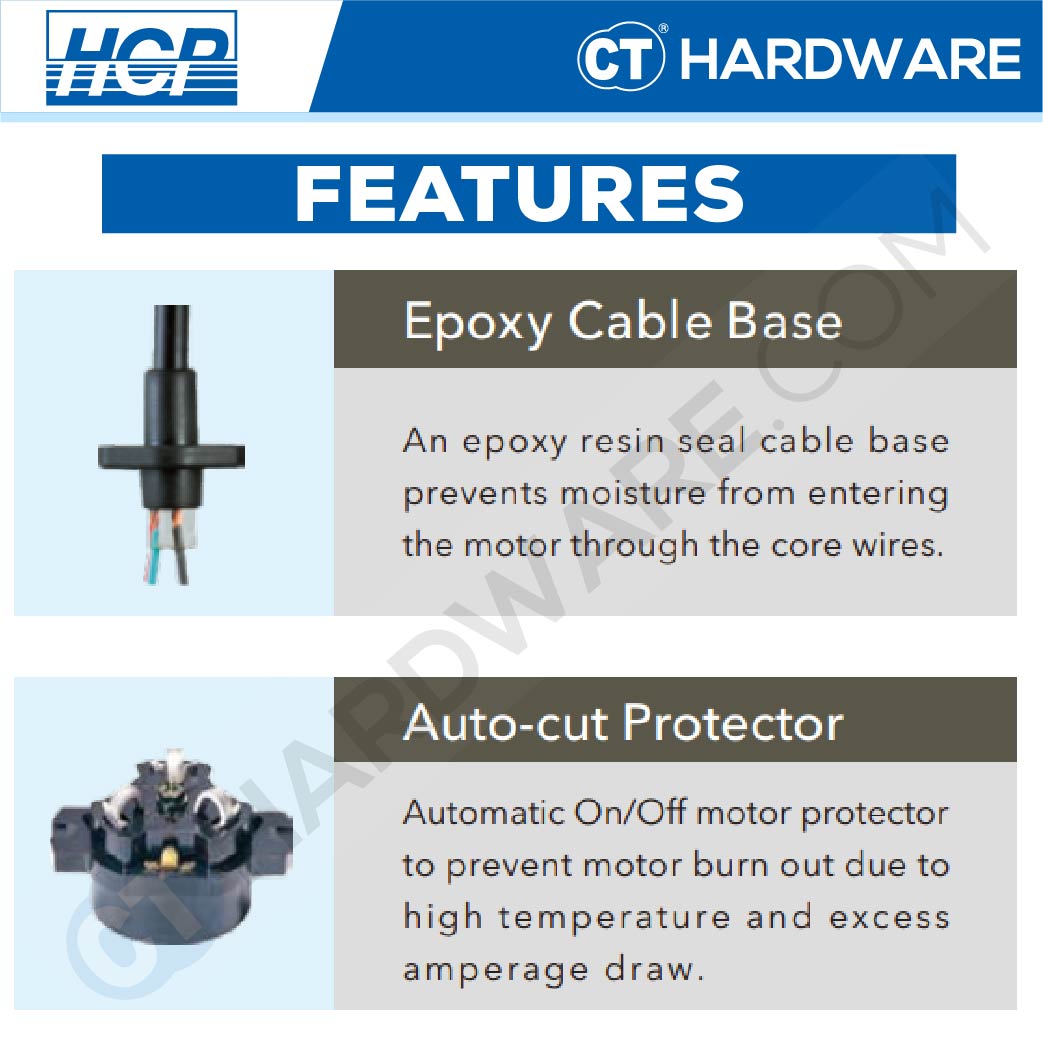

Epoxy Cable Base
An epoxy resin seal cable base prevents moisture from entering the motor through the core wires.
Auto-cut Protector
Automatic On/Off motor protector to prevent motor burnout due to high temperature and excess amperage draw.

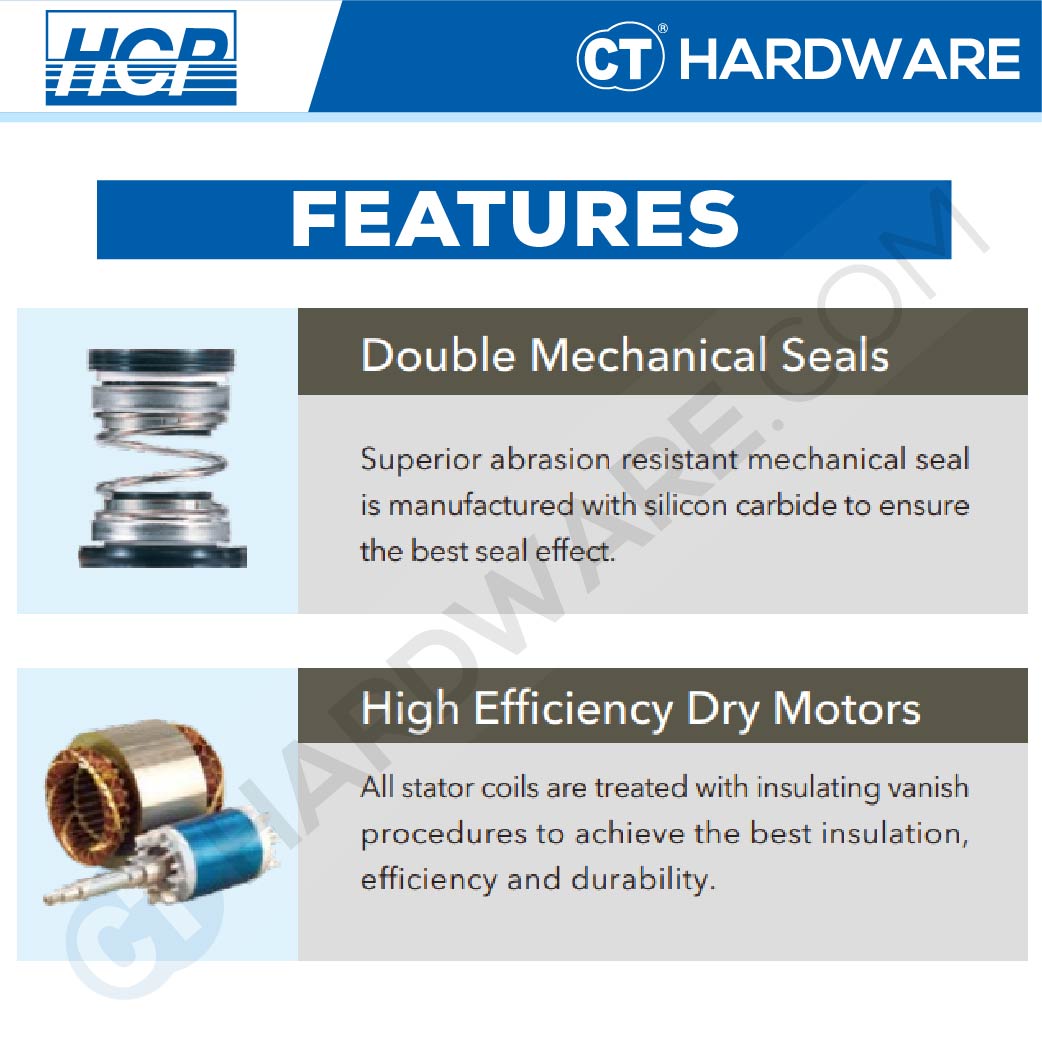

Double Mechanical Seals
A superior abrasion-resistant mechanical seal is manufactured with silicon carbide to ensure the best seal effect.
High-Efficiency Dry Motors
All stator coils are treated with insulating varnish procedures to achieve the best insulation, efficiency, and durability.
ACCESSORIES: ELBOW / GRS-GUIDE RAIL SYSTEMS
A/AN pumps can be installed with a 90° Elbow Flange outlet or GRS guide rail system, to have easier / safe installation or removal during replacement and maintenance.
