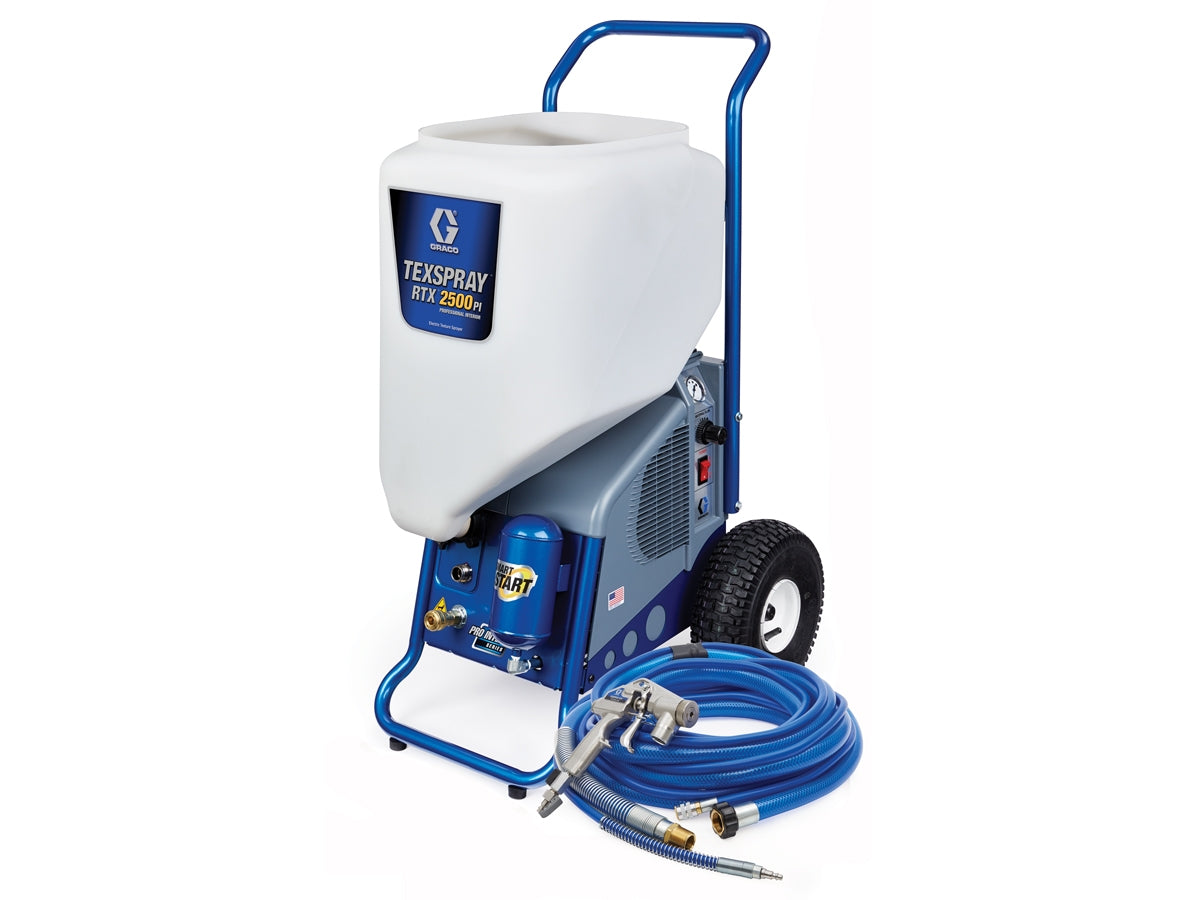

Graco Airless TexSpray RTX 2500PI

TexSpray RTX 2500PI - Electric Texture Sprayer

The TexSpray RTX 2500PI is designed for thicker materials with larger capacity for increased productivity to get you on and off the job site faster.

The RTX 2500PI is an optimized texture system perfect for tradesmen and contractors seeking the time-saving features required for thicker materials and medium-to-large jobs. The RTX 2500PI delivers 2.5 gallons per minute and can handle up to 75 feet of hose to help get the job done faster.

Features

Larger Capacity Hopper
○ Holds up to 15 gallons of materials for less time spent refilling
SmartStart System
○ Innovative system automatically starts pump and compressor when gun trigger is pulled, and shuts them off when released
○ Provides a soft-start to eliminate material blast that can impact finish
○ Reduces noise and vibration
○ Extends life of pump and compressor
WideTex Tips & Adapter
○ Allows spraying in a uniform fan pattern
○ Spray repeatable patterns with less material and pressure adjustment
○ Increases productivity by more than 20%
Heavy-Duty Aluminum Trigger Gun with Integrated Prime Selector
○ Durable aluminum design
○ Oversized fluid/air passages
○ Allows unit to be put in prime mode on the gun
RotoFlex II Pump
○ Features an innovative braided sling that provides extra support to the RotoFlex pump tube
○ 2.0 gpm output to get the job done quickly - job site proven!
High-Output Air Compressor
○ High-output design delivers 33% more air for demanding finishes
○ Maintenance-free design
○ Projects materials farther
○ 6.1 cfm output at 20 PSI
120v AC High-Output Electric Motor
○ Optimized design offers improved power and performance
○ Single-motor design operates both the air compressor and the RotoFlex pump
1 inch Skip-Bond Material/Air Hose
○ Both hoses are permanently bonded together for easy handling
○ Offers improved flexibility
FlexChange Pump Section
○ No-tools pump replacement system—now easier than ever!
○ Swap out a spare RotoFlex pump in seconds
○ Eliminate costly job site downtime
Adjustable Material Flow Control
○ Dial up to spray thicker matierals
○ Dial down for less flow and maximum control
○ Easy-to-read gauge

Specification:

Model: 17V582
Max Flow GPM (LPM): 2.5 (9.5)
Max PSI (BAR): 100 (6.9)
Max Air Flow CFM (CM) @ 20 PSI: 6.1 (0.17)
Hopper GAL (L): 15 (57)
Motor Type: AC
Motor HP: 1.7
Voltage: 240V
Max Hose FT (M): 75 (23)

Units Include:

• 1 in x 25 ft Material Hose
• 3/8 in x 25 ft Air Hose
• Heavy Duty Texture Gun
• 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm Round Nozzles
• WideTex Adapter with 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, XL W Tips

Applications:

• Popcorn Texture
• Orange Peel Texture
• Splatter Texture
• Interior Residential
• Knockdown Texture
