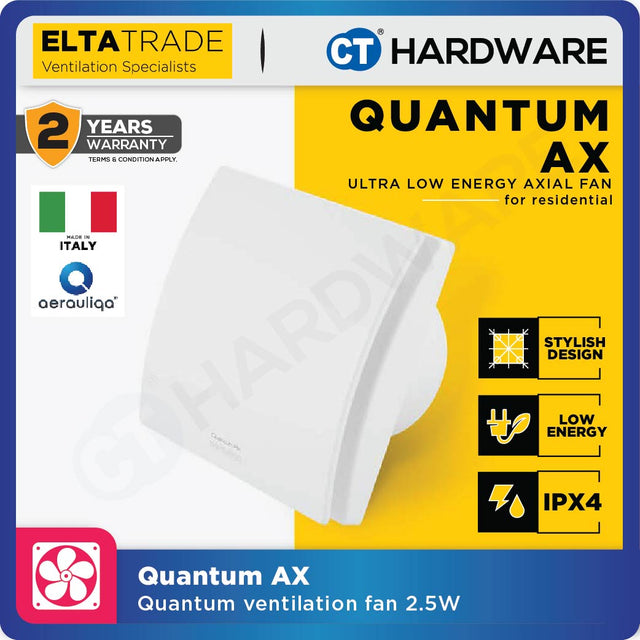

Elta Trade - Aerauliqa QUANTUM AX - Axial Extract Fan
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We currently ship to Malaysia. International shipping is available by request only, please contact us for inquiry.
Standard shipping normally takes 3-5 days. Express shipping within Klang Valley is available for an additional charge, please contact us if you need it.
Returning an item
Returning an item
If you are not completely satisfied with your purchase, please contact our customer service team. Please note that not all items are returnable, check our return policy page for details.
Casing made of high quality ABS provides long lasting shock-proof and robust construction. The unit is finished in white RAL 9010 and are UV resistant.
Unique design winglet-type impeller, providing enhanced aerodynamic properties, low noise and increased efficiency.
High efficient EC brushless motor with integral thermal protection, mounted on sealed for life high quality ball bearings. Designed for continuous running: suitable for intermittent operation too.
APPLICATION
Single flow decentralised mechanical ventilation unit, Ø100mm axial fan, for continuous running. Ideal for application in bathroom, toilet and small/medium premises. Suitable to extract stale air directly to the outside or through short length ducting. Units can be wall/panel, ceiling and window mounted.
FEATURES & BENEFITS
-IPX4 protection degree.
-Aesthetic front flat cover for modern interior design, easily removed for cleaning without the need of tools.
-Rigid optimised spigot support preventing distortion with strengthened guard and design to maximise airflow.
-Low power consumption: optimised for continuous running applications (24/24h)
-Multi speed selection to meet different ventilation requirements as follows: - trickle speed: can be selected among 3 options (21/29/48 m3 /h) either in case of air exhausting directly to the outside or of ducted installation; - maximum speed (boost) included (max 83m3 /h).
-Totally recyclable plastic components, environmentally friendly.
-Double insulated: no earth connection is required.
-Tested to the latest standards: units are tested in the TÜV Rheinland recognised laboratory at Aerauliqa, meaning accurate, up to date information on electrical safety, performance and noise level that can be relied upon. Designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility).
SPECIFICATIONS
Air-flow m3/h max: 83/47/29/21
Power consumption W max: 2,5/1,7/1,2/1
Sound pressure dB(A)* @3m: 26/23/13/11
Ambient temperature °C max: 50
