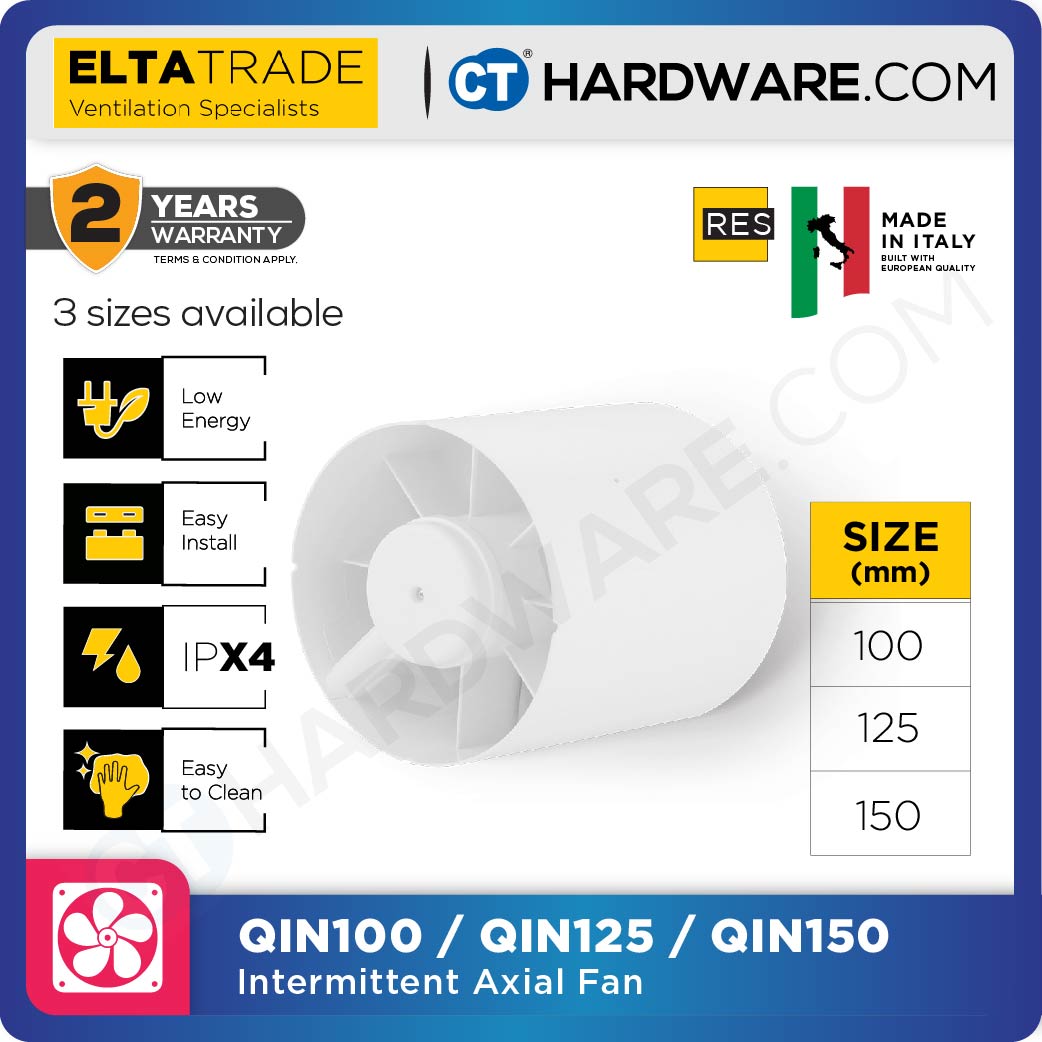

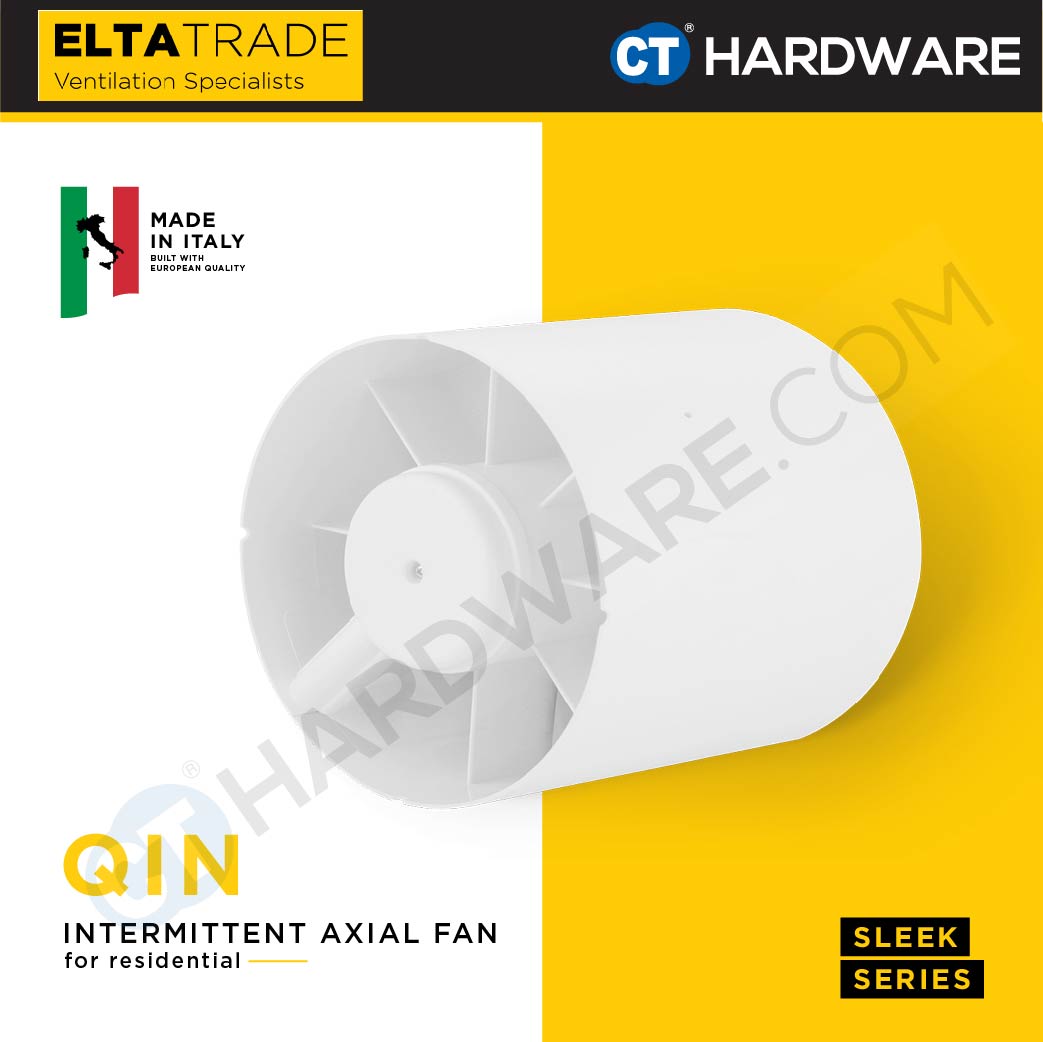

ELTA TRADE QIN100 / QIN125 / QIN150 Intermittent Axial In-Line Exhaust Fan (4″ / 5″ / 6″)

RM165.00
: : :
:
:
:

SIZE (INCH-MM)

Slim in-line axial fan for ducted ventilation, with intermittent operation, winglet impeller, low power consumption and IPX4 protection.

Delivery and Shipping

We currently ship to Malaysia. International shipping is available by request only, please contact us for inquiry.

Standard shipping normally takes 3-5 days. Express shipping within Klang Valley is available for an additional charge, please contact us if you need it.

Returning an item

If you are not completely satisfied with your purchase, please contact our customer service team. Please note that not all items are returnable, check our return policy page for details.

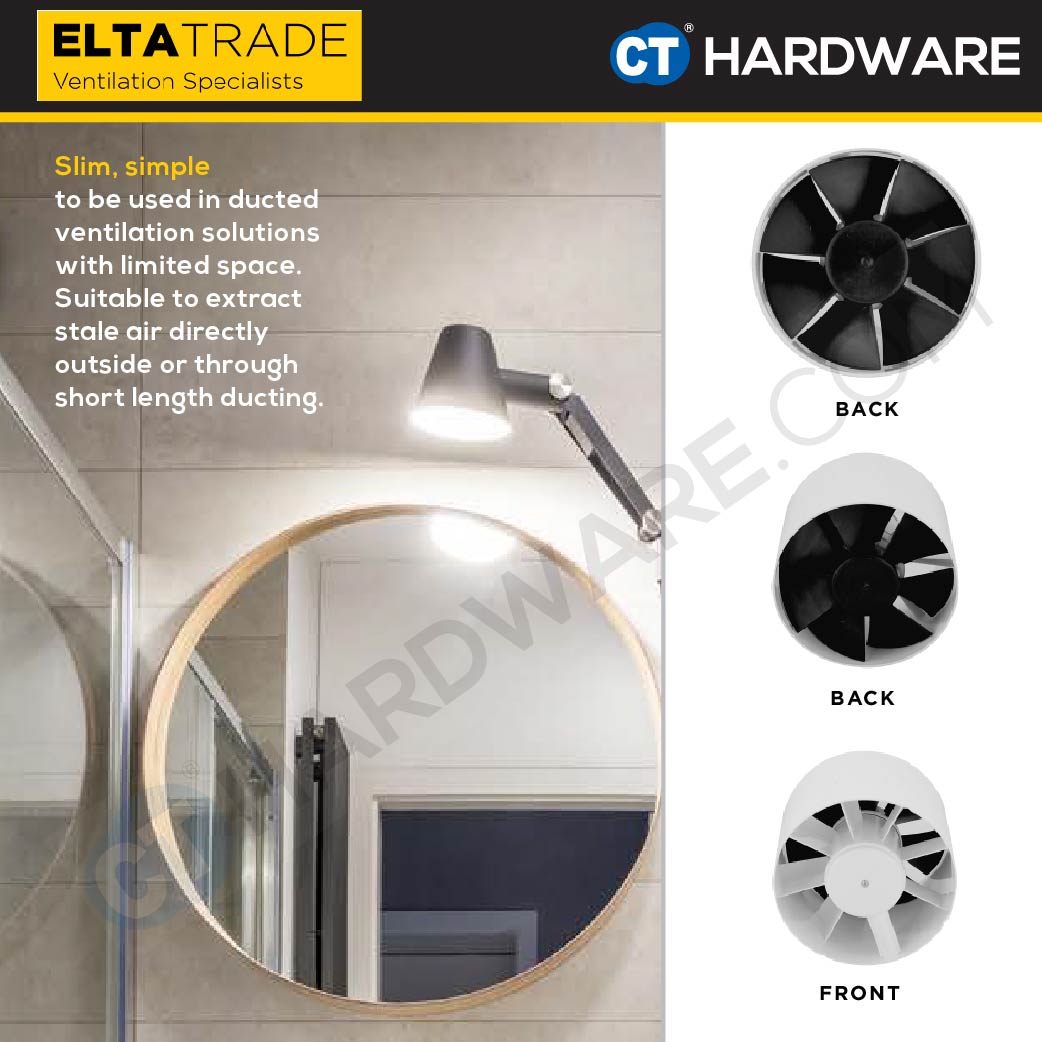

The ELTA TRADE QIN Series is designed for use in ducted ventilation systems where space is limited. These in-line intermittent axial fans are ideal for extracting stale air directly to outside or through short duct runs. Available in 100 mm (4"), 125 mm (5") and 150 mm (6") models, the QIN fans combine efficient airflow, quiet operation, and easy installation, suitable for bathrooms, toilets, laundries, kitchens, and more.


Key Features and Benefits

  • Winglet-type impeller provides aerodynamic efficiency and reduced noise.

  • Low power consumption, e.g. the 100 mm model uses ~8 W.

  • IPX4 protection – safe for humid / damp environments (bathrooms etc.).

  • Double insulated – no earth connection required.

  • Thermal protection built into motor, with sealed bearings for long life.

  • Slim, compact housing for easy in-line or wall mounting.

  • Available in standard and run-on timer versions (T variant).


Why You Should Buy
If you require an in-line exhaust fan that is quiet, compact, and efficient, the QIN series offers excellent performance with minimal power use. It’s ideal where a wall fan isn’t possible or where you prefer the fan hidden in ducting. The optional timer version adds convenience, allowing post-operation ventilation to clear humidity.

Technical Specifications

Model Airflow (m³/h) Speed (rpm) Static Pressure (Pa) Power (W) Sound Level dB(A) @ 3 m
QIN100 84 m³/h    (free air)  2470 rpm  24 Pa 8 W 34 dB(A)
QIN125 163 m³/h  2335 rpm  43 Pa 14 W 39 dB(A)
QIN150 312 m³/h 2220 rpm  57 Pa 24 W 45 dB(A)

Other Specifications:

  • Motor type: Single-phase induction motor

  • Housing material: High quality ABS, UV resistant & shock proof, finished in white RAL 9010

  • Protection: IPX4 rating

  • Mounting: Inline, ducted installation in walls / ceilings with short duct runs

  • Warranty: 2 years standard (some versions up to 5 years)


Call to Action
Upgrade your indoor air with the ELTA TRADE QIN Intermittent Axial Fan — select your size (100 / 125 / 150 mm) and add to cart for efficient, quiet ducted ventilation.

SPECIFICATIONS

MODEL QIN100 QIN125 QIN150
Airflow m³/h* 84 163 312
Speed rpm 2470 2335 2220
Static Pressure Pa 24 43 57
Power W 8 14 24
dB(A) @3m 34 39 45
Marking СЄ СЄ СЄ

*Max airflow without duct and fittings.

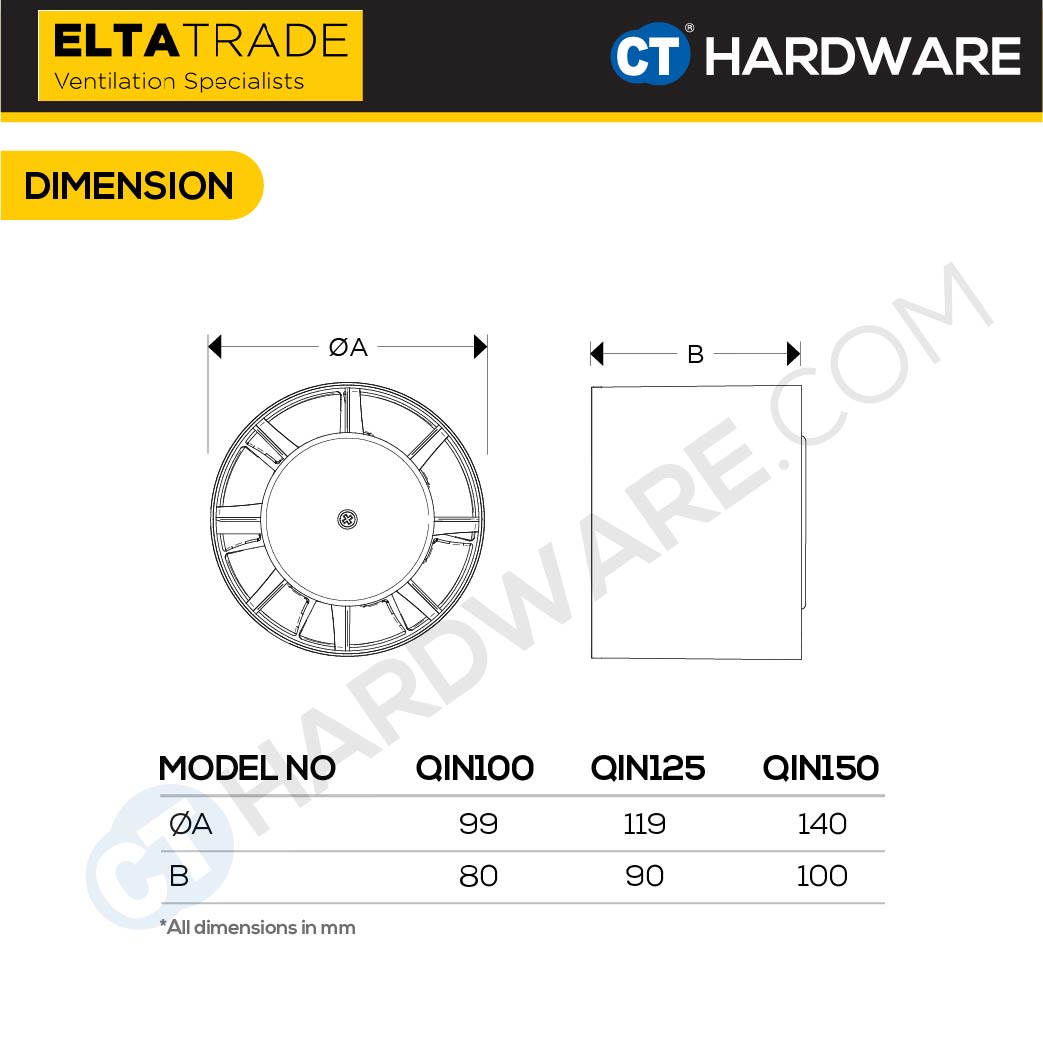

AVAILABLE OPTION

MODEL SIZE QIN100 QIN125 QIN150
ØA 99 119 140
B 80 90 100

All dimensions in mm.
