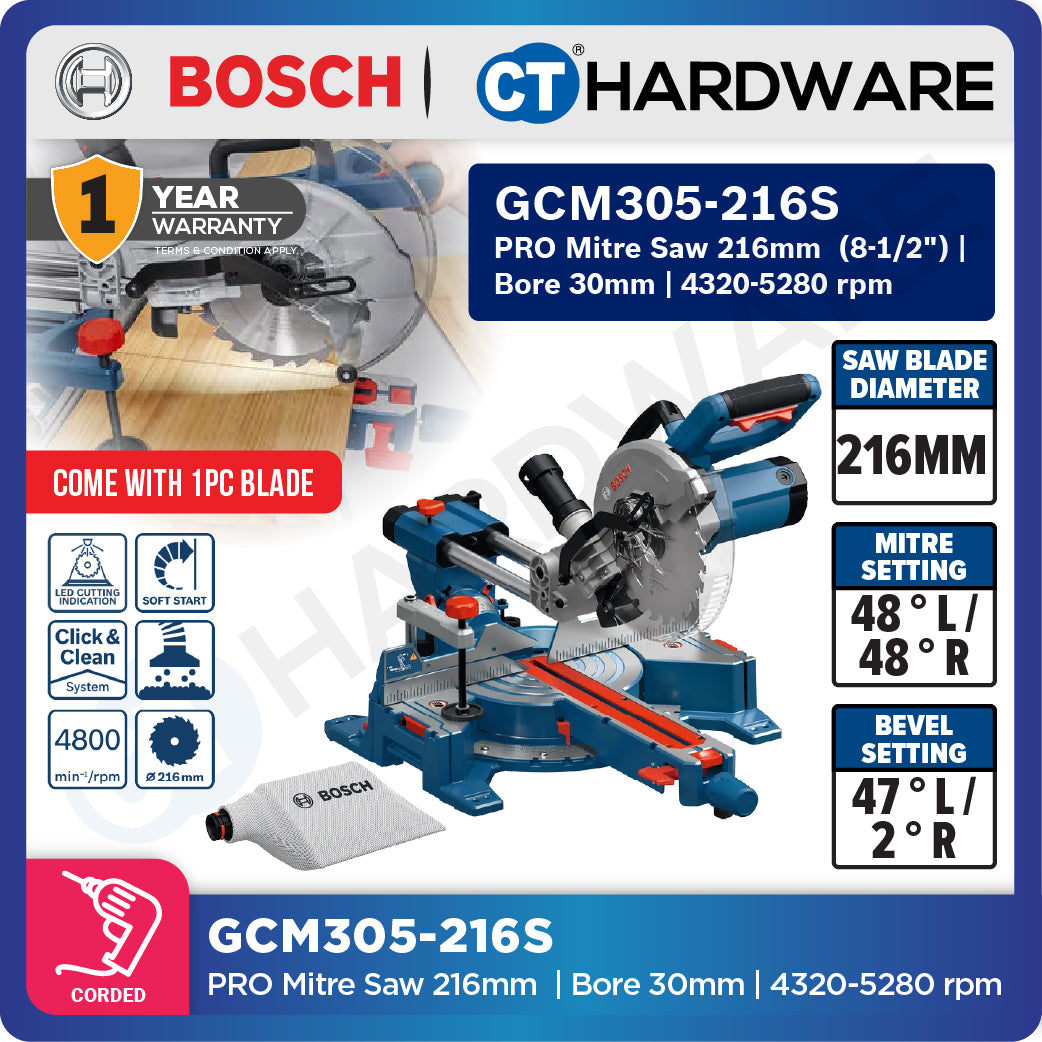

Bosch PRO GCM305-216S Mitre Saw 1300W 216mm 315mm Cutting Capacity [0601B610L0]

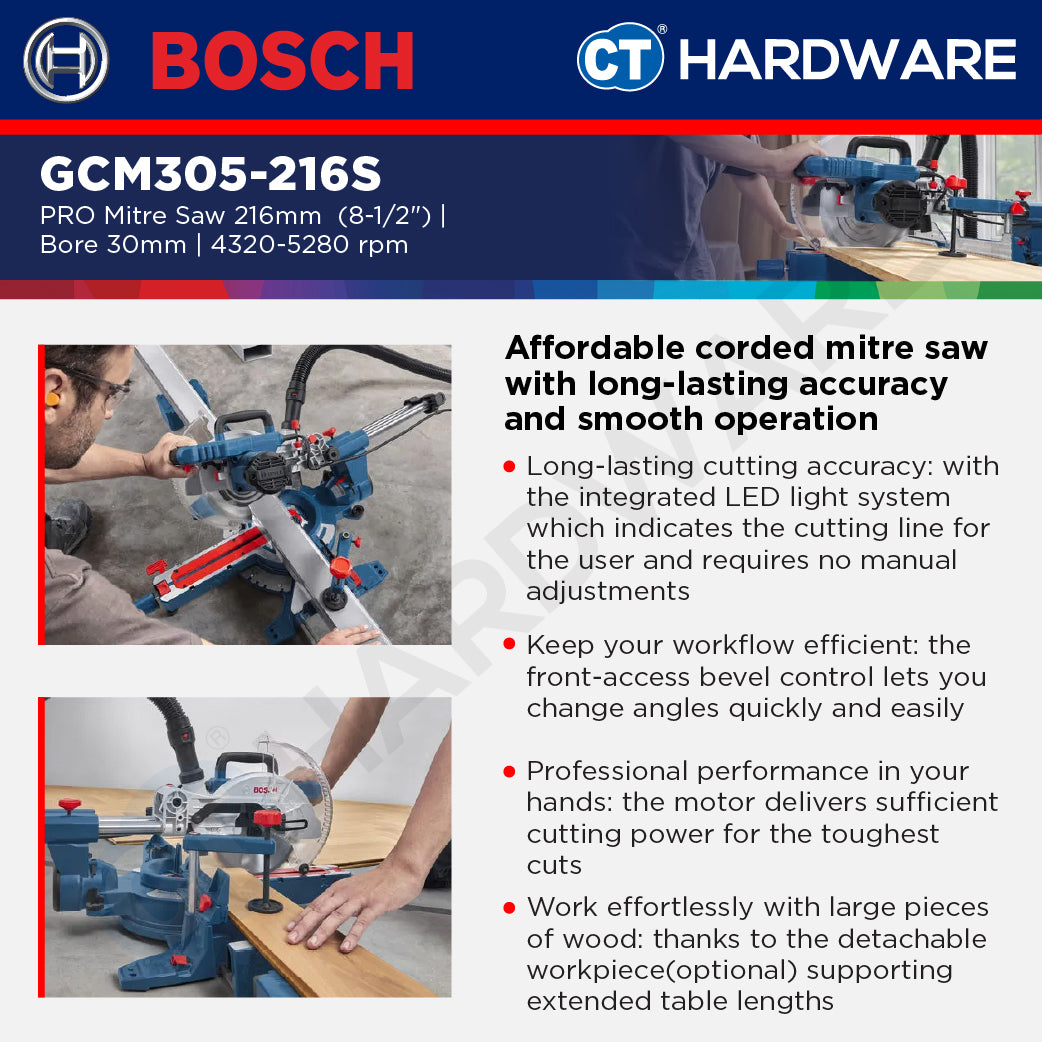

The Bosch PRO GCM305-216S is designed for accurate crosscutting, mitre and bevel cutting in wood and aluminium. Its integrated LED system projects the cutting line without manual calibration, while the front-mounted bevel control makes angle adjustments easier during repetitive work.

Key Features

• 216mm saw blade
• Up to 315mm cutting width at 0°
• 4,320–5,280rpm variable no-load speed

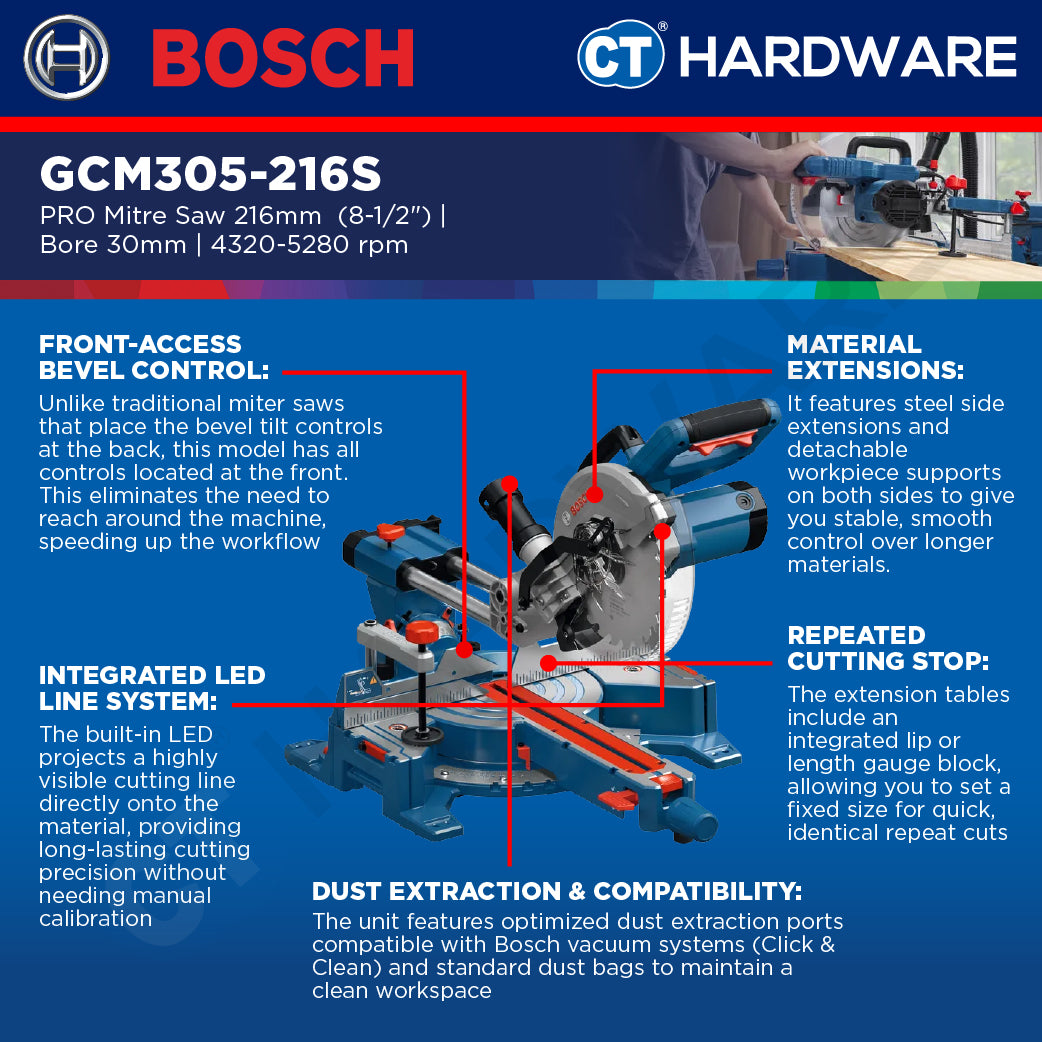

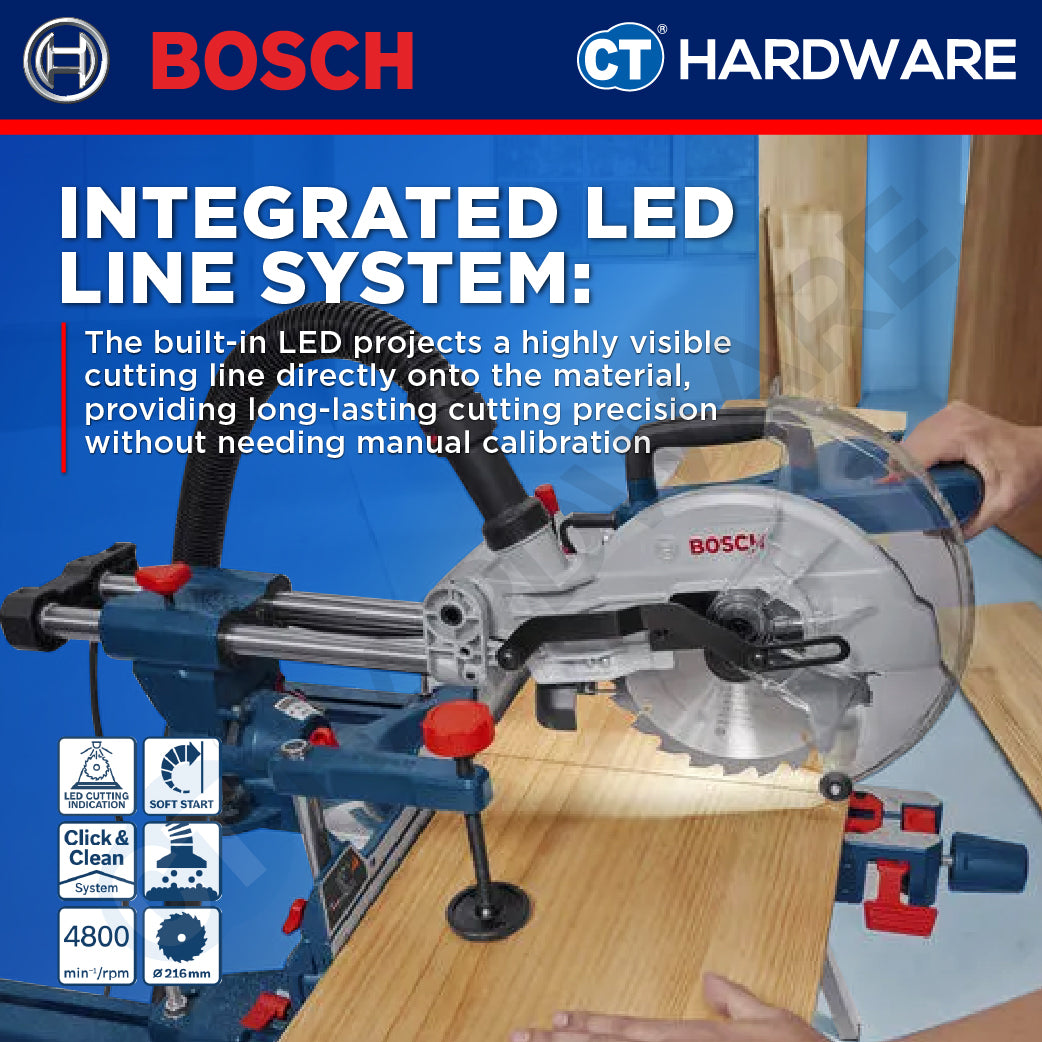

• Integrated LED cutting-line indicator

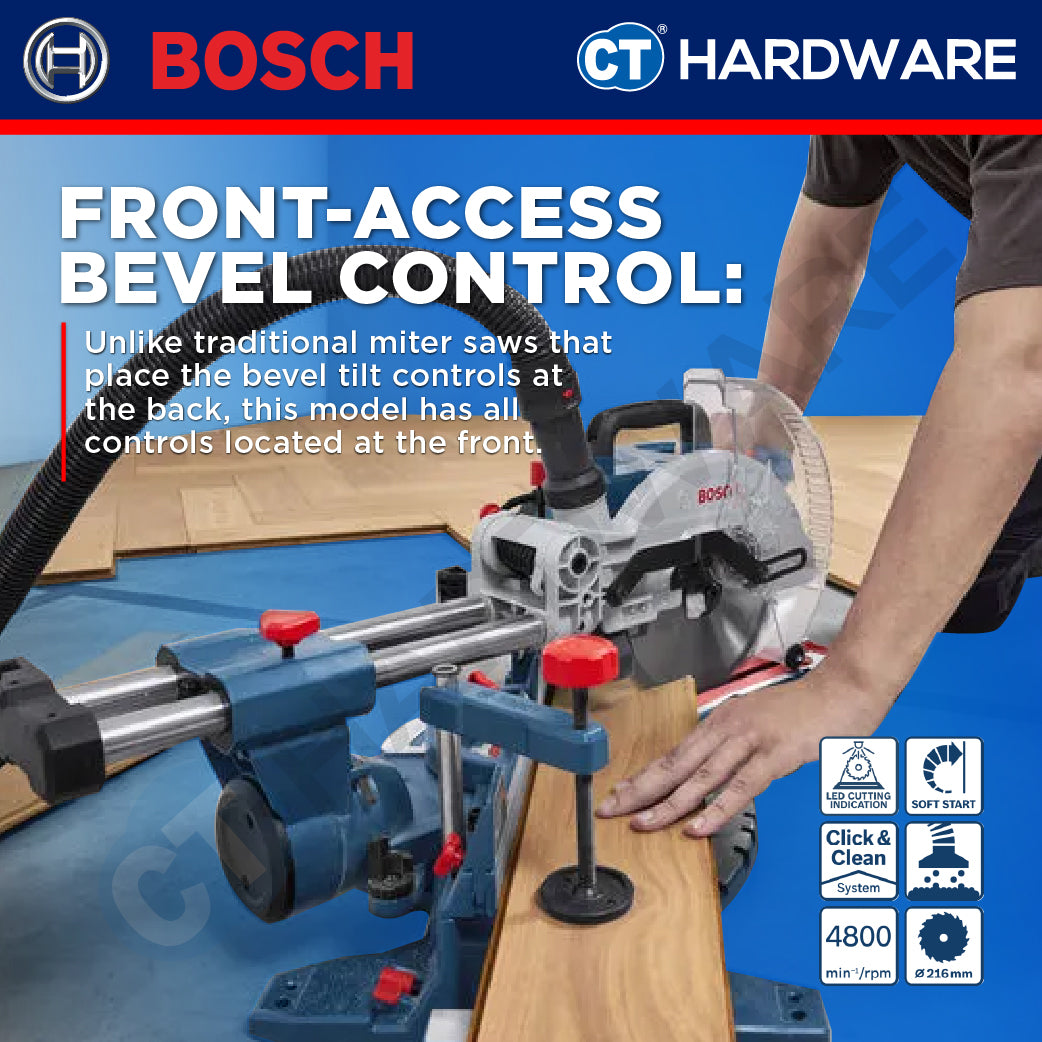

• Front-access bevel control
• 48° left / right mitre range
• Compatible with Bosch saw stands
• Compatible with Bosch dust extraction system
• Side extensions for large workpieces

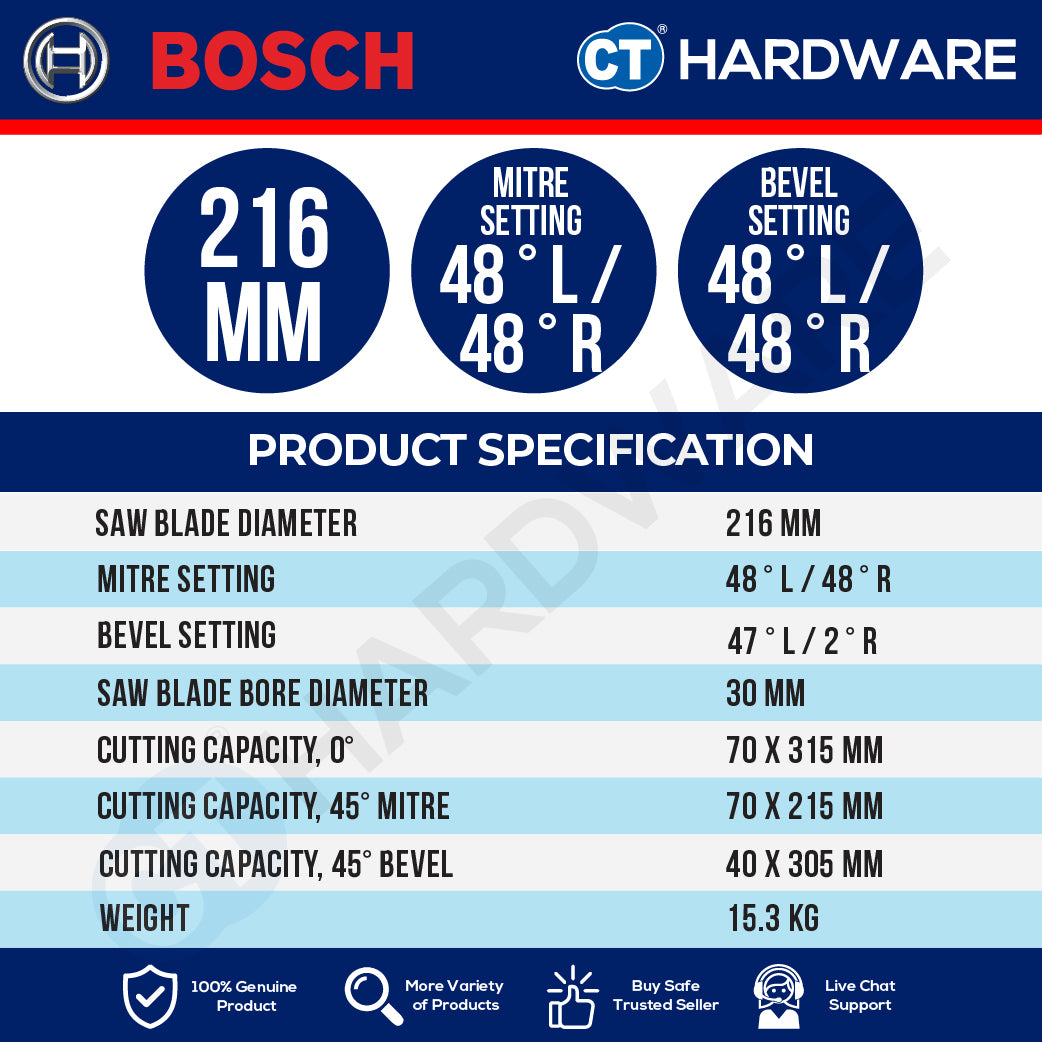

Specifications

• Model: GCM305-216S
• Saw Blade Diameter: 216mm
• Bore Diameter: 30mm
• No-Load Speed: 4,320–5,280rpm
• Mitre Range: 48° Left / 48° Right
• Bevel Range: 47° Left / 2° Right
• Cutting Capacity at 0°: 70 × 315mm
• Cutting Capacity at 45° Mitre: 70 × 215mm
• Cutting Capacity at 45° Bevel: 40 × 305mm
• Weight: 15.3kg

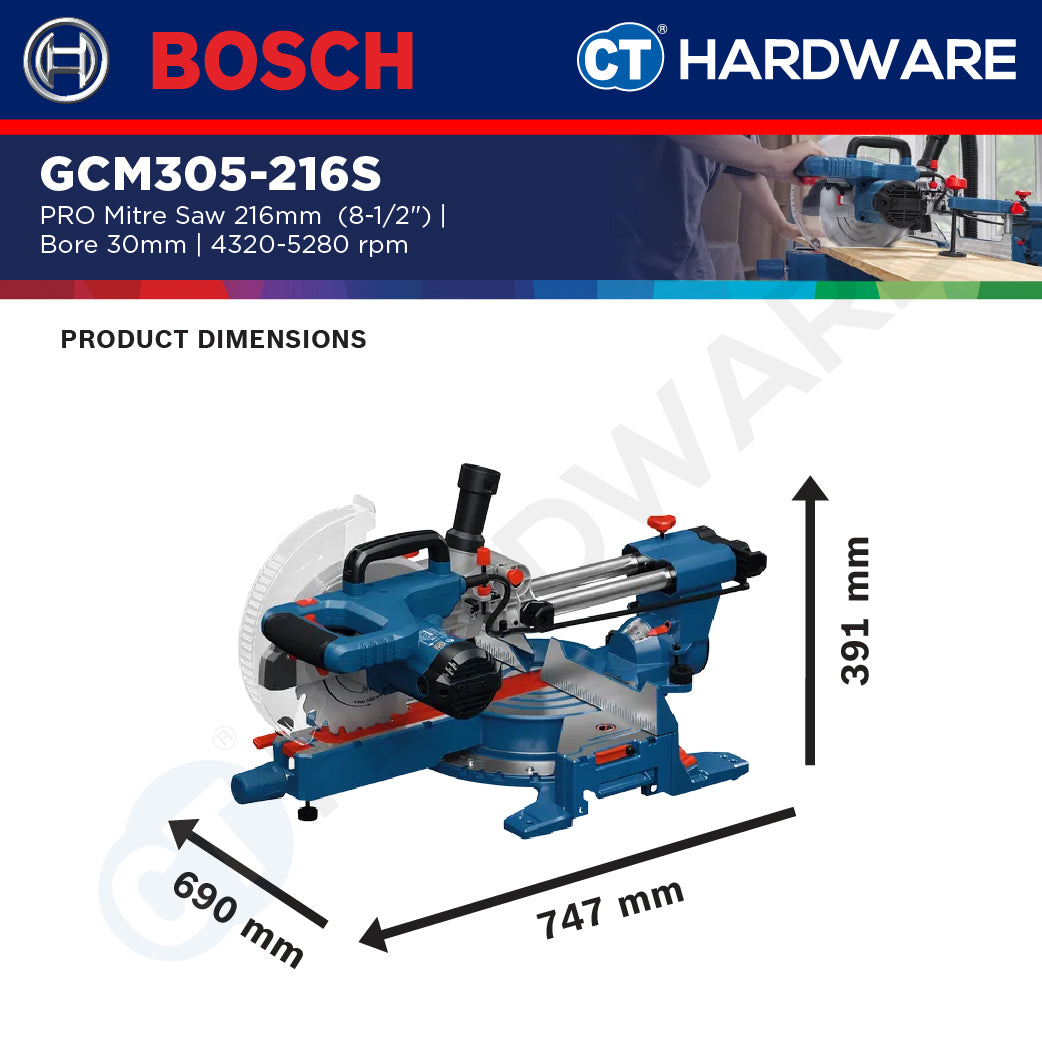

• Tool Dimensions: 493 × 747 × 391mm

Package Contents

• 1 × GCM305-216S Mitre Saw
• 1 × Optiline Wood Circular Saw Blade 216 × 30 × 2.8mm, 24T
• 1 × Dust Bag
• 1 × Vacuum Adapter
• 1 × Clamping Wrench
• 1 × Measuring Ruler
• 1 × Mounting Clamp

Applications

Suitable for:

• Crosscutting wood
• Mitre cuts
• Bevel cuts
• Joinery
• Carpentry
• Flooring
• Aluminium cutting with the appropriate blade
