- Vibration Control for low user fatigue
- LED work light for an optimum view of the work position
- Up to 240 holes in concrete with one battery charge (diameter 6 x 40 mm)
- 3 functions: drilling, hammering, chiselling
- Innovative COOLPACK batteries ensure optimum heat dissipation and therefore increase lifetime by up to 100% (cf. Li-Ion batteries without COOLPACK)
- Bosch Electronic Cell Protection (ECP): protects the battery against overload, overheating and deep discharge
- Faster than average charging time: Battery charged to 80% after only 25 minutes
- Up to 50% faster work rate due to higher single impact energy and 100% more lifetime compared to predecessor
- Absolute control if the drill bit jams thanks to Bosch KickBack Control (KBC)
- Bosch Electronic Precision Control (EPC) adjusts performance to provide optimum results in sensitive materials
🚫 Discontinued / No Longer Available
This model is no longer produced or sold. Please see recommended alternatives below.
Service & spare parts support may still be available. Contact our service centre.
FEATURES
SPECIFICATIONS
Performance data
| Max. impact energy | 3.2 J |
| Impact rate at rated speed | 0 – 4.200 bpm |
| Rated speed | 0 – 940 rpm |
| Bit holder | SDS-plus |
Battery and power
| Battery voltage | 36 V |
| Battery capacity | 4,0 Ah |
Size and weight

| Length | 407,0 mm |
| Width | 108,0 mm |
| Height | 246,0 mm |
Drilling range
| Drilling dia. in concrete with hammer drill bits | 4 – 28 mm |
| Opt. app. range in concrete with hammer drill bits | 8 – 18 mm |
| Max. drilling diameter in steel | 13 mm |
| Max. drilling diameter in wood | 30 mm |
Noise/vibration information
Measured values determined according to EN 60745. Total vibration values (vector sum of three directions).
| Hammer drilling in concrete | |
| Vibration emission value ah | 14,5 m/s² |
| Uncertainty K | 1,5 m/s² |
| Noise | |
| Sound pressure level | 90 dB(A) |
| Sound power level | 101 dB(A) |
| Uncertainty K | 3 dB |
![]() |
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology |
![]() |
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology |
![]() |
Optimal protection of the cells against excessive heat due to special, heat conductive housing |
![]() |
Optimal power transmission for small hammers |
![]() |
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles |
![]() |
Enhanced tool control for superior results in delicate materials even with impact - thanks to performance adjustment with slow ramp-up and reduced maximum performance |
![]() |
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool |
![]() |
|
![]() |
Easy and precise control of the RPM thanks to variable speed |
![]() |
Best work results with constant speed thanks to electronic regulation of speed - even under load |
![]() |
|
![]() |
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque |
![]() |
Bosch SDS System Fast, tool-free changing of application tools. |
![]() |
Battery 100% compatible with all tools within its voltage class Choose the XL battery for longest runtime or the compact battery for best handling |
![]() |
Battery charge level indicator shows the level of remaining battery charge |
![]() |
Auxiliary handle |
![]() |
|
![]() |
Comfortable handling of the tool thanks to softgrip |
![]() |
Combi hammer with chisel function No rotary motion; impact effect only |
![]() |
Convenient adjustment of the chisel position enabling you to adapt it to each work situation |
![]() |
Metalworking The professional power tools for metalworking from Bosch. |
![]() |
Construction The professional power tools for construction from Bosch. |
![]() |
Woodworking The professional power tools for woodworking from Bosch. |

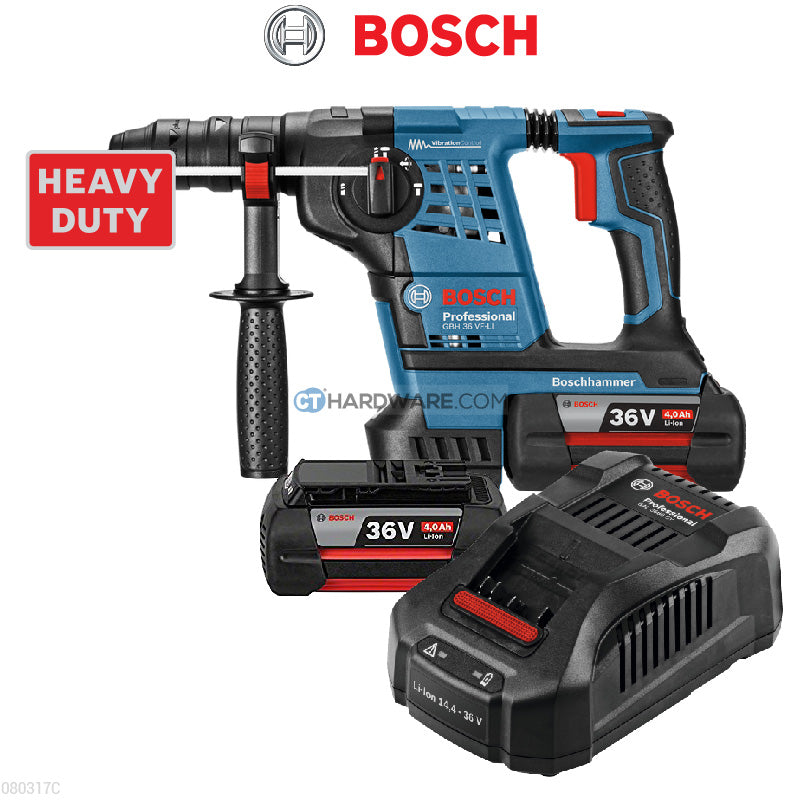

WHAT'S IN THE BOX?
2 x battery GBA 36V 4.0 Ah
1 x Auxiliary handle
1 x Carrying case
1 x Depth stop 310 mm
1 x Keyless chuck
1 x SDS-plus quick-change chuck
1 x Quick charger
