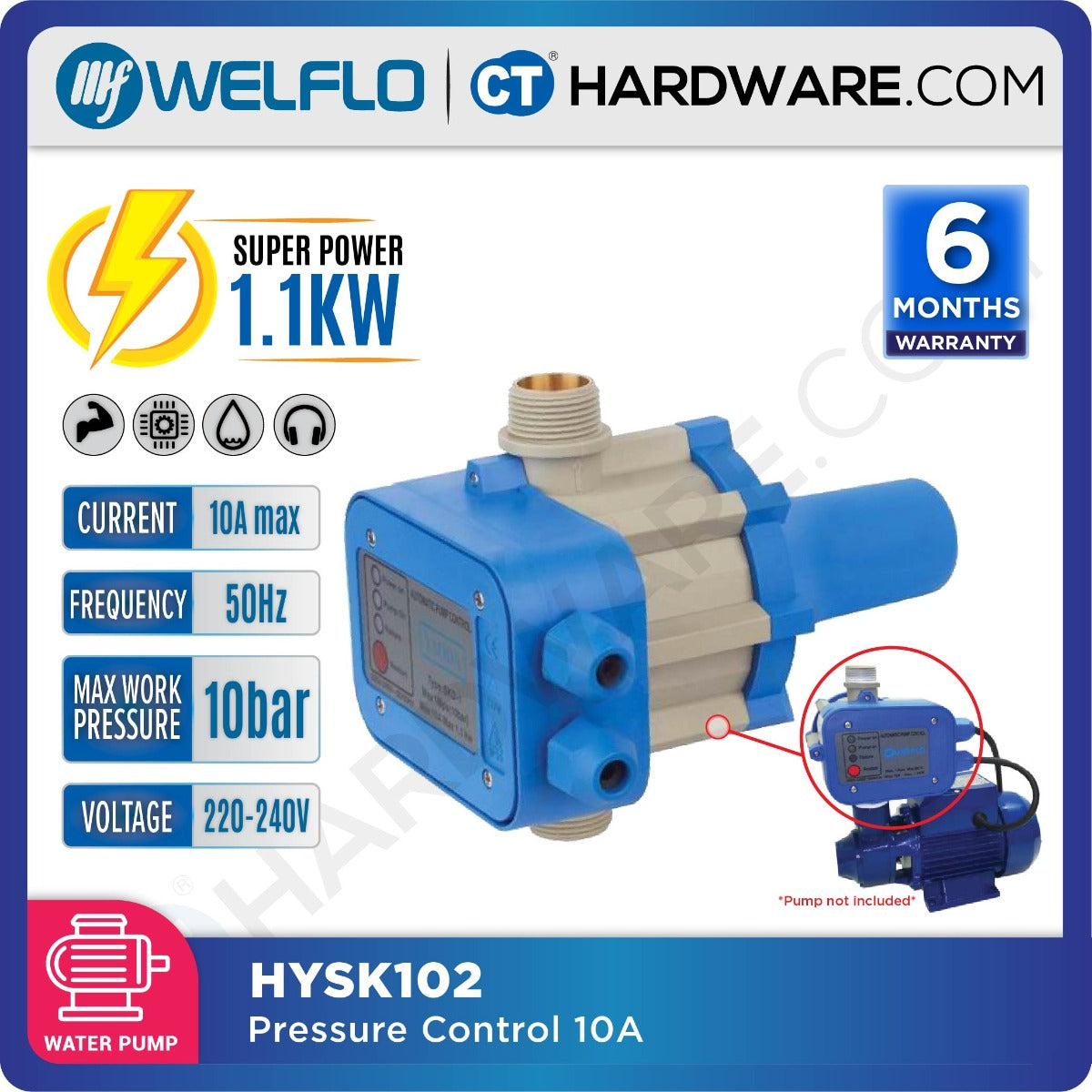

WELFLO HYSK102 PRESSURE CONTROL 10A* ( OMRON RESISTOR ) FOR WATER PUMP

The Electronic Controller PC10 orders the automatic start and stop of the water pump when opening or closing any tap or valve of the system. The controller can keep constant pressure and water flow in the system as long as any tap in the system is open during the pump operation.

For single-phase pumps with a maximum current of 10A

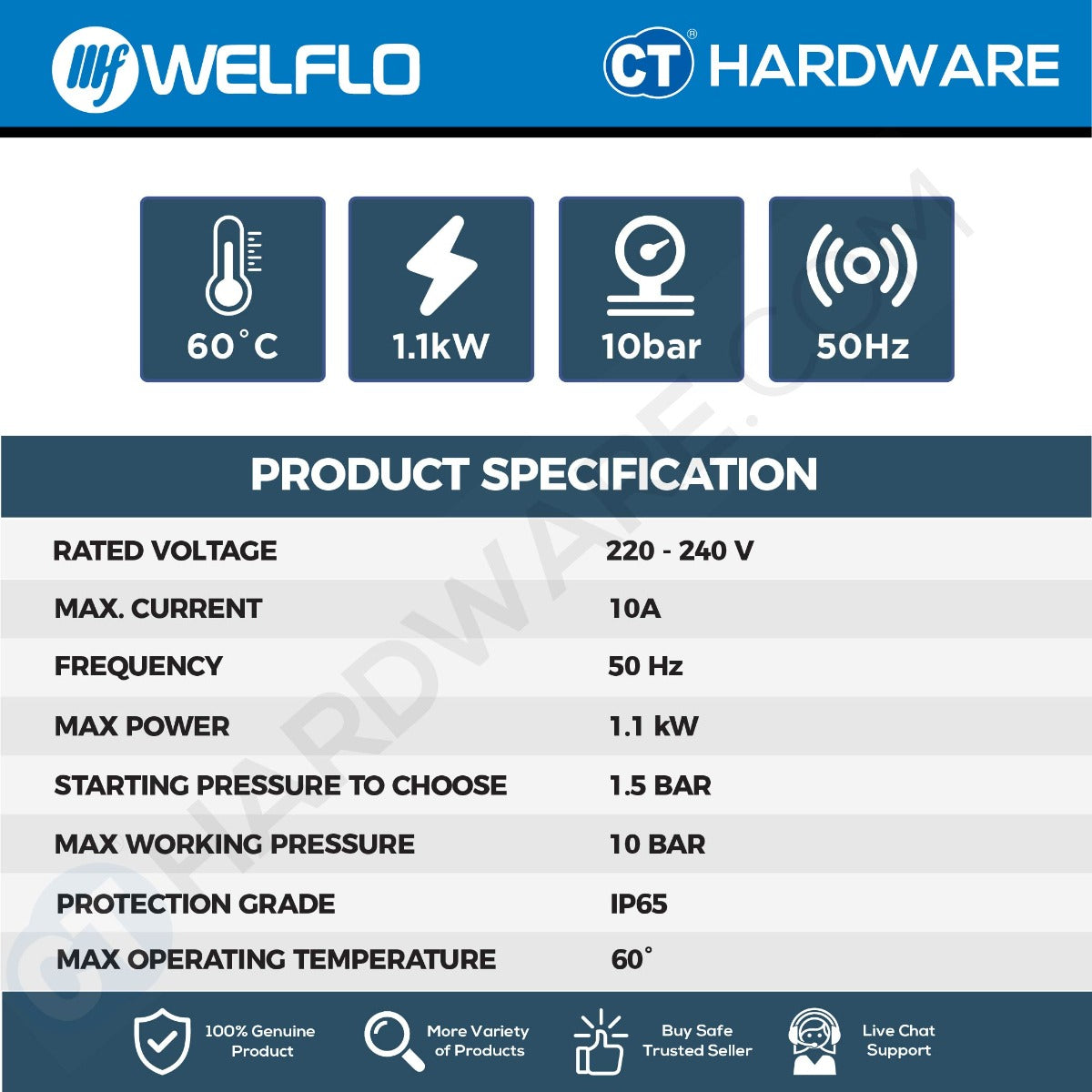

FEATURES:

• Rated voltage: 220V-240V
• Max. Current: 10A
• Frequency: 50Hz
• Max. Power: 1.1KW
• Starting pressure to choose: 1.5 bar
• Max. Working pressure: 10 bar
• Protection grade: IP65
• Joint screw: R1"
• Max. Operating temperature: 60 degrees centigrade
•

Coverage: As a completely new device, it can guarantee the Optimum control of electric pumps used in a plumping system. Being an intelligent mix of hydraulic and electronic engineering. The control maintains both pressure and flow and controls the operation of the pump automatically. It needs no pressure tank as in the traditional systems. There are no plenum chambers to recharge and no irritating variation in pressure and inflow at the point of use. No adjustment or maintenance is required, it is absolutely dependable durable, and simple to install. Function- The starting operation is archived. The unit is programmed to perform all the pump control operations automatically. When particular operational breakdowns occur, such as water failure, obstruction of the suction pipe, etc., the unit recognizes the breakdown and red LED failure lights up, at the same time a stop signal is sent to the pump to prevent damages caused by its working in the absence of water. Rectification of the failures that have caused the blockage, allows the system to be restarted by pressing the reset button-
