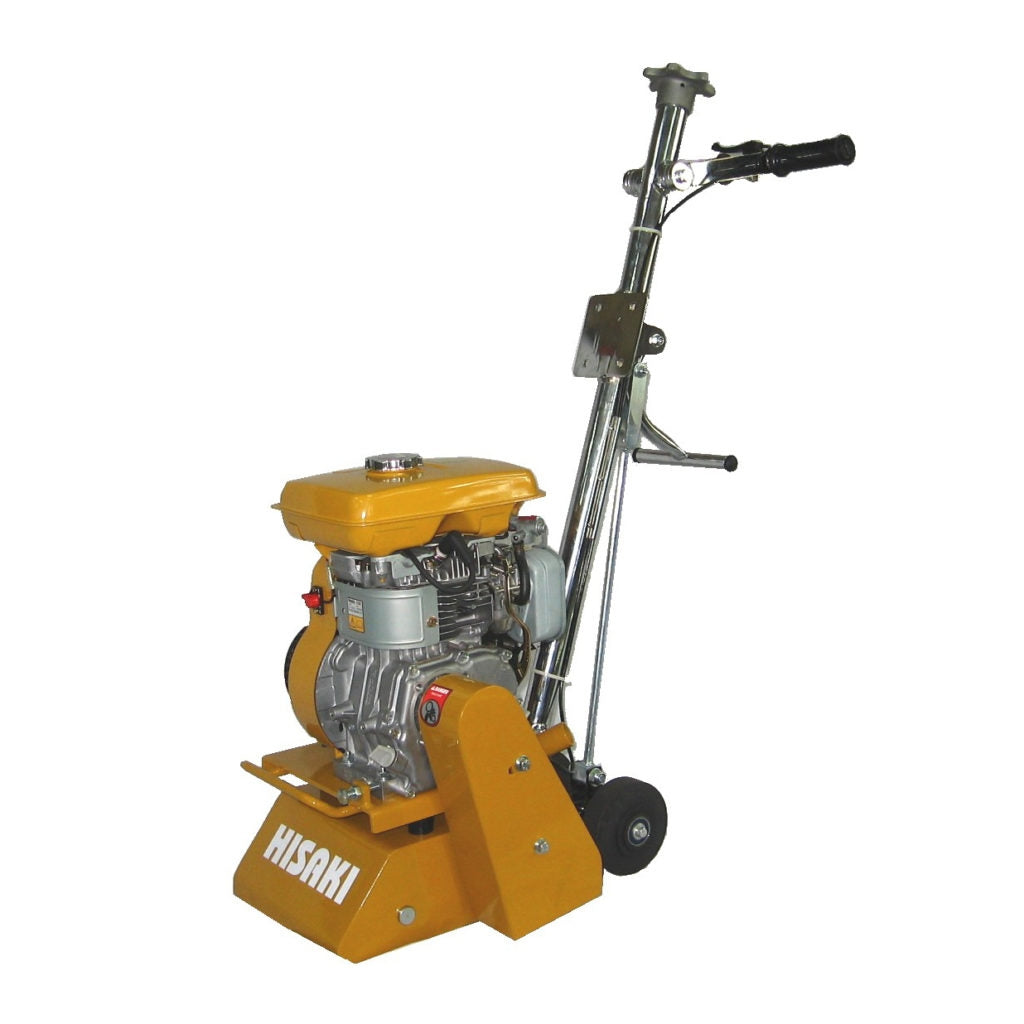

Hisaki Floor Scarifier YCS200 c/w Robin Engine EY20

Hisaki Floor Scarifier YCS200 c/w EY20 Robin Engine

YCS200 Floor Scarfier is a perfect for small to medium jobs. Floor Scarifier is a flexible machine for a wide variety of applications of surface preparation and material removal. It can remove concrete faster and more aggressively than grinders.

The ridged steel chassis ensures a strong, stable machine suitable for accurate surface preparation of concrete and steel surfaces, removing coatings, levelling and texturing.

Features:

○ Machine can be set to a cutting depth and retain this depth after lifting or cornering, just by pulling up a quick lift lever, enabling the operator to resume work quickly and effortlessly.
○ Adjustable handle for different operator height and easy storage.
○ High carbon steel drive shaft and quality sealed bearings to ensure longer life.
○ Accurate cutting depth adjustable with fine-tuning adjustment knob.
○ Front mounted lifting handle and engine lifting bar provided for easy and safe handling.
○ Anti vibration mounting to ensure operator's comfort.
○ Powder coated finish for lasting appearance.
○ Dust control outlet to minimize emission of dust particles during operation.
○ Controls located on handle for easy access.
○ 76pcs of TCT cutter inserted with tungsten carbide tips effectively for concrete planing, removal of road markings and floor coatings.

APPLICATIONS

○ Suitable for smaller jobs and where manoeuvrability is important
○ Removal of hard coatings
○ Levelling and removing layers of hard materials such as concrete
○ Removing painted lines
○ Grooving and texturing concrete

Technical Data

Model: YCS200
Engine Model: EY20 ROBIN
Engine Power: 5 HP / 4-Stroke
Working Width (mm): 200
Max. Cutting Dept (mm): 3
Cutter Speed (rpm): 2,600
TCT Cutter Quantity (pc): 76
Washer Quantity (pc): 84
Weight (kg): 62
Dimension LxWxH (mm): 905x400x1105
