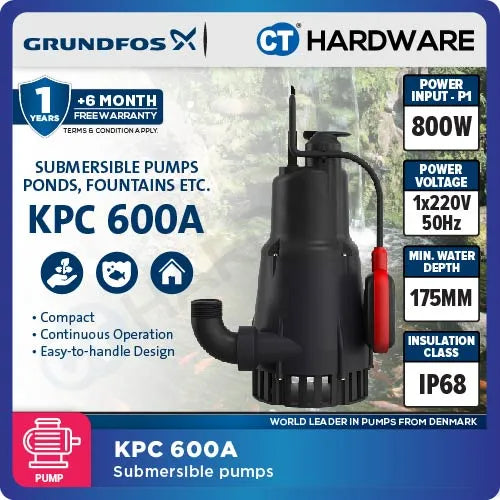

Grundfos KPC 600 A Automatic Submersible Drainage Pumps 0.55kW [KPC600A]

The Grundfos KPC 600 A Automatic Submersible Drainage Pump is a high-performance solution for a wide range of water movement needs. Equipped with a 0.55kW motor and designed for automatic operation with a built-in float switch, this pump delivers a maximum flow rate of 266 liters per minute and a head of up to 10 meters. Its robust construction and reliable performance make it ideal for applications such as fish ponds, fountains, waterfall features, and general drainage tasks.

Thanks to its compact, easy-to-handle design, it can also be used as a portable pump for emergencies such as lifting water from tanks or rivers, emptying swimming pools, fountains, excavations and underpasses. It is also ideal for gardening and hobbies in general.

The pumps are fitted with a semi-open multi-vane impeller capable of handling solids up to 10 mm size. The level switch allows permanent installation and guarantees automatic pump operation.

Key Features

• Automatic Operation with Float Switch

  • Built-in float switch enables automatic start and stop based on water level.
  • Protects the pump from running dry, enhancing longevity and energy efficiency.

• Powerful Performance

  • Motor Power: 0.55kW (0.75 HP) ensures efficient water movement.
  • Flow Rate: Up to 266 liters per minute, suitable for various applications.
  • Head (Pressure): Maximum head of 10 meters for effective water circulation and lifting.

• Durable Design

  • Constructed with high-quality materials for long-lasting performance.
  • IP68 Protection Class for reliable submersion and operation in water.

• Versatile Applications

  • Ideal for fish ponds, ensuring proper water circulation and oxygenation.
  • Perfect for fountains and waterfall features, enhancing aesthetic appeal.
  • Suitable for drainage tasks in basements, sumps, and flooded areas.

• Easy Installation and Maintenance

  • Equipped with a 1-1/4" outlet for straightforward connection to hoses or pipes.
  • Lightweight design for easy handling and installation.
• 1 Year Warranty + 6 Months (e-register)

Benefits

• Enhance Aquatic Environments: Improve water quality and circulation in fish ponds, promoting a healthy ecosystem.
• Aesthetic Appeal: Create stunning fountains and waterfall features with smooth and reliable water flow.
• Automatic Operation: Built-in float switch allows for unattended operation, providing convenience and peace of mind.
• Effective Drainage: Quickly remove unwanted water from flooded areas, basements, and construction sites.
• Low Energy Consumption: Efficient motor design minimizes energy costs during continuous operation.
• Long Service Life: Robust construction ensures durability and reduces the need for frequent replacements.

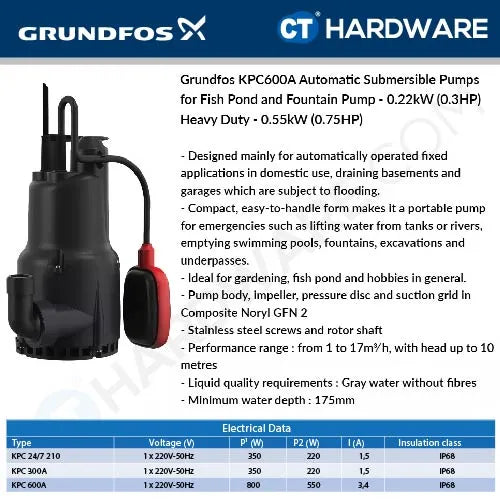

Technical Specifications

• Model: KPC 600 A
• Product Code: 98917603 (KPC600A)
• Motor Power: 0.55kW (0.75 HP)
• Voltage: Single Phase (1PH), 230V, 50Hz
• Maximum Flow Rate: 266 liters per minute
• Maximum Head: 10 meters
• Outlet Connection: 1-1/4" BSP
• Operation: Automatic with built-in float switch
• Material:
  • Pump Body: Composite
  • Impeller: NORYL GFN2
  • Motor House: Stainless steel
• Protection Class: IP68 (suitable for submersion)
• Cable Length: 10m

Applications

• Fish Ponds: Maintains proper water circulation and aeration, essential for fish health.
• Fountains and Waterfall Features: Provides steady water flow for decorative water features.
• Garden Irrigation: Suitable for small-scale irrigation systems.
• Drainage Tasks:
  • Basements and Cellars: Removes floodwater efficiently.
  • Sumps and Wells: Ideal for automatic emptying of sumps.
  • Construction Sites: Assists in dewatering excavations and trenches.

Installation Guidelines

• Location: Submerge the pump fully in the water to be pumped.
• Mounting: Place the pump on a stable surface to prevent tipping or movement.
• Connection: Attach a suitable hose or pipe to the 1-1/4" outlet. Ensure secure connections to prevent leaks.
• Electrical Connection: Connect to a suitable power supply with proper grounding. Use a Residual Current Device (RCD) for safety.
• Operation:
  • Automatic: The built-in float switch will start and stop the pump based on water level.
  • Continuous Use: Designed for reliable operation, but regular monitoring is recommended.

Why Choose the KPC 600 A Submersible Drainage Pump?

• Versatility: Suitable for a wide range of applications, from decorative water features to essential drainage tasks.
• Automatic Operation: Built-in float switch allows for unattended operation, adding convenience.
• Reliable Performance: Efficiently handles water movement needs with consistent results.
• Durable Construction: Built to withstand continuous use in various environments.
• Energy Efficient: Low power consumption saves on energy costs.
• Ease of Use: Simple installation and maintenance make it accessible for both professionals and DIY enthusiasts.

Order Yours Today

Enhance your water management system with the Grundfos KPC 600 A Automatic Submersible Drainage Pump. Whether you're maintaining a fish pond, creating a beautiful fountain, or tackling drainage tasks, this pump delivers reliable and automatic performance. Order now and experience efficient water movement tailored to your needs.
