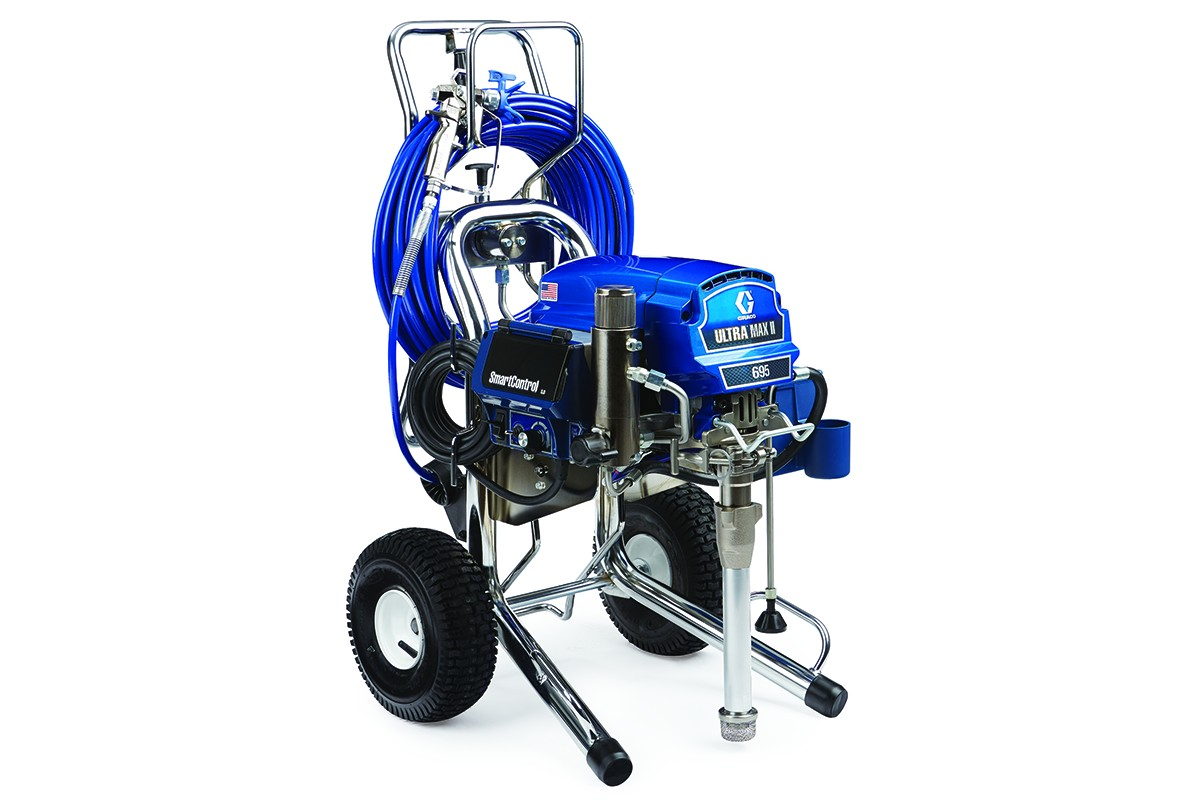

Graco Ultra Max II 695 Airless Paint Sprayer (16Y639) Hi-Boy Cart Pro Contractor

Graco Ultra Max II 695 - Electric Airless Paint Sprayer

The industry standard for professional contractors who spray a variety of residential coatings, commercial and industrial jobs.

With a 2.0 hp brushless DC motor, the Ultra Max II 695 is a rock-solid performer for the professional residential contractor who sprays a wide variety of coatings. It can handle a wide variety of tip sizes and has outstanding proven reliability. Now with higher performance allowing you to get your job done faster !

FEATURES

○ Advantage Drive System Runs quiet and has a lifetime guarantee.
○ MaxPower Brushless DC Motor – Never change brushes with this maintenance-free, totally enclosed motor.
○ SmartControl 3.0 Pressure Control – Delivers consistent spray fan without pressure fluctuations at all spraying pressures, and includes ProGuard technology.
○ Endurance Pump – Amazingly durable and easy-to-service design means less downtime on the job.
○ Easy Out Pump Filter – Spill less material when removing the filter element.
○ Rugged Cart Design – Chrome over steel makes this durable cart last for years.
○ Heavy-Duty Prime Valve – Maintenance-free design withstands high pressure dumping.

The ProContractor Series sprayer has all the features of the Standard Series, plus:
○ QuikReel – Deploy and rewind up to 300 ft of hose in seconds without twists or coils.
○ LED Display – Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics.
○ WatchDog Pump Protection System – Saves the pump from damage when paint or texture material runs out or a hose breaks.
○ ProConnect 2 Pump Removal System – Change out the pump using no tools in seconds resulting in quickly getting back to work.
○ FastFlush Cleaning System – Cleans the unit four times faster using only half the water.
○ On-Board Toolbox – End frustration and save time by never again searching for tips, filters, and tools.
○ Ready to Spray – Save setup time, thanks to the 100 ft of hose and gun that’s already attached and ready to use.

ProContractor series unit includes:

• Contractor Gun
• RAC X 517 SwitchTip and Guard
• 2 each - 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose

Technical Data

Model: 16Y639

Sprayer
Maximum Delivery
International Models: 2.8 lpm
Maximum Tip Size: 0.031" - 1 Gun ; 0.019" - 2 Guns
Max PSI (Bar): 3300 (227)
Fluid Outlet npsm: 1/4 in
Cycles: 60 per liter
Generator Minimum: 5000 W
230V, A, Hz: 9, 50/60

Dimensions
Weight: 50 kg
Height: 99 cm
Length: 75 cm
Width: 57.2 cm
Wetted parts: zinc- and nickel-plated carbon steel, nylon, stainless steel, PTFE, Acetal, leather, UHMWPE, aluminum, tungsten carbide, PEEK, brass

Noise Level:
Sound Power, dBa per ISO 3744; measured at 3.1 ft (1 m): 91 dBa
Sound Pressure, dBa per ISO 3744; measured at 3.1 ft (1 m): 82 dBa

Materials: Primers, Stains, Acrylics, Enamels

Applications:
Residential - Interior Walls and Ceilings
Residential - Exterior
Moderate Commercial
Property Maintenance
Garage Doors
