Graco 24H777 Mobile LD 3:1 Oil Pump Package with LDP5 Preset Rigid Meter

Portable LD Series 3:1 Oil Pumps Package c/w LDP5 Preset Rigid Meter

Stay ahead of the competition with LD Series Pumps. These affordable and full featured pumps are designed for lower volume applications and are available in 3:1 and 5:1 for oil and 50:1 for grease. These pumps are fine-tuned for a compact, flexible and still incredibly durable solution.

You work hard to provide good service and that’s exactly what we had in mind when we engineered the LD Series Packages. Whether your delivery is in your backyard or 50 miles away, LD Packages reliably do the job. You can count on Graco equipment to reduce repair hours so you can concentrate on deliveries and bring more to your bottom line.

Features and Benefits

○ Medium pressure, high flow applications
○ Built-In Thermal Relief protects your equipment from thermal expansion without the need to buy and install an additional kit
○ Inlet Strainer (oil only) is built-in to protect pump from containments that can damage your pump

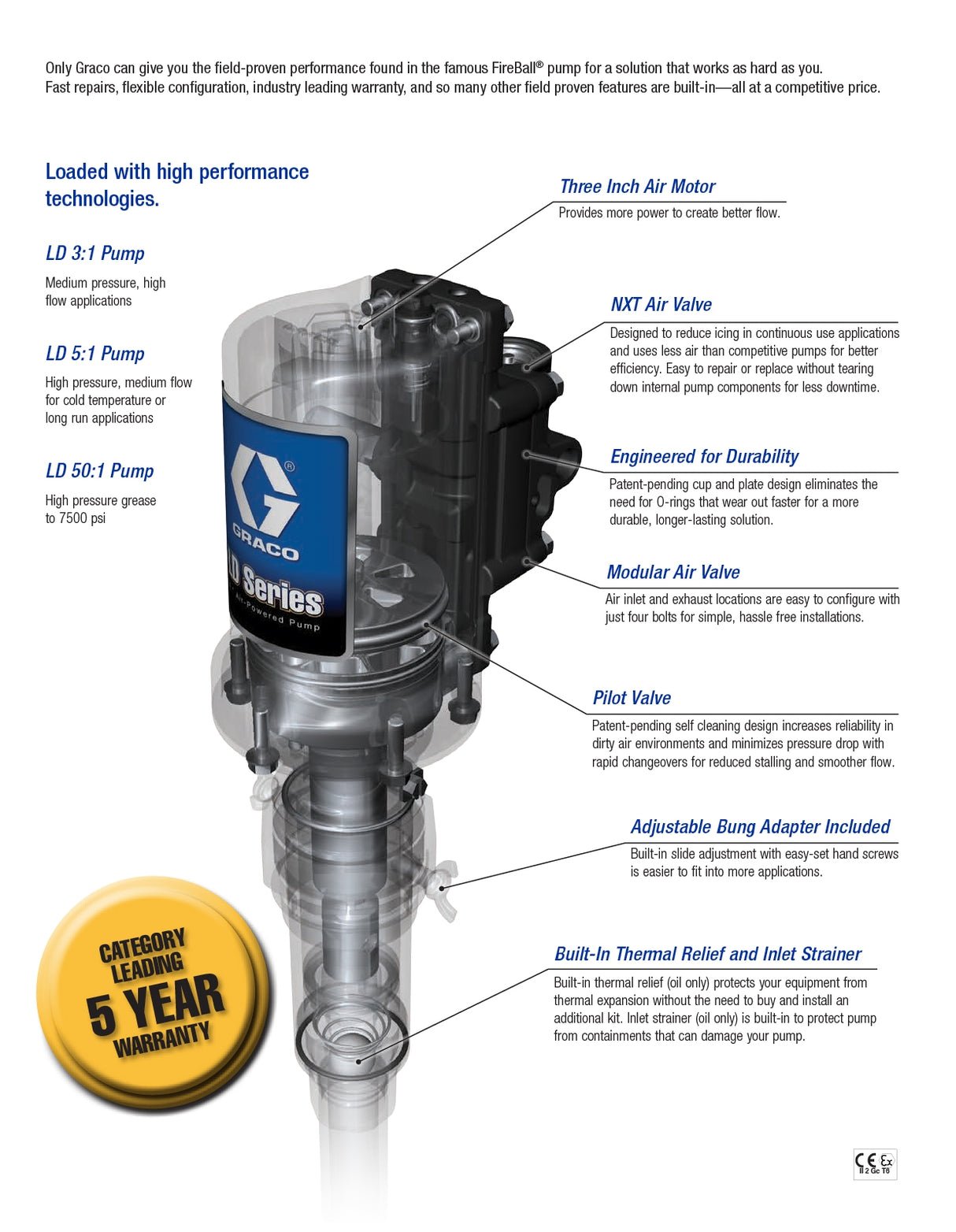

○ Three Inch Air Motor – Provides more power to create better flow
○ NXT Air Valve – Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
○ Modular Air Valve – Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
○ Cup and plate design eliminates the need for O-rings that wear out faster

Typical Applications
○ Lubricant transfer
○ Automotive dealerships
○ Fast lube centers
○ Service shops
○ Lube trucks

Typical Fluids Handled
○ Petroleum and synthetic-based oils

Product Ordering No: 24H777

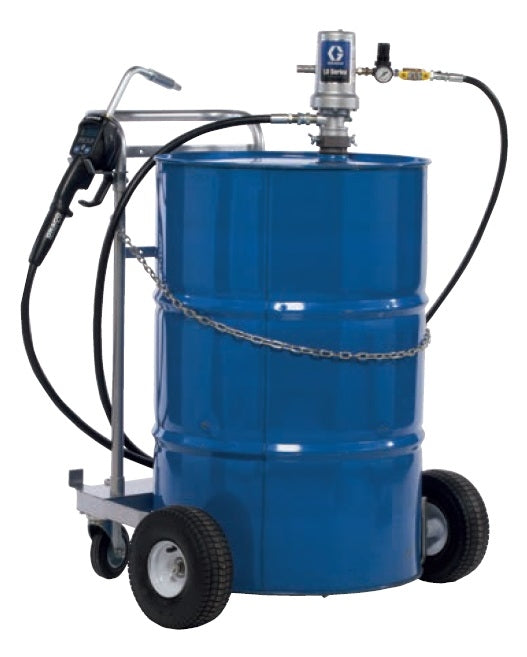

Included:

• Graco LD 3:1 200L Oil Pump (24G582)
• Fluid Hose Kit 5M (24H865)
• 55 Gal Cart (24F915)
• LDP5 Dispense Meter (256216)

Specification

Maximum Fluid Working Pressure: 450 psi (31 bar, 3.10 MPa)
Fluid Pressure Ratio: 3:1
Suction Lift (feet of oil): 10
Air Operation Range : 20 to 150 psi (1.37 to 10.3 bar, 0.137 to 1.03 MPa)
Recommended Air Pressure for Optimum Pump Life: <125 psi (8.6 bar, 0.86 MPa)
Maximum Recommended Pump Speed: 120 cycles/min
Cycles Per Gallon/pound (l/kg): 29 cycles per gallon (7 cycles per liter)
Recommended Speed for Optimum Pump Life: 75 cycles/min and lower
Wetted parts: zinc plated carbon, steel, aluminum, nitrile, polyurethane, nickel plated aluminum
Sound Pressure Level: 72.9 dB(a)
Sound Power Level: 82.0 dB(a)
Approx. Weight: 3.2 kg
Air Inlet: 1/4 in
Fluid Inlet: 1 in
Fluid Outlet: 1/2 in
Free Flow: 7.8 gpm
Annual Usage: Up to 20,000 gal (76,000 l)

Materials: Motor Oil, Gear Oil, Hydraulic Fluid, Automatic Transmission Fluid, Oil, Grease

Applications:

Lubrication
Oil Transfer
Grease Transfer
Pumping
Fluid Transfer
