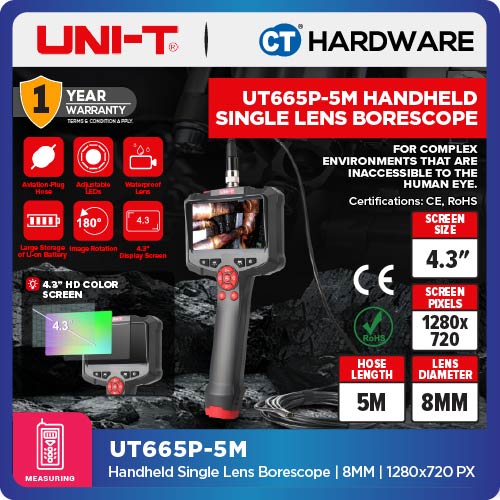

UNI-T UT665P-5M Handheld Industrial Borescope 8mm 5m

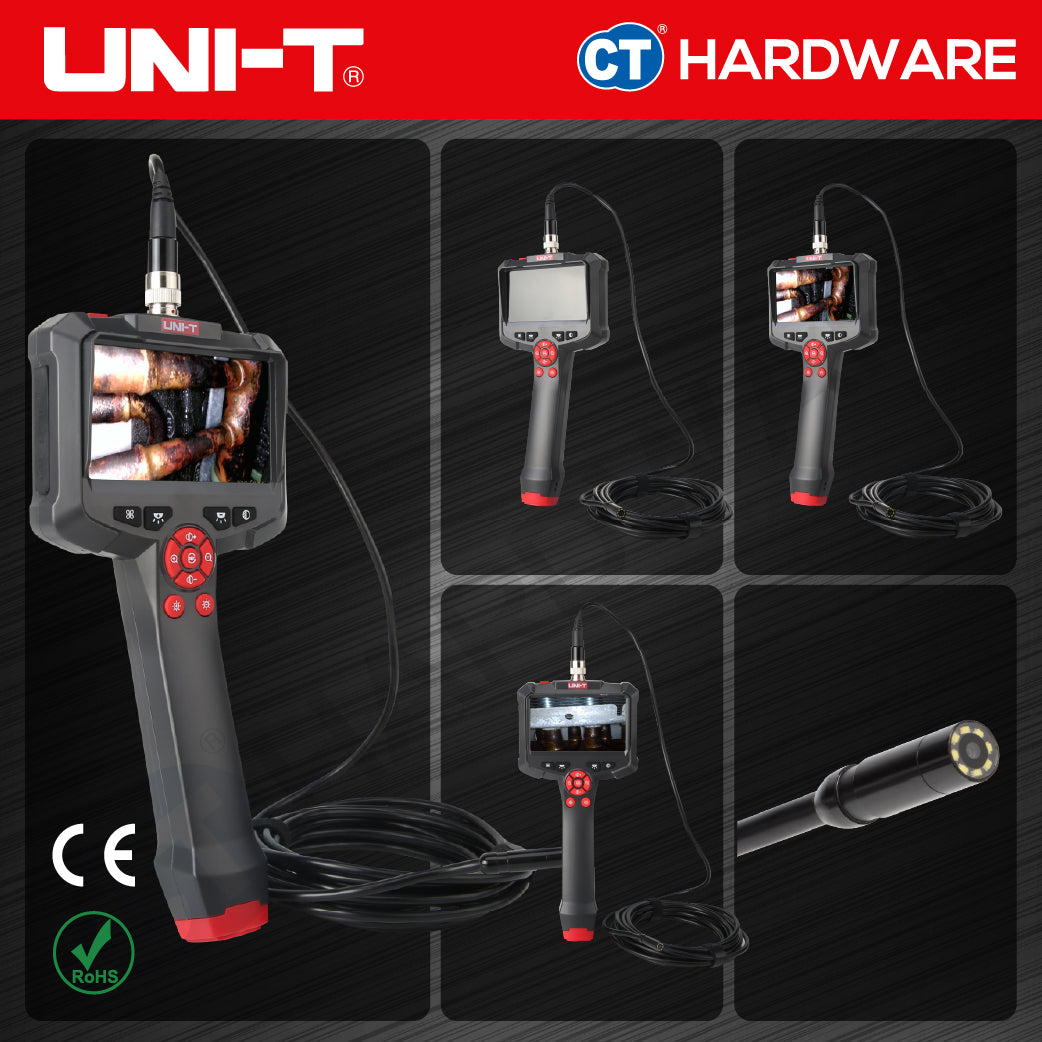

The UNI-T UT665P-5M is a handheld single-lens industrial borescope designed for visual inspection in confined or difficult-to-access areas.

It uses a 5m replaceable hardwire probe with aviation connector and an 8mm IP67-rated camera head, allowing technicians to inspect machinery, pipelines, vehicle components and other areas that cannot be viewed directly.

A large 4.3-inch display with 1280 × 720 screen resolution provides a clear viewing interface, while adjustable LED illumination helps improve visibility in dark inspection areas. UNI-T also equips the unit with image rotation, image adjustment functions and a rechargeable lithium battery for portable field use.

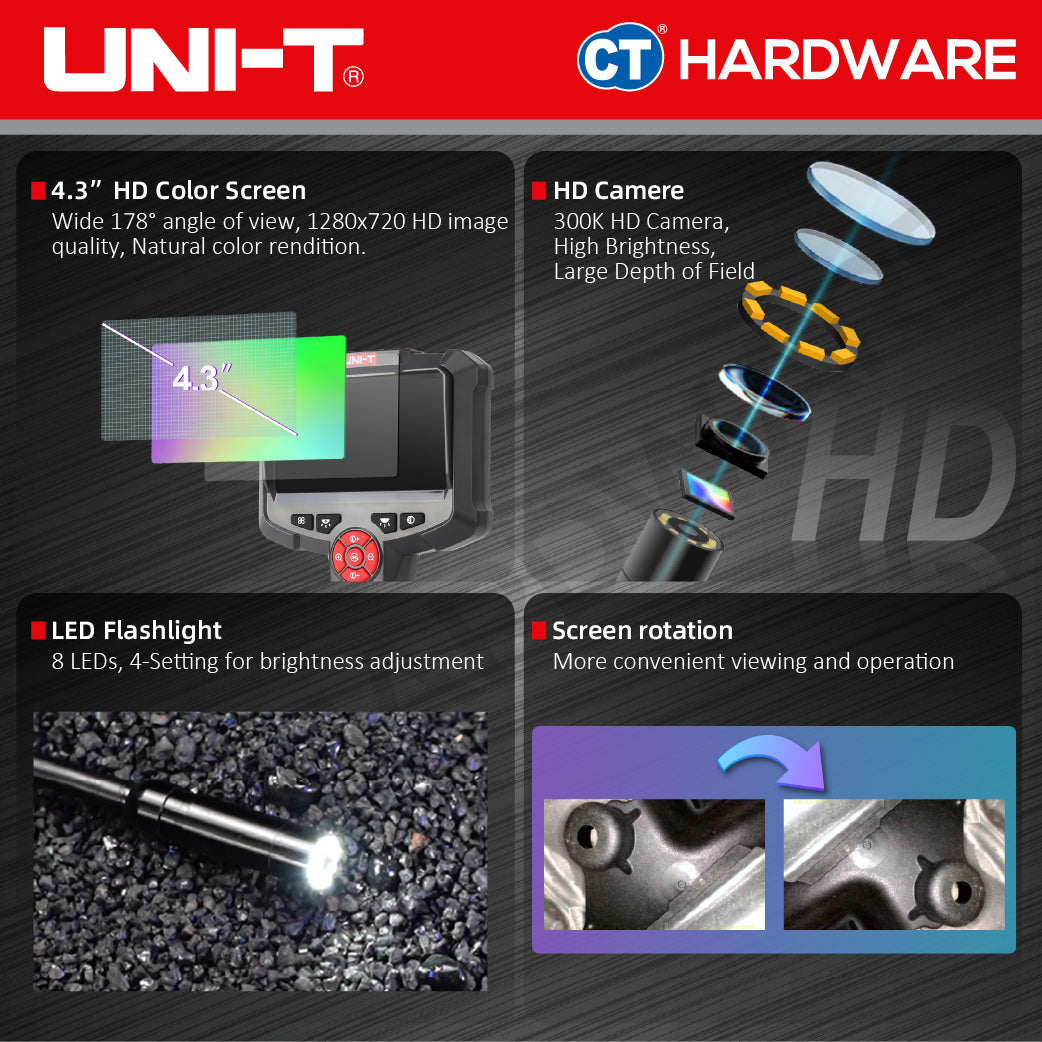

Key Features

• 5m replaceable inspection probe
• 8mm camera head
• IP67-rated camera
• 4.3-inch display
• 1280 × 720 screen resolution
• 8 built-in LEDs with 4 brightness settings
• 70° field of view
• 20–100mm depth of field
• Image rotation
• Image zoom
• Black-and-white image mode
• Colour conversion
• Contrast adjustment
• Screen brightness adjustment
• Rechargeable 2000mAh lithium battery
• Up to approximately 6 hours battery life
• Aviation-plug probe connection
• Anti-slip and shock-resistant ergonomic body

Specifications

• Model: UT665P-5M
• Product Type: Handheld Single-Lens Industrial Borescope
• Display Size: 4.3"
• Display Resolution: 1280 × 720
• Camera Sensor Pixels: 300K
• Lens Diameter: 8mm
• Probe Length: 5m
• Probe Type: Replaceable Hardwire
• Probe Connector: Aviation Plug
• Image Sensor: CMOS
• Field of View: 70°
• Depth of Field: 20–100mm
• LED Lighting: 8 LEDs
• LED Brightness Levels: 4
• Camera Protection Rating: IP67
• Battery: 3.7V / 2000mAh Lithium Battery
• Battery Life: Approx. 6 Hours
• Lens Operating Temperature: 0°C to 80°C
• Working Temperature: 0°C to 45°C
• Working Humidity: Below 90% RH, Non-Condensing
• Interface Language: English

Image Functions

The UT665P series supports:

• Screen rotation
• Contrast adjustment
• Black-and-white image mode
• Colour conversion
• Image zoom in / out
• Screen brightness adjustment

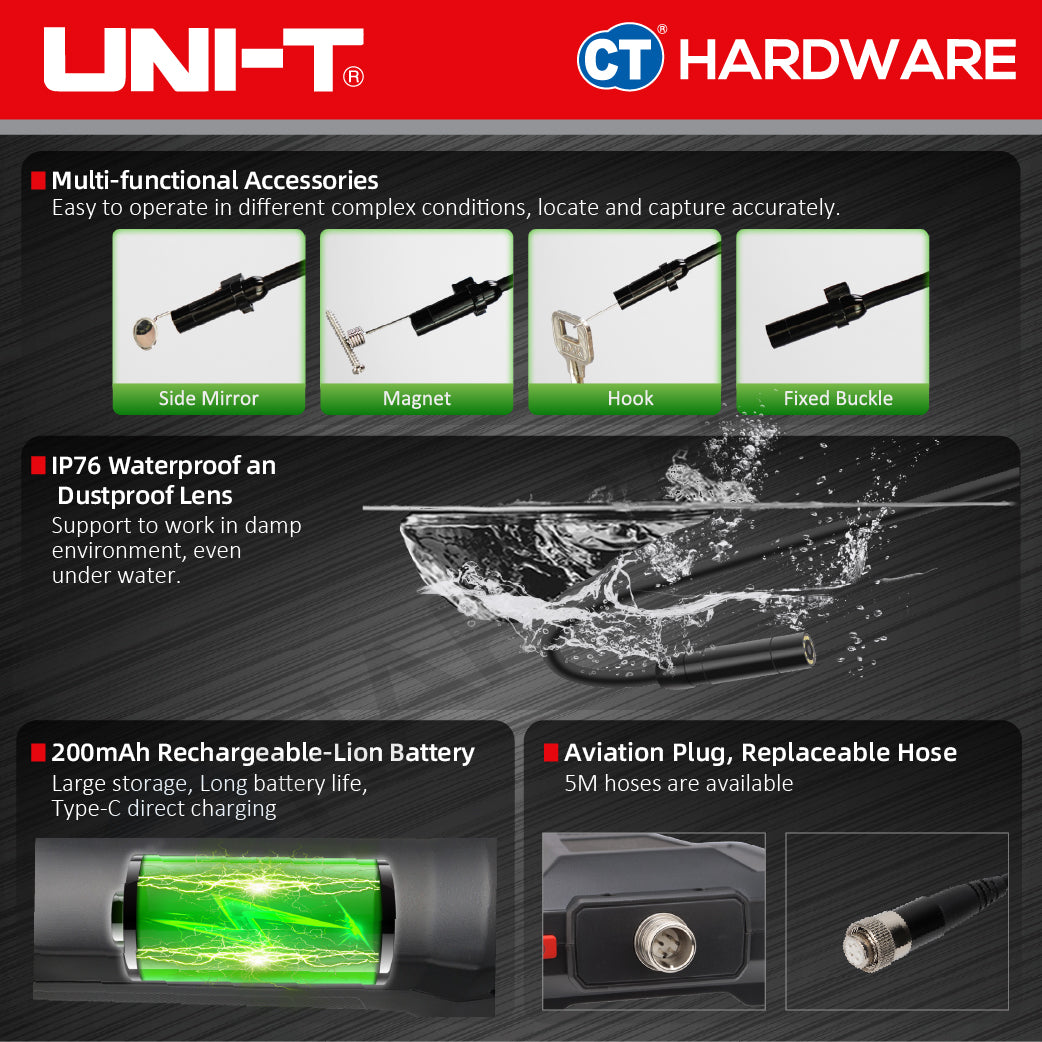

Package Contents

• 1 × UT665P-5M Handheld Industrial Borescope
• 1 × 5m Probe
• 1 × Type-C Cable
• 1 × Hook
• 1 × Side Mirror
• 1 × Magnet
• 3 × Fixed Buckles
• 1 × User Manual
• 1 × Gift Box
• 1 × Blister Tray

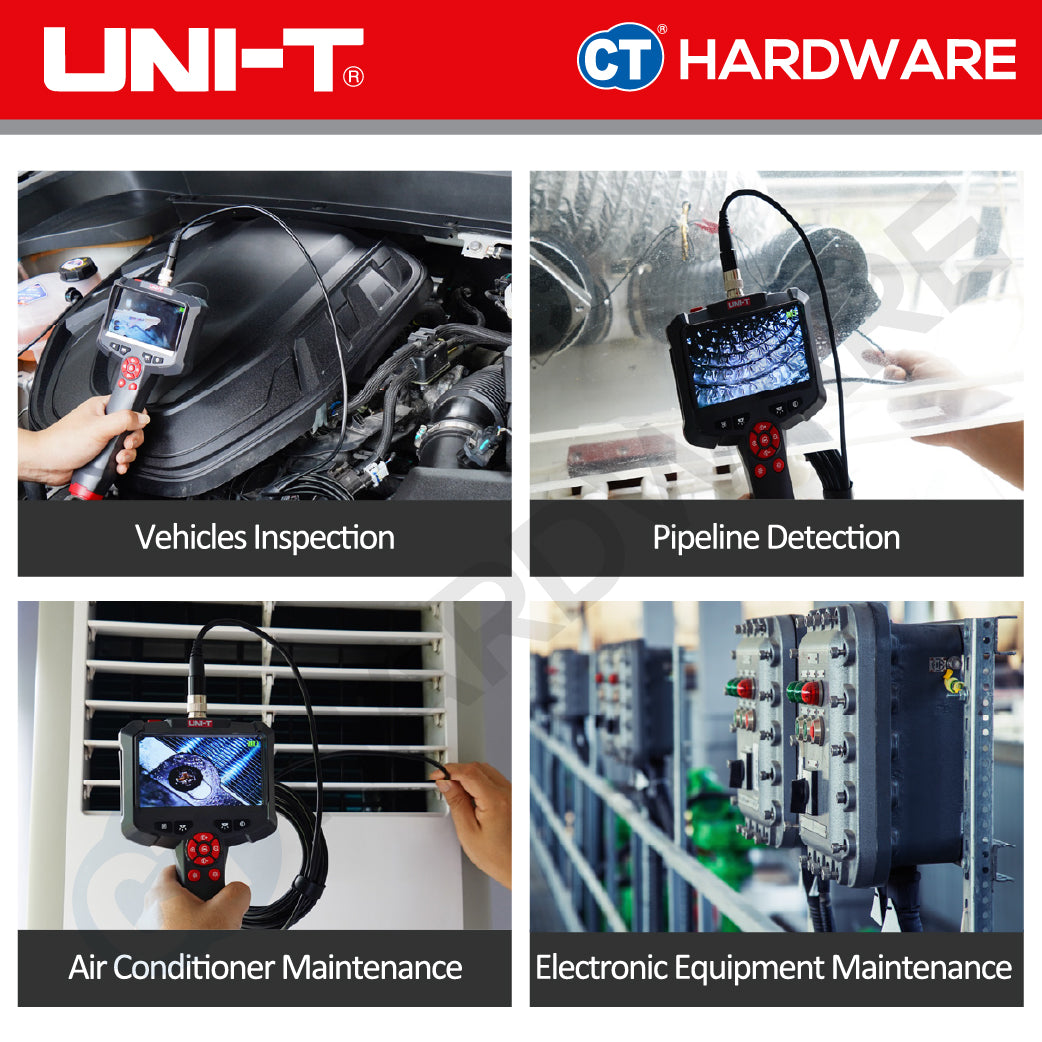

Applications

Suitable for visual inspection of:

• Automotive engines and internal vehicle components
• Pipes and pipelines
• Air-conditioning systems
• Machinery
• Industrial equipment
• Internal wall cavities

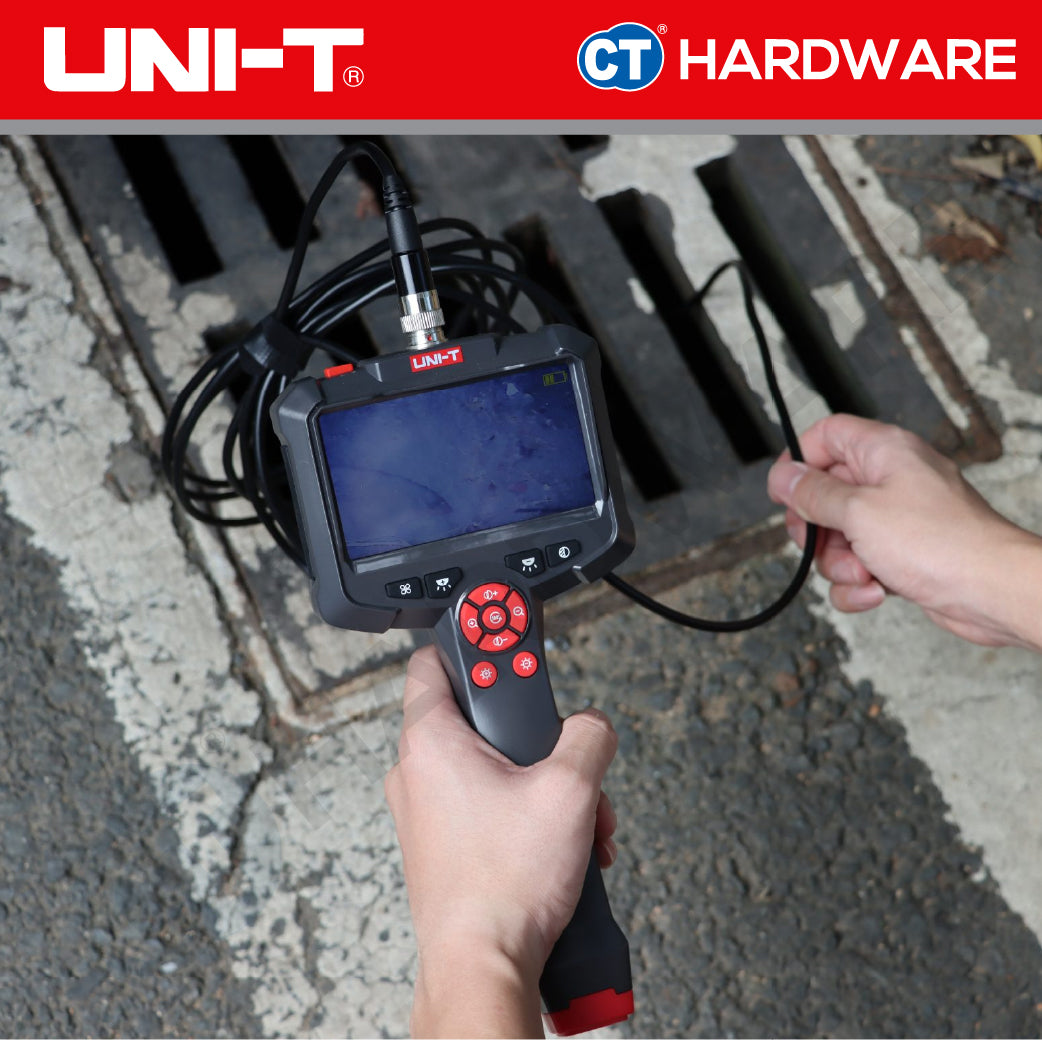

• Drain pipes
• Confined mechanical spaces
• Areas that are difficult to inspect directly
