Bosch GTC 450-13 Surface Thermal Detector -20°C~+450°C GTC45013 Thermal Camera

Features

• Visualize temperature differences in high image quality with just one click
• Quick startup, integrated laser, work light and visual camera to ensure easy use
• Robust, compact design with IP54 rating and impact resistance from falls up to 2m

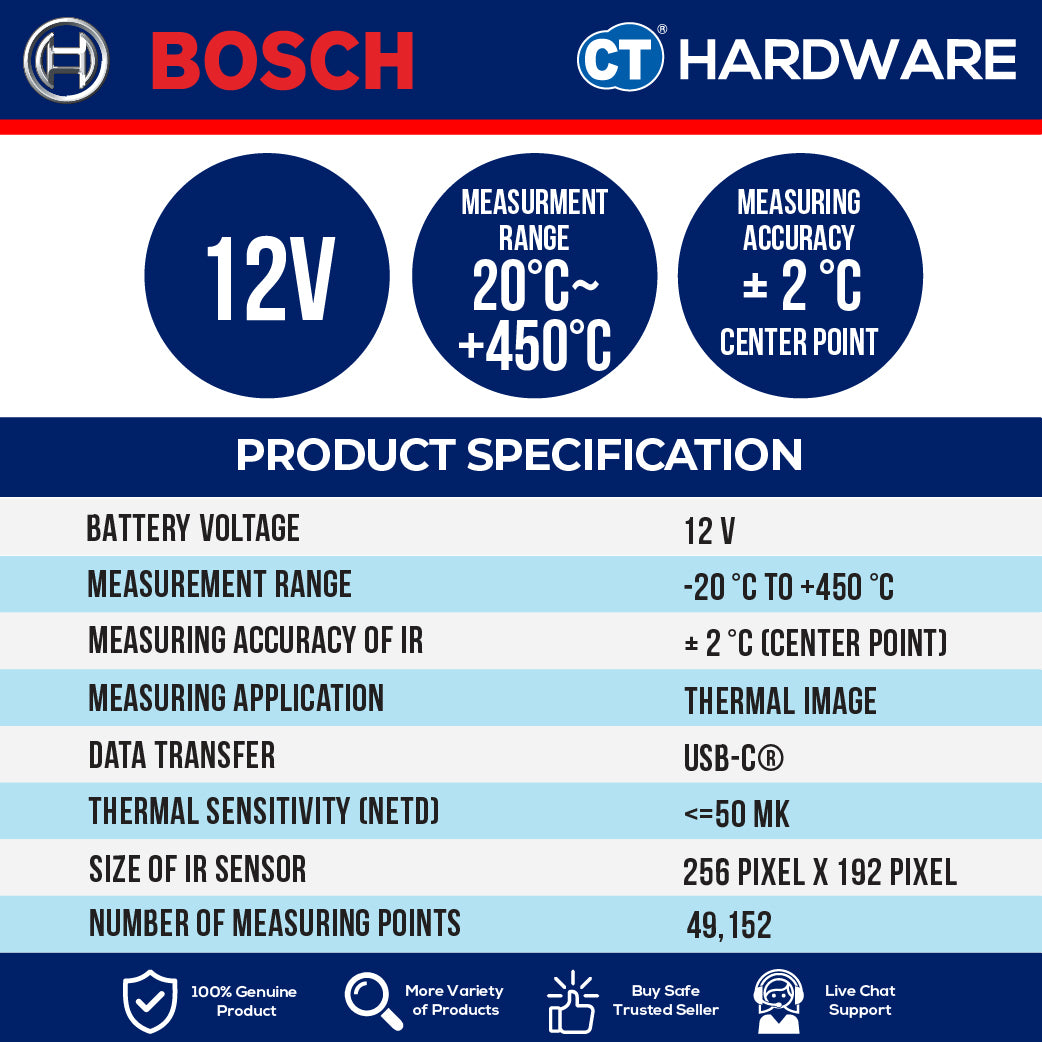

Additional data

• Battery voltage: 12.0 V
• Measurement range: -20 °C to +450 °C
• Measuring accuracy of IR: ± 2 °C (center point)
• Measuring application: Thermal image
• Data transfer: USB-C®
• Thermal sensitivity (NETD): <=50 mK
• Size of IR sensor: 256 Pixel x 192 Pixel
• Resolution: 0.1 °C
• Laser diode: Laserclass 2, 645-660 nm
• Number of measuring points: 49,152
• Field of view (FOV): 56° x 42°
• Power supply and runtime; 4 x 1.5 V LR6 (AA) 4 hours, 1 x GBA 12V 8 hours
• Frame buffer (number of images): 500
• Memory type: Internal memory
• File format of image: .jpg
• Shock protection: 2 m
• Dust and splash protection: IP54 (except for the battery or battery adapter)
• Weight: 0.35 kg
• Size of display: 2,8"
• Operating temperature: -10 – 50 °C
• Storage temperature: -20 – 50 °C
• Focus distance, minimum: 0.5 m
• Thermal image refresh rate: 9 Hz

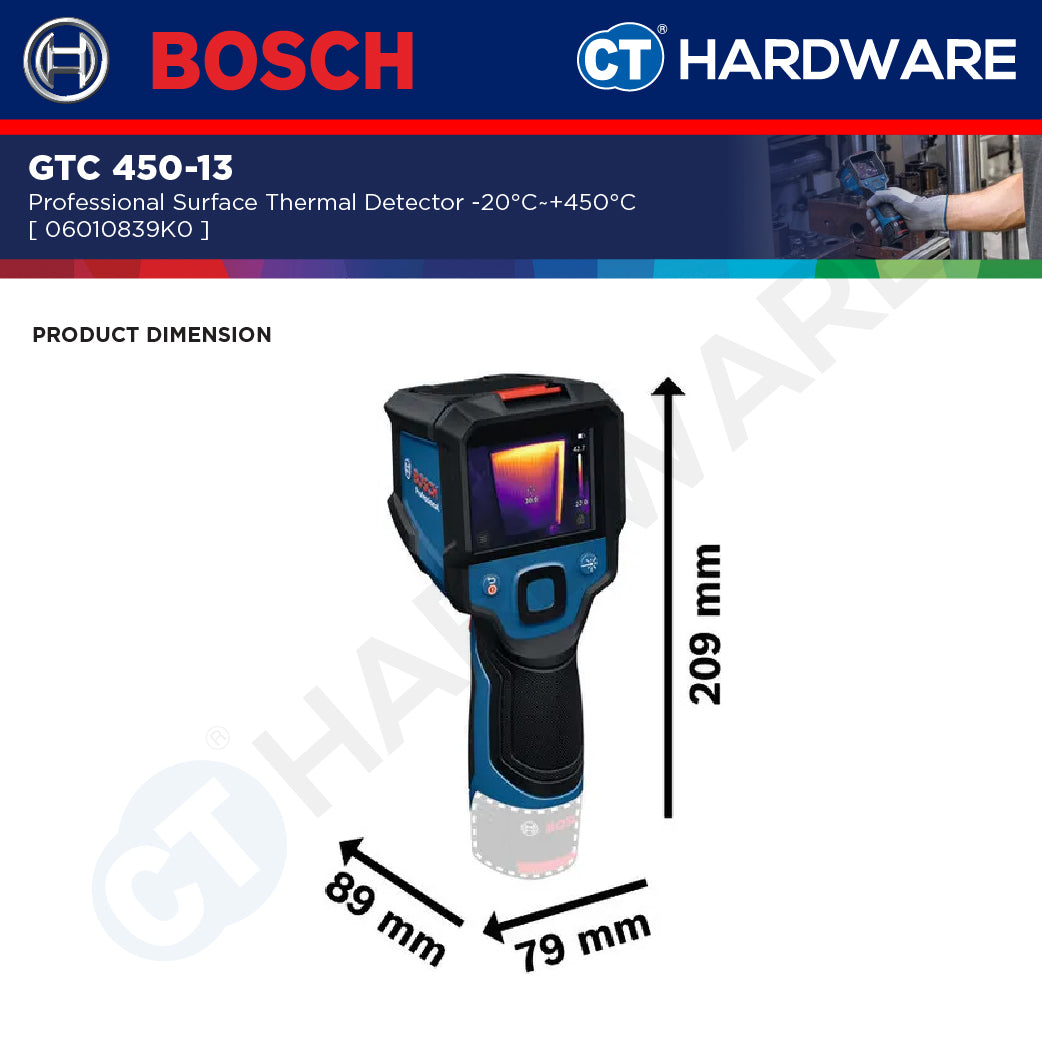

• Product Dimension (LxWxH): 79x89x209 mm


Product Highlights

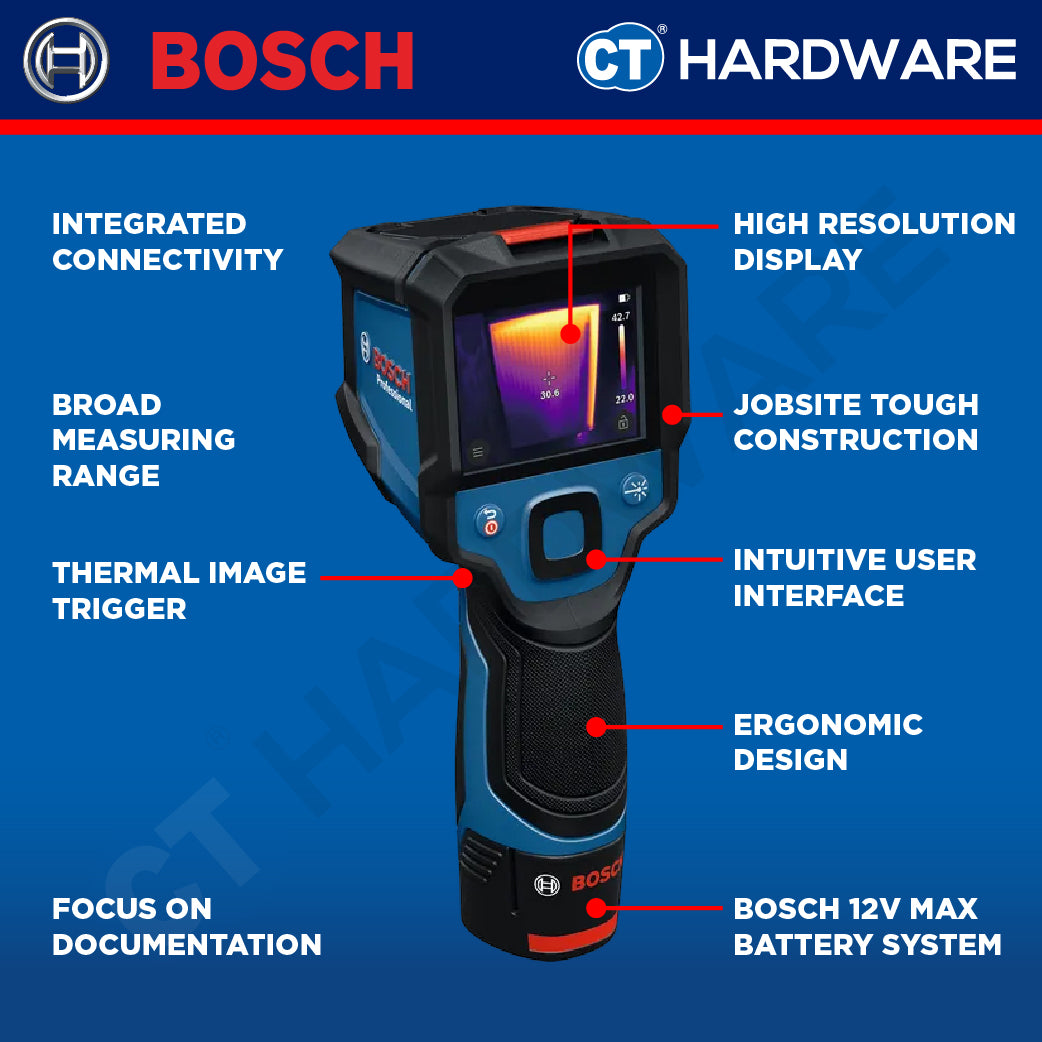

The GTC 12V-450-13 Professional thermal camera is your go-to entry-level tool for visualizing temperature differences with ease. With a 256 x 192 pixel resolution and a clear 2.8" display with full focus on the thermal image, you can quickly analysis temperature variations in a wide range of scenarios. Its compact design ensures a seamless fit in any tool bag, making it perfect for professionals. And with an IP54 rating, 2m drop resistance and a protective flap for the IR sensor, the camera is built to withstand tough jobsite conditions.

Equipment & Application

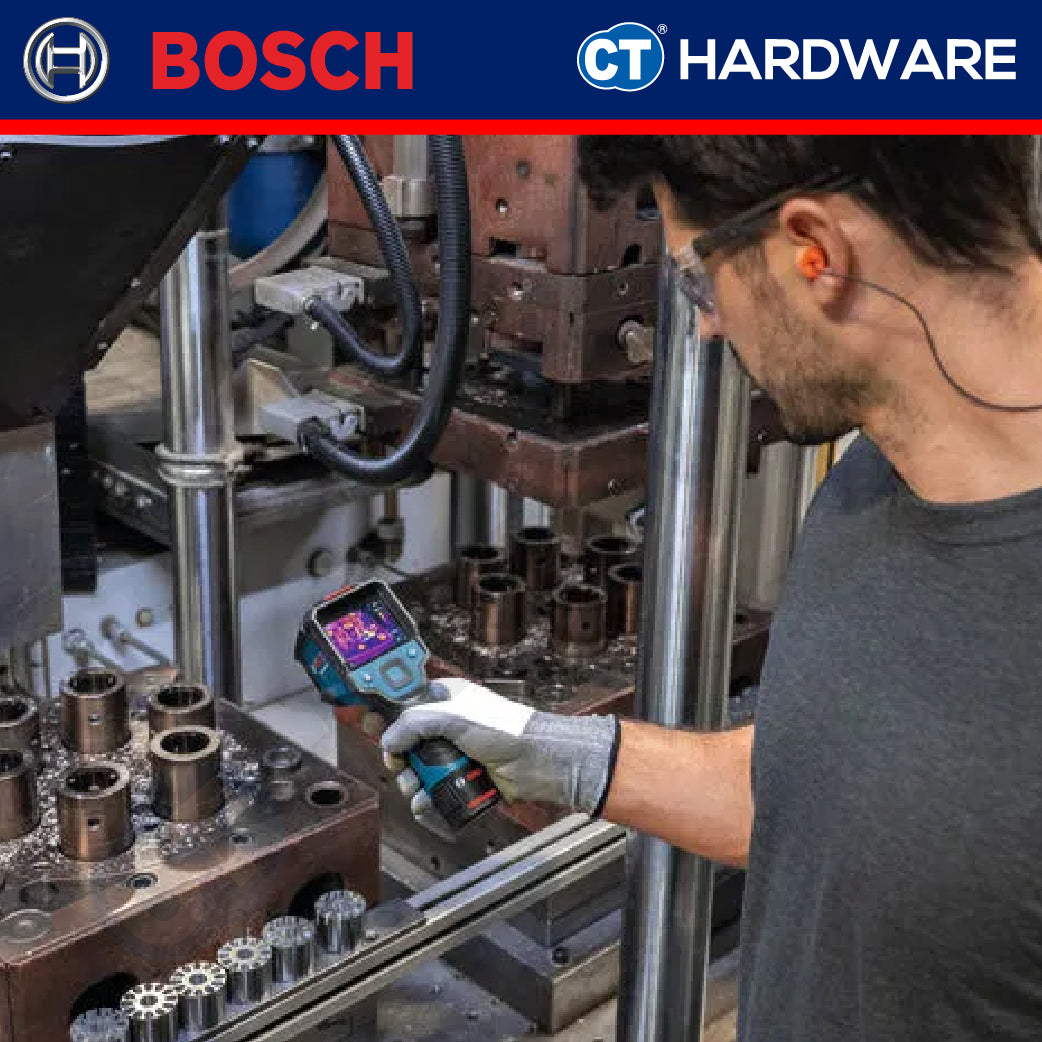

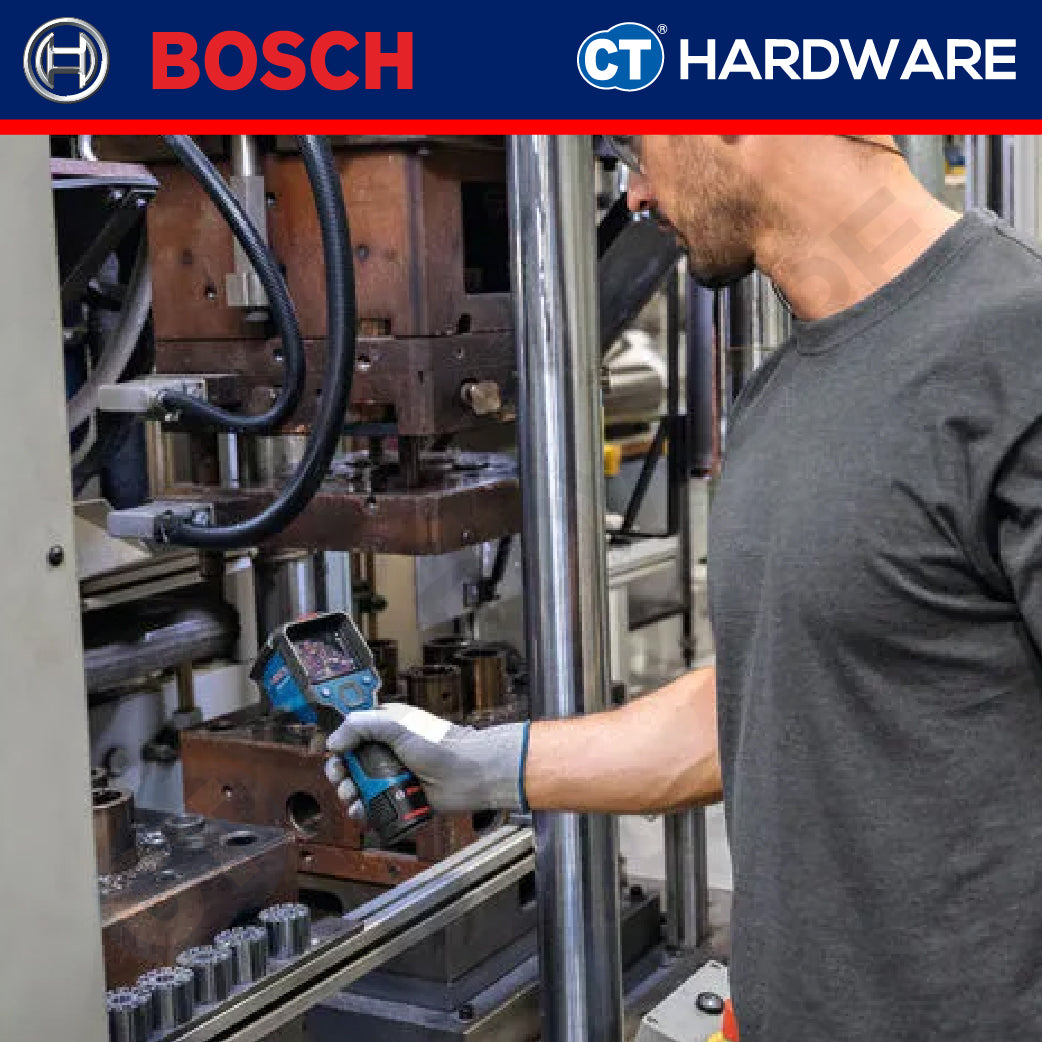

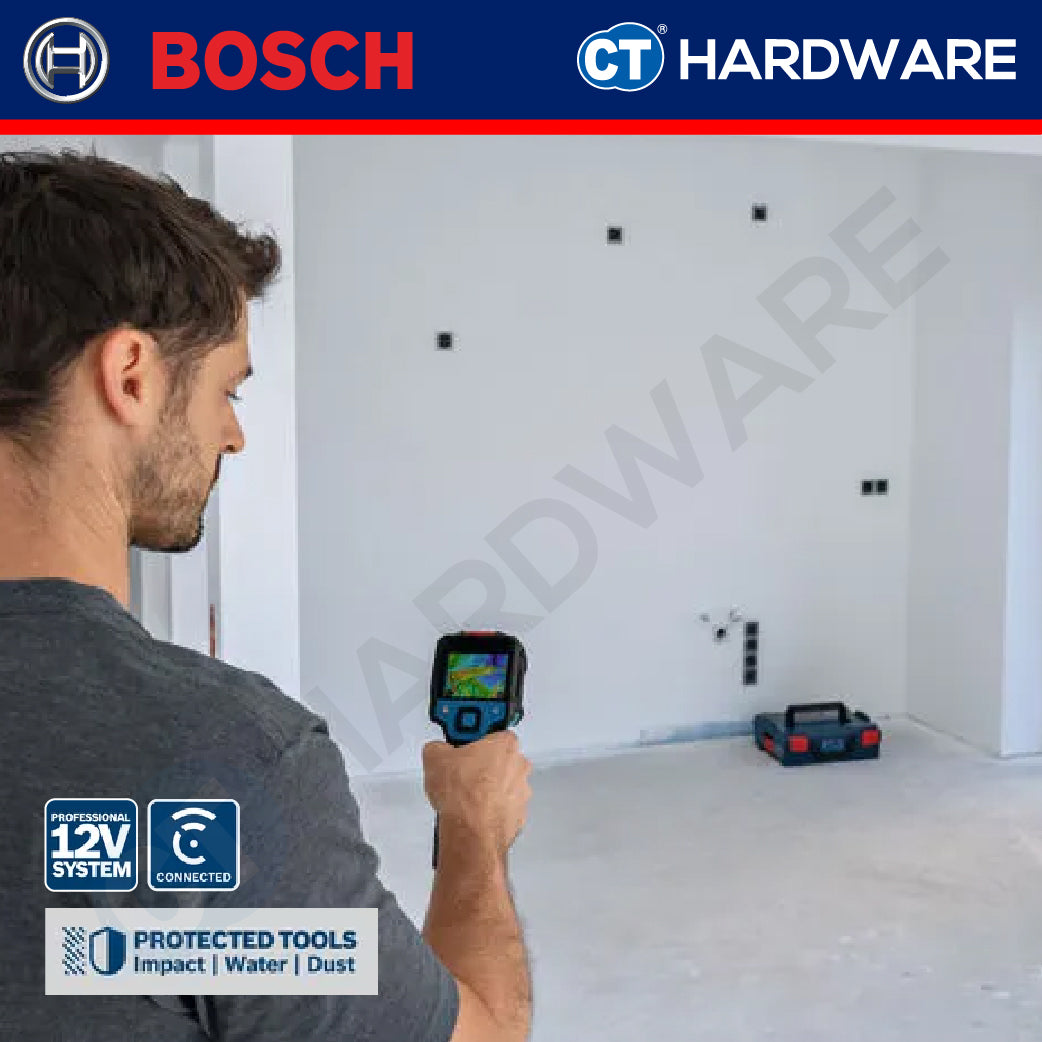

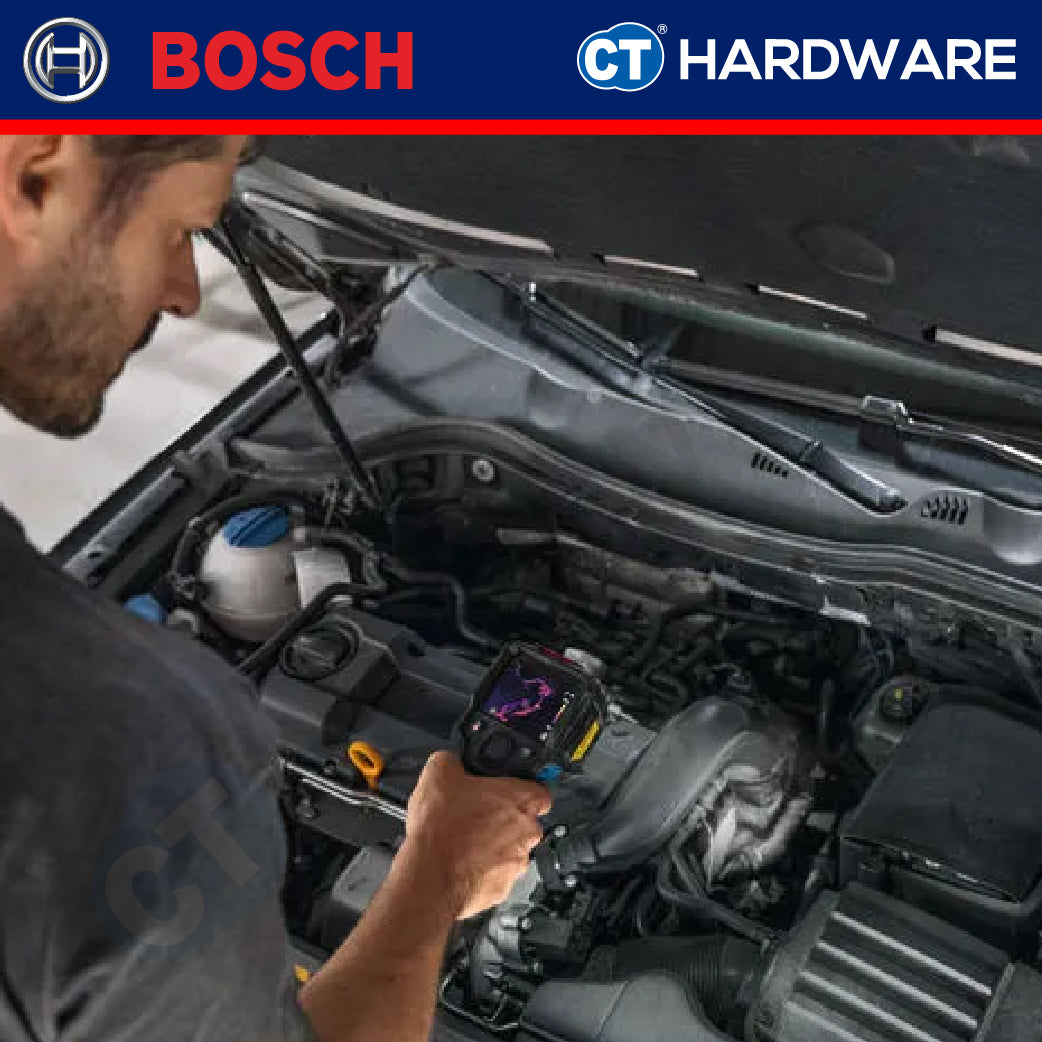

Designed for quick and efficient temperature analysis, this thermal camera starts up in just 3 seconds. The wide field of view helps you locate heating pipes, check heating and AC systems, and find issues in electrical components - especially indoors. With a user-friendly interface, work light for dark environments, laser for marking the measuring point, and visual camera for transparency and pic-in-pic functionality, this thermal camera is ideal for HVAC, industrial, automotive, and renovation tasks.

Additional Information

The GTC 12V-450-13 Professional offers dual power source flexibility, so you can switch between 12V Li-ion batteries and AA alkaline batteries to minimize downtime. The USB interface lets you seamlessly capture and transfer up to 500 images to help ensure efficiency on the job. Also compatible with accessories like the AA1 battery adapter, this thermal camera keeps you ready to tackle

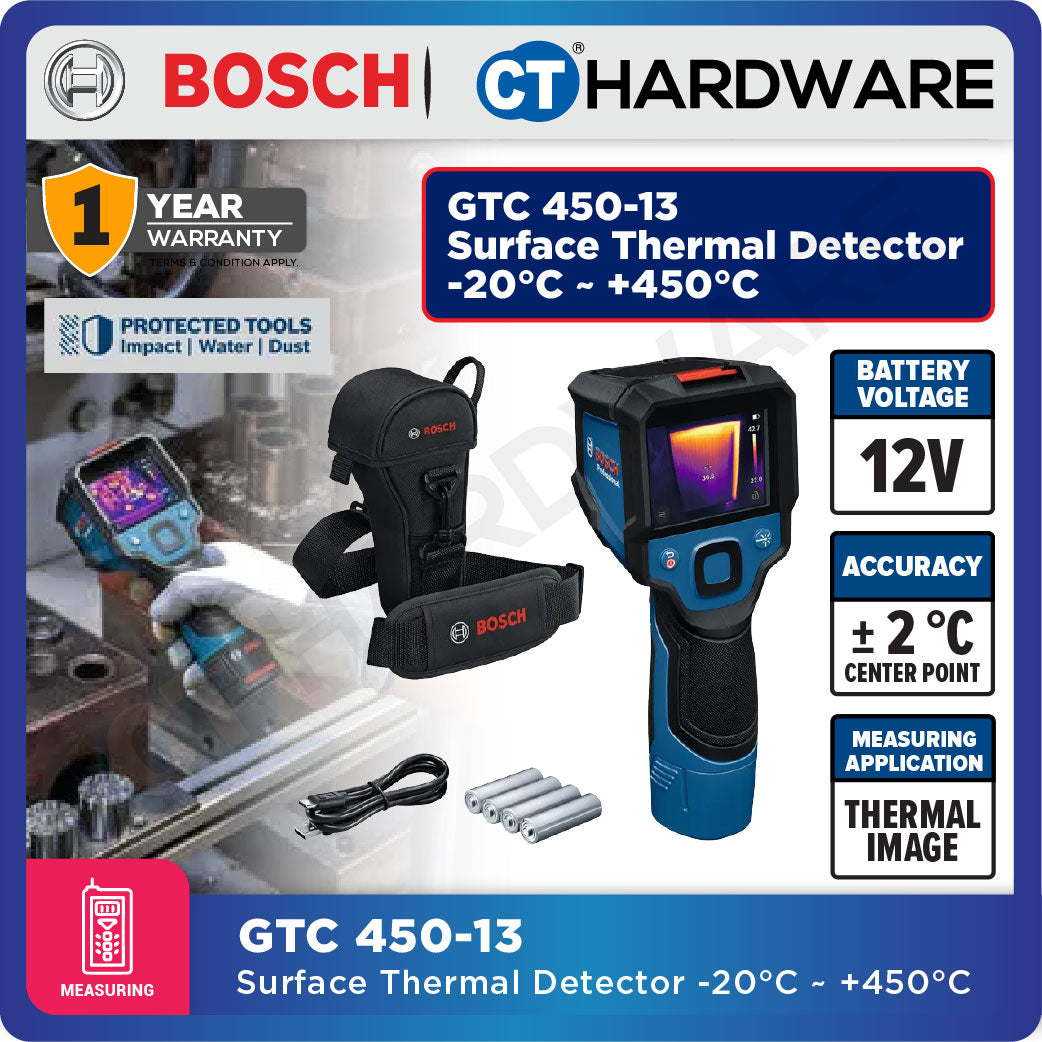

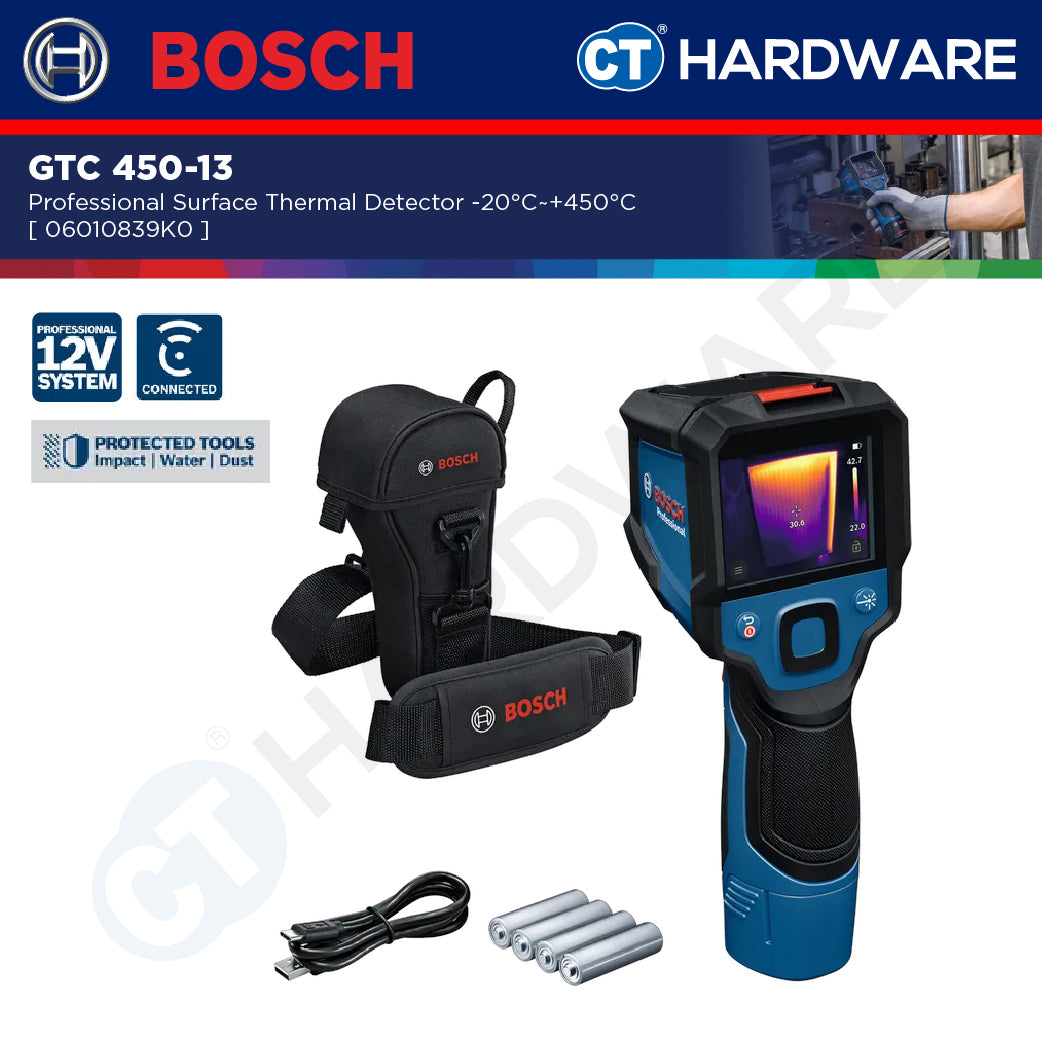

What's in the box?

• 1 x GTC 450-13 Surface Thermal Detector
• 1 x tool bag
• 4 x 1.5 V LR6 battery (AA)
• USB-C® Cable
