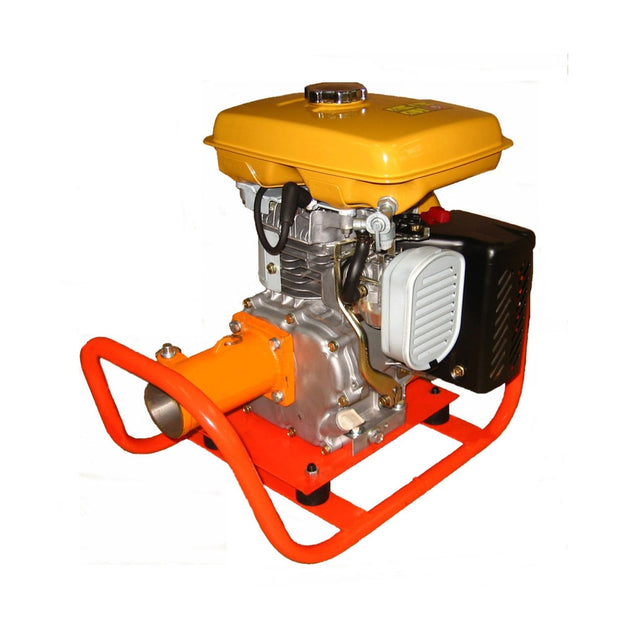

Robin 4-Stroke Petrol Engine 5HP EY20-3 with Frame & Coupling (Shaft 19mm)

Reliable power for your concrete vibrator. Ready to work out of the box.

The Robin EY20-3 is a trusted name on job sites. This set comes fully mounted on a sturdy steel frame with a coupling already fitted. Connect your vibrator shaft and you’re ready to pour.

Why contractors choose it

• Genuine Robin engine. Built for long hours and tough site conditions.
• 5HP of steady power. Strong enough to drive a concrete vibrator all day.
• Ready to use. Comes with frame and coupling installed. No extra parts to buy.
• Fits 19mm shaft. Matches standard concrete vibrator flexible shafts.
• Easy pull start. Starts quickly, even on cold mornings.
• Protective tube frame. Guards the engine from knocks and keeps it stable on uneven ground.
• Low upkeep. Air-cooled, so there’s no coolant to top up.

Great for

• Concrete vibrators (poker vibrators)
• Building and renovation sites
• Slab, column and foundation work
• Precast concrete work

Specifications

• Brand: Robin

• Model: EY20-3

• Engine type: Air-cooled, 4-stroke, single cylinder

• Engine size: 183cc

• Maximum power: 5.0HP (3.7kW) at 4000rpm

• Continuous power: 3.5HP (2.6kW) at 3600rpm

• Displacement: 183cc
• Fuel: Unleaded petrol

• Fuel tank: 3.8 litres

• Starting: Recoil (pull start)

• Coupling shaft size: 19mm

• Direction of rotation: Counterclockwise, as Viewed from P.T.O. Shaft side
• Lubricant: Automotive detergent oil (API/SE or higher grade, SAE/ 10W-30 etc.)
• Spark Plug: NGK B-6HS or BR-6HS, (CHAMPION L86C or RL86C)
• Dry Weight: 15kg
• Dimensions(LxWxH): 318 x 332 x 392 mm
• Includes: Steel tube frame + coupling

What’s in the box

• 1 x Robin EY20-3 petrol engine
• 1 x Steel tube frame (mounted)
• 1 x Coupling for 19mm shaft (fitted)

Vibrator flexible shaft and poker head sold separately.

Need a shaft or poker head to go with it? Message us and we’ll match the right size for you.
