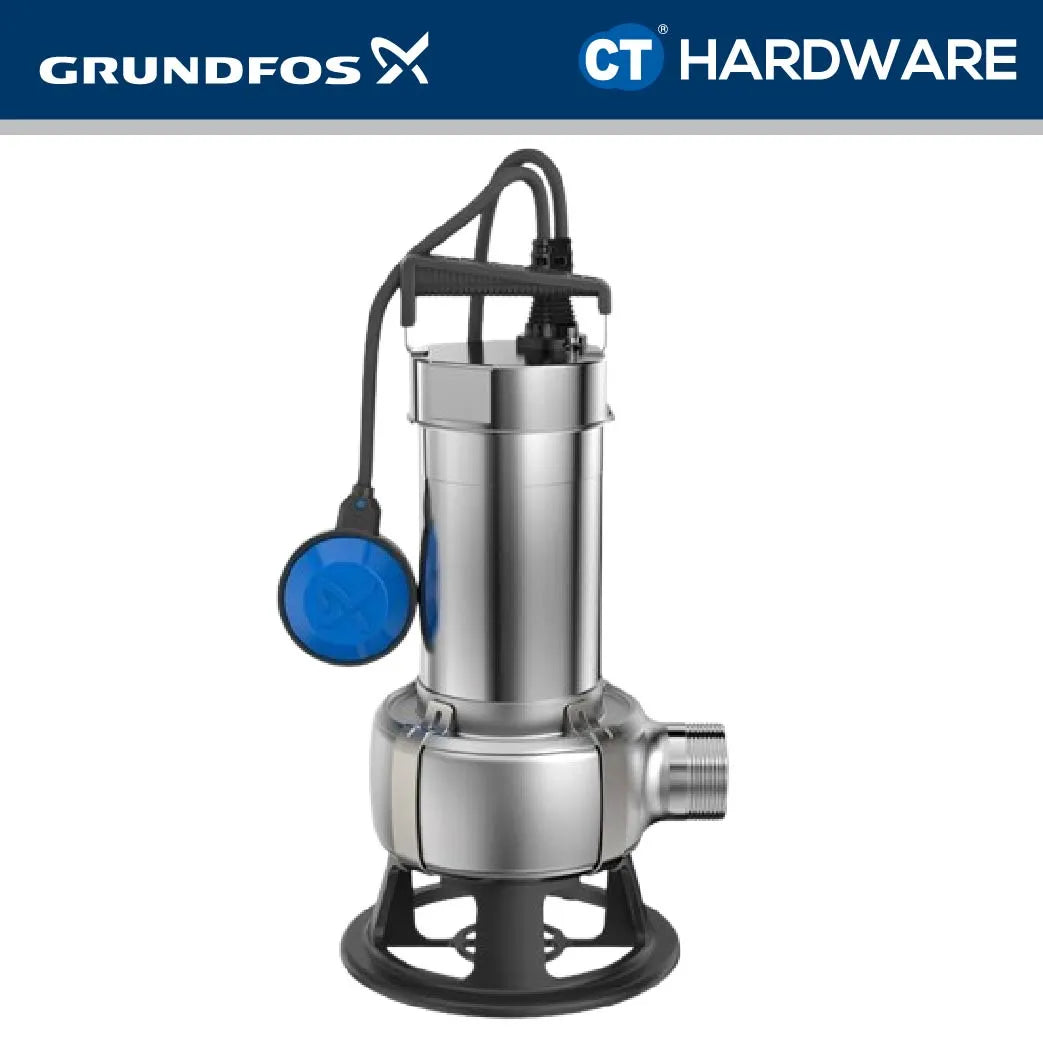

Grundfos UNILIFT AP35B5008A1 Stainless Steel Submersible Waste Water Pump with Float Switch 0.71kW

The Grundfos UNILIFT AP35B5008A1 is a robust stainless steel submersible wastewater pump engineered for efficient drainage and sewage removal. Equipped with a powerful 0.71kW motor operating at 230V, this pump delivers a high flow rate of 350 liters per minute and can lift water up to 13 meters. Its built-in float switch ensures automatic operation based on water level, optimizing performance and preventing dry running. The 2" outlet simplifies installation, making it ideal for basements, sump pits, and flooded areas.

UNILIFT AP35B is a stainless-steel submersible pump designed for pumping effluents with particles up to 35 mm. It can be installed on an auto coupling, allowing for easy maintenance and other purposes.

The impeller is a VORTEX impeller for 35 mm free passage suitable for pumping surface water, groundwater, wastewater and similar.

The pump has 2 inch discharge port and is ready for installation either free-standing or on an auto-coupling system.

Key Features

• Stainless Steel Construction:
  • Durable and corrosion-resistant for prolonged use in harsh conditions.
• Powerful Performance:
  • 0.71kW Motor delivers up to 350L/min at a maximum head of 13m.
  • Efficient operation ensures quick water removal from flooded areas.
• Automatic Float Switch:
  • Activates the pump when water reaches a preset level, ensuring efficient drainage and preventing dry running.
• High Efficiency:
  • Operates at 230V with reliable performance and energy efficiency.
  • Ready for rapid deployment in emergency drainage situations.
• Easy Installation:
  • Features a 2" outlet for simple connection to discharge hoses or pipes.
• 2 Years Warranty + 6 Months (e-register)

Benefits

• Efficient Water Removal: Quickly drains large volumes of wastewater, minimizing flood damage.
• Automatic Control: Float switch automation ensures the pump runs only when needed, extending its lifespan.
• Durability: Stainless steel components resist corrosion and wear, reducing maintenance costs.
• Versatility: Suitable for residential, commercial, and industrial drainage applications.

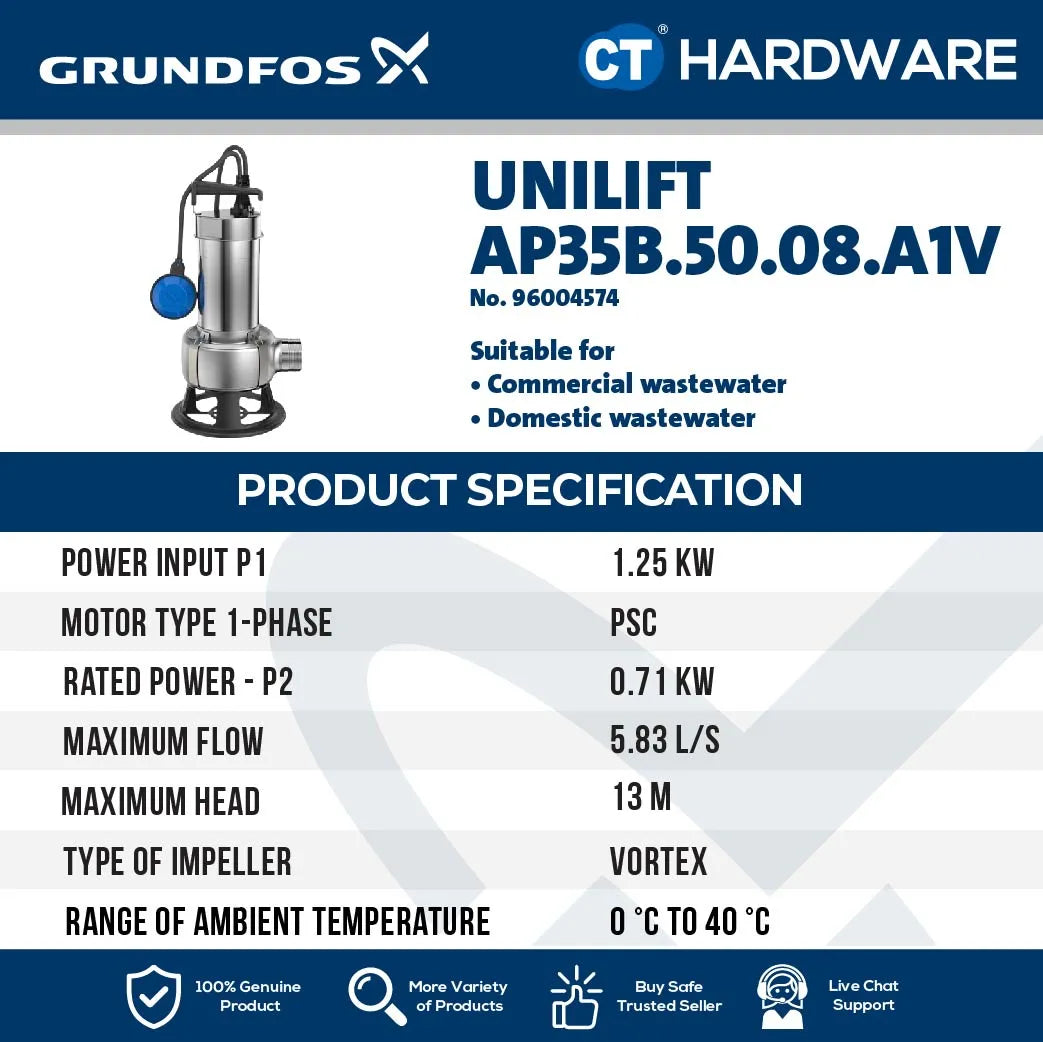

Technical Specifications

• Model: Grundfos UNILIFT AP35B.50.08.A1V
• Product Code: 99972775 (AP35B5008A1)
• Motor Power: 0.71kW (0.95 HP)
• Voltage: Single Phase (1PH), 230V, 50Hz
• Maximum Flow Rate: 350 liters per minute
• Maximum Head: 13 meters
• Maximum Particle: 35mm
• Outlet Connection: 2" BSP
• Operation: Automatic with built-in float switch
• Material:
  • Pump Housing: Stainless steel
  • Impeller: Stainless steel
• Protection Class: IP68 (suitable for submersion)
• Cable Length: 10m

Applications

• Basement Flooding: Efficiently removes large volumes of water from flooded basements.
• Sump Pit Drainage: Automatically drains water from sump pits to prevent overflow.
• Construction Sites: Ideal for dewatering excavations, trenches, and other construction-related tasks.
• Industrial and Commercial Drainage: Manages wastewater in factories and commercial buildings, preventing flooding.
• General Sewage Removal: Handles grey wastewater and sewage containing solids up to 35mm.

Installation Guidelines

• Location: Install in a location where the pump can be fully submerged in the water to be removed. Position the pump at the bottom of the sump pit or flooded area, ensuring the float switch is free to move without obstructions.
• Mounting: Ensure the pump is fully submerged during operation.
• Connection: Connect the 2" outlet to appropriate discharge piping, ensuring secure and leak-free connections.
• Electrical Connection: Must be connected to a suitable power supply by a qualified electrician, adhering to local electrical codes and safety standards. Verify that the float switch activates the pump automatically as water reaches the switch.
• Operation:
  • Automatic: The built-in float switch will start and stop the pump based on wastewater level.
  • Safety: Ensure the pump is properly grounded and protected by a Residual Current Device (RCD).
• Maintenance: Regularly inspect and clean the pump and float switch. Check for debris in the inlet and outlet, and ensure the pump's stainless steel components remain corrosion-free.

Why Choose the UNILIFT AP35B.50.08.A1V?

• Trusted Brand: Grundfos is a global leader in pump technology, known for quality and innovation.
• Efficient Drainage: High flow rate and powerful lifting capacity quickly mitigate flooding and water damage.
• Automatic Operation: Built-in float switch offers hands-free operation, reducing manual intervention and ensuring prompt water removal.
• Durable Construction: Stainless steel build withstands corrosive environments and heavy usage, minimizing maintenance costs.
• Easy to Use: Automatic operation and straightforward installation make it user-friendly.

Order Yours Today

Ensure efficient and reliable drainage and wastewater management with the Grundfos UNILIFT AP35B5008A1 Stainless Steel Submersible Waste Water Pump with Float Switch. Ideal for domestic, commercial, and industrial applications, this pump delivers robust performance and peace of mind. Order now and invest in a long-lasting solution for your wastewater needs.
