WORCRAFT MMA-200DS Inverter Welding Machine With Set | 7.3KVA | 20-200AMP (PORTABLE TYPE) | Mesin Kimpal Inverter

WORCRAFT MMA-200DS Inverter Welding Machine With Set | 7.3KVA | 20-200AMP (PORTABLE TYPE) | Mesin Kimpal Inverter

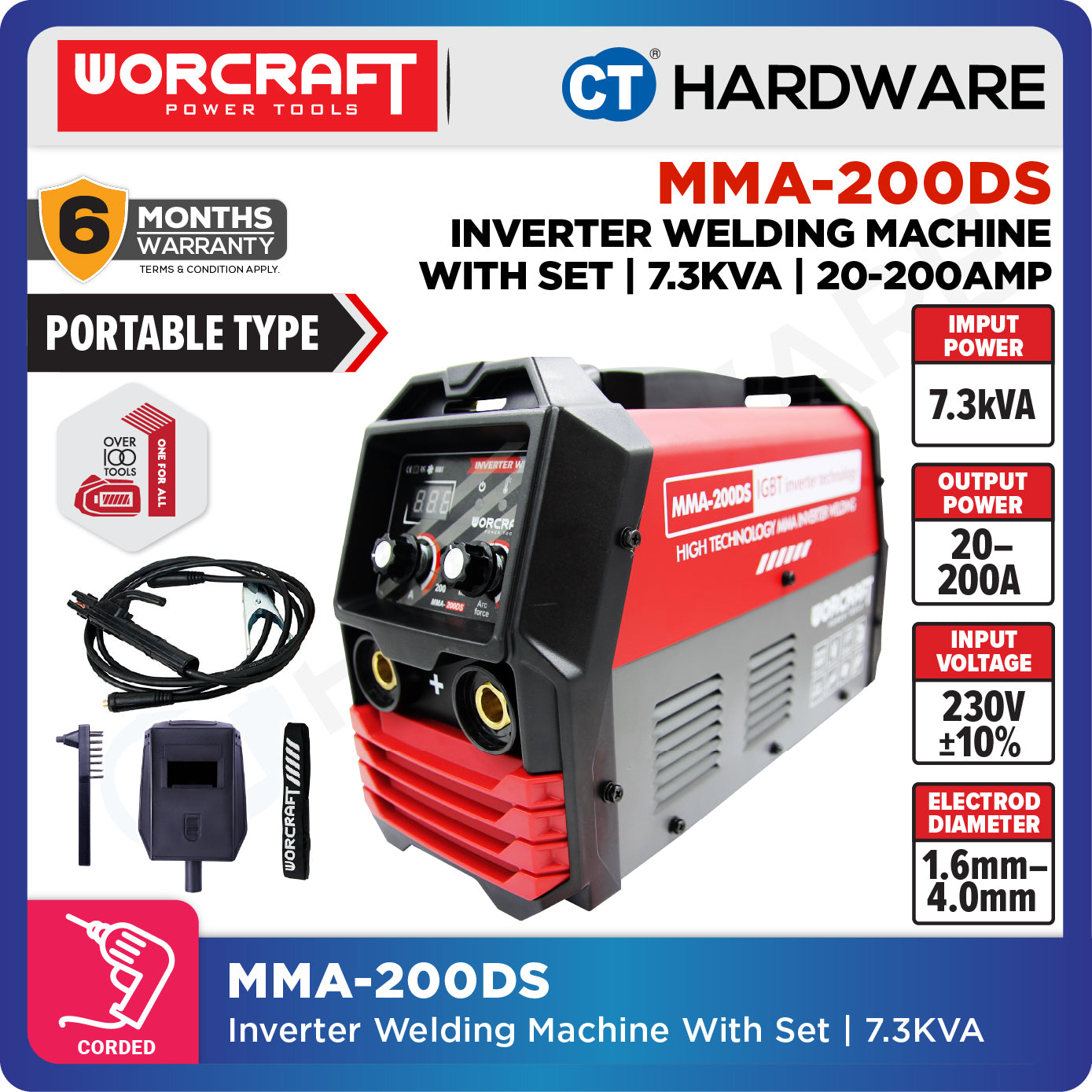

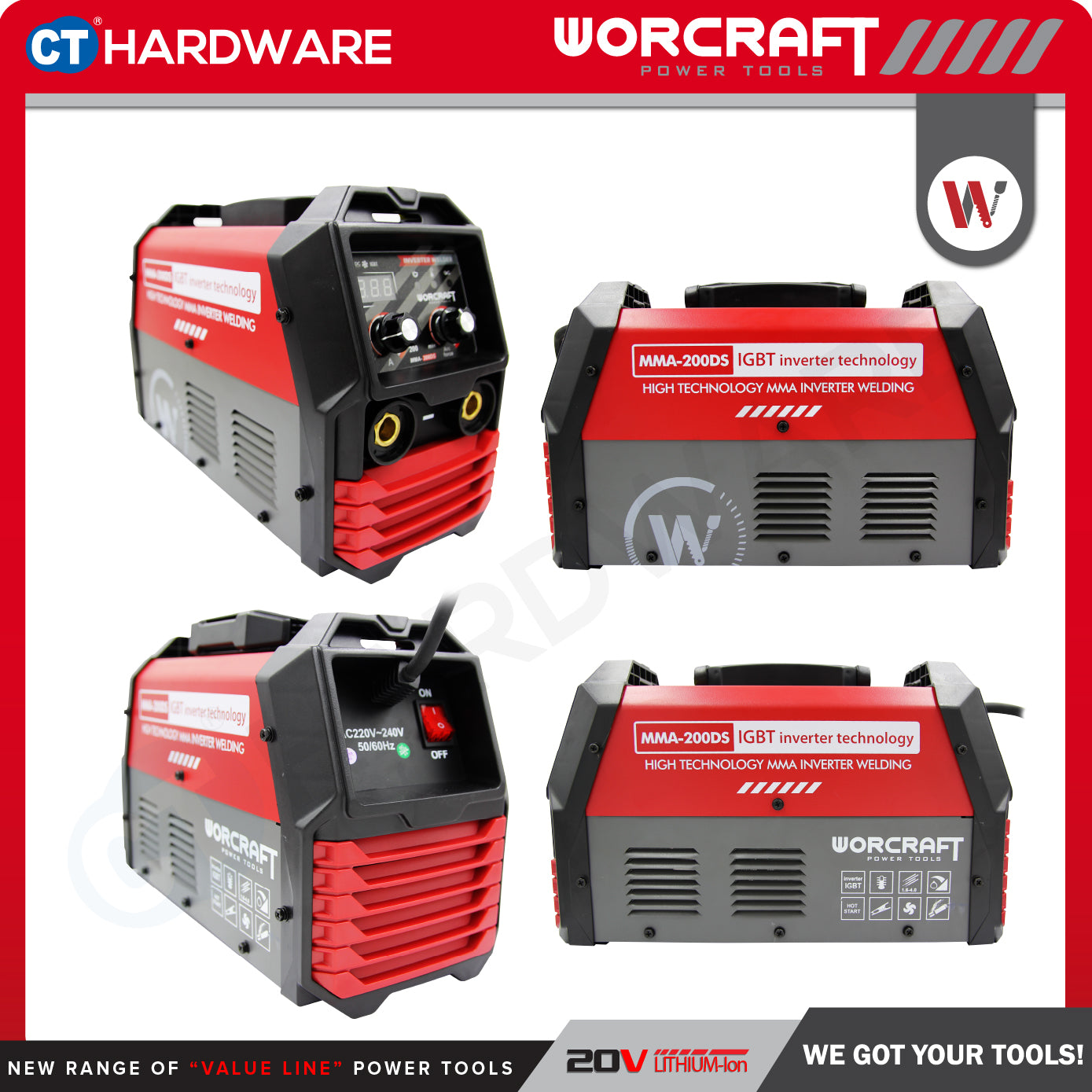

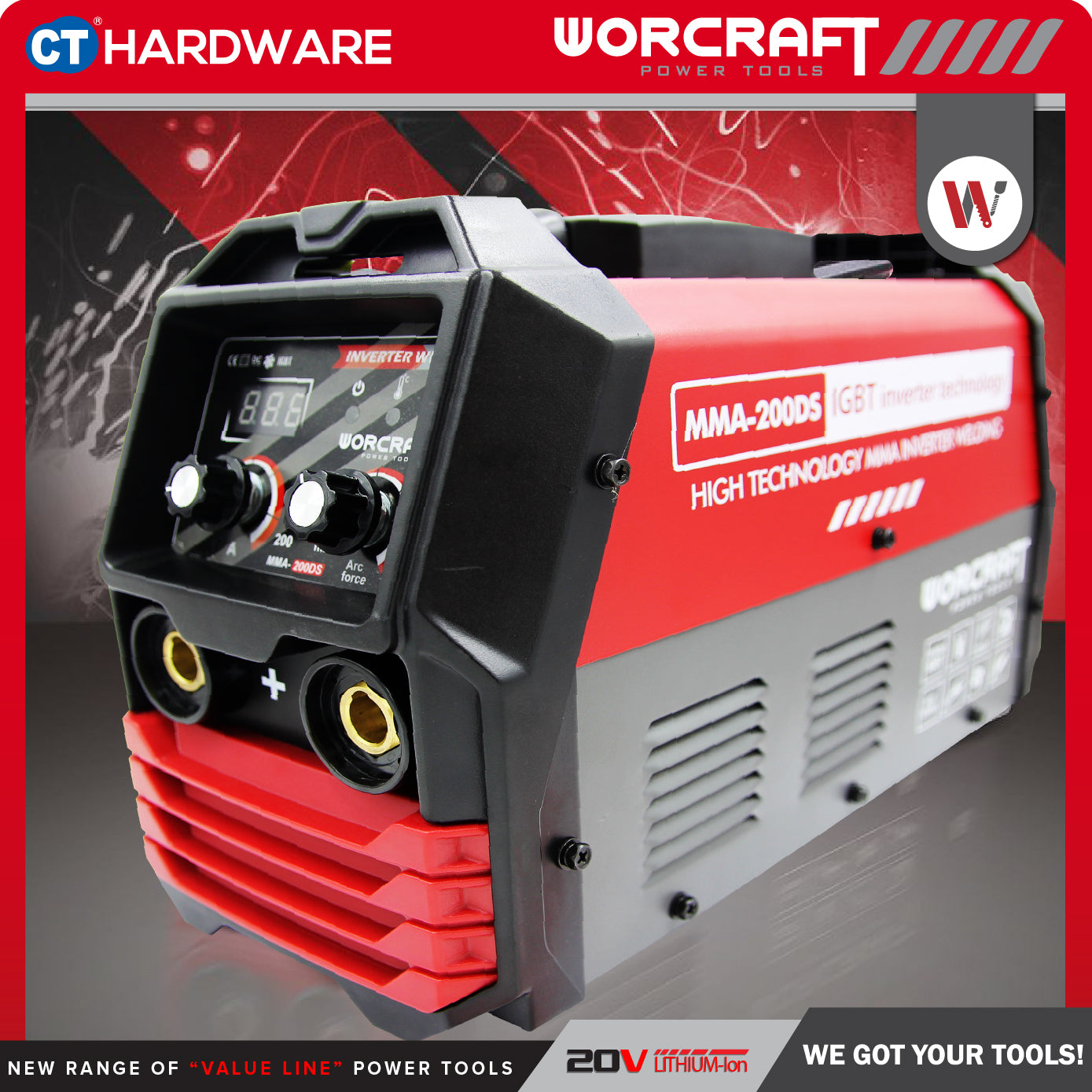

Welding inverter WORCRAFT MMA-200DS

Compact and powerful tool for manual arc welding (MMA), intended for repair, maintenance and various works at home, in the garage or on small construction sites.

Thanks to modern IGBT technology, it provides a stable arc and light ignition, which makes it ideal for welding mild and stainless steel.

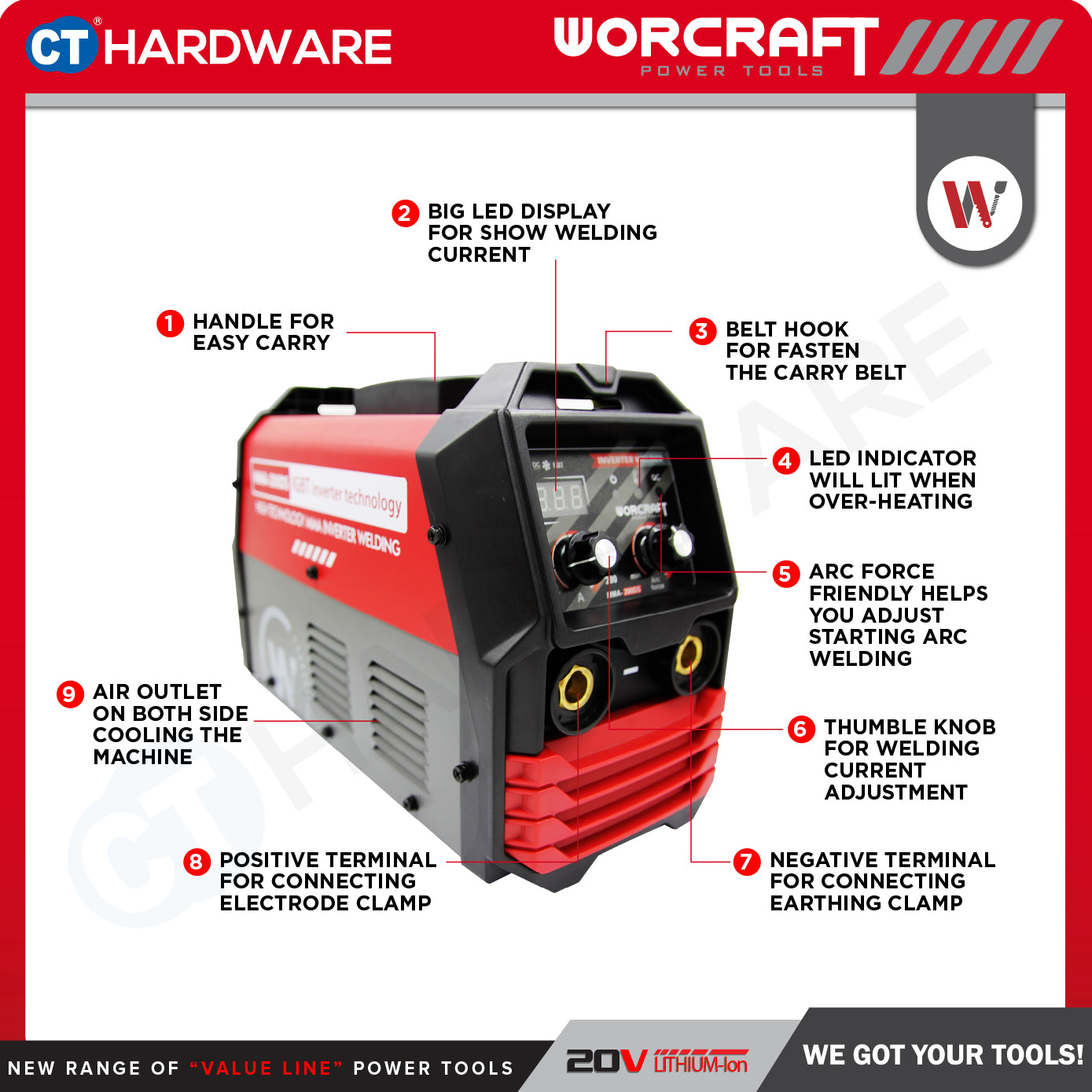

The digital display on the front panel will help you quickly adjust the welding current for the selected type of work.

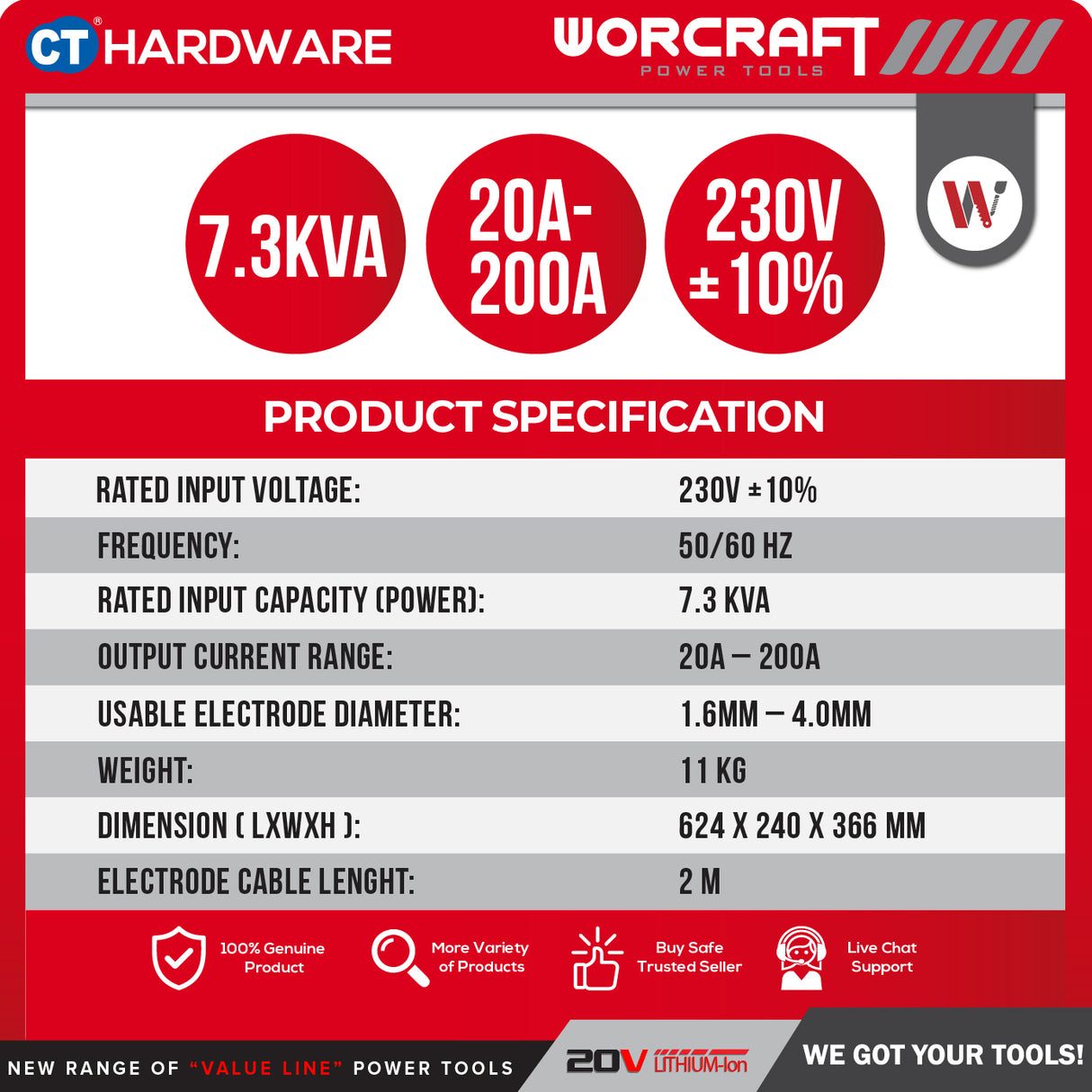

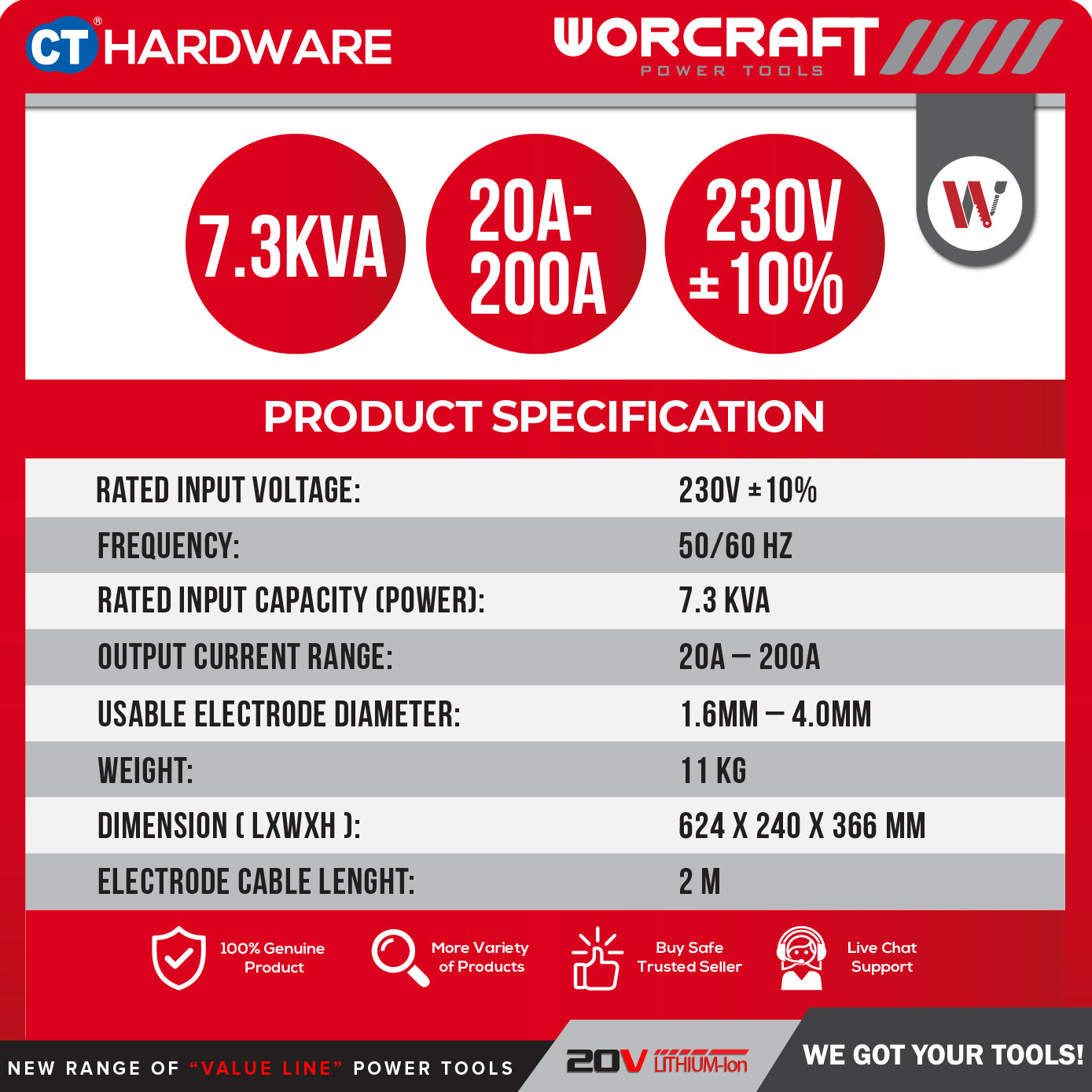

Basic parameters

Power 9.5 kW

Current range 20–200 A

Duty cycle 30%

The diameter of the electrodes is 1.6–4.0 mm

The length of the electrode holder cable is 2 m

Functionality

IGBT inverter technology provides a stable arc, easy ignition and energy efficiency.

A wide range of current regulation from 20 to 200 A allows you to precisely adjust the parameters for different materials and metal thickness.

Compatibility with electrodes 1.6–4.0 mm suitable for welding mild and stainless steel, cast iron and other metals.

The duty cycle at maximum power is 30%.

Convenience and comfort of work

The current regulator provides easy adjustment even for beginners.

The compact design and light weight allow you to conveniently carry the inverter to different objects.

The built-in ventilation system prevents overheating during prolonged operation.

The cable with the electrode holder is 2 m long, the cable with the grounding clamp is 1.2 m.

The protective shield in the set provides basic protection in the event of a fight.

Maximum automation and stability of the welding process

HOT START – rapid ignition of the arc — automatic increase of the welding current to ensure the appearance of a stable arc at the beginning of welding work.

ARC FORCE - arc flashover - a short-term increase in the welding current to prevent the arc from breaking. This function greatly facilitates the welding of seams in a vertical and horizontal position.

ANTI-STICK – anti-sticking of the electrode — sharp reduction of the welding current, if the arc did not ignite at the initial moment when the electrode touched the product, as well as at the moment of sticking of the electrode during welding, in order to avoid overheating.

Reliability and durability

The durable shock-resistant case provides reliable protection of internal components from external mechanical impact.

IGBT technology and high-quality cables ensure a long service life.

Insulation class F withstands operation at a temperature of up to 155°C. The protection class of the device is IP21S.

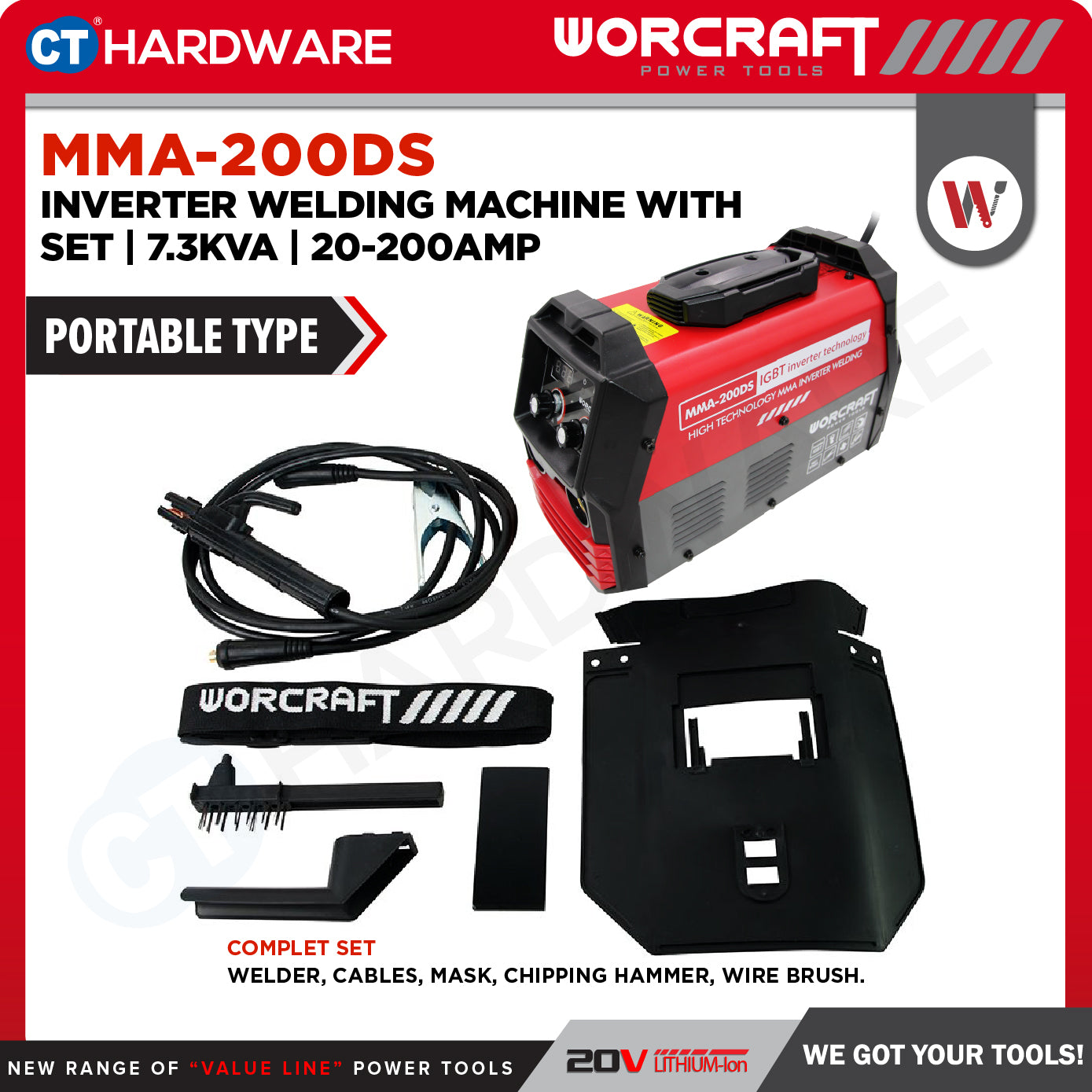

Complete set

inverter welding machine WORCRAFT MMA-200DS;

cable with electrode holder 2 m;

cable with grounding clamp 1.2 m;

hammer for removing slag - 1 pc.;

welding shield - 1 pc.;

operating instructions;

warranty card.
